JIS 5K Angle Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN400
- Pressure Class
- 5K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7306, JIS F7354
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2239
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt Nut
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(11 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Oxn (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 100 | 230 | 160 | 130 | 105 | Ø15x4 | 9.5 kg |
| DN65 | 115 | 270 | 180 | 155 | 130 | Ø15x4 | 13 kg |
| DN80 | 130 | 280 | 200 | 180 | 145 | Ø19x4 | 19.3 kg |
| DN100 | 150 | 305 | 220 | 200 | 165 | Ø19x8 | 23.5 kg |
| DN125 | 170 | 355 | 250 | 235 | 200 | Ø19x8 | — |
| DN150 | 190 | 390 | 300 | 265 | 230 | Ø19x8 | — |
| DN200 | 220 | 485 | 400 | 320 | 280 | Ø23x8 | — |
| DN250 | 275 | 540 | 400 | 385 | 345 | Ø23x12 | — |
| DN300 | 310 | 610 | 500 | 430 | 390 | Ø23x12 | — |
| DN350 | 360 | 690 | 500 | 480 | 435 | Ø25x12 | — |
| DN400 | 395 | 770 | 630 | 540 | 495 | Ø25x16 | — |

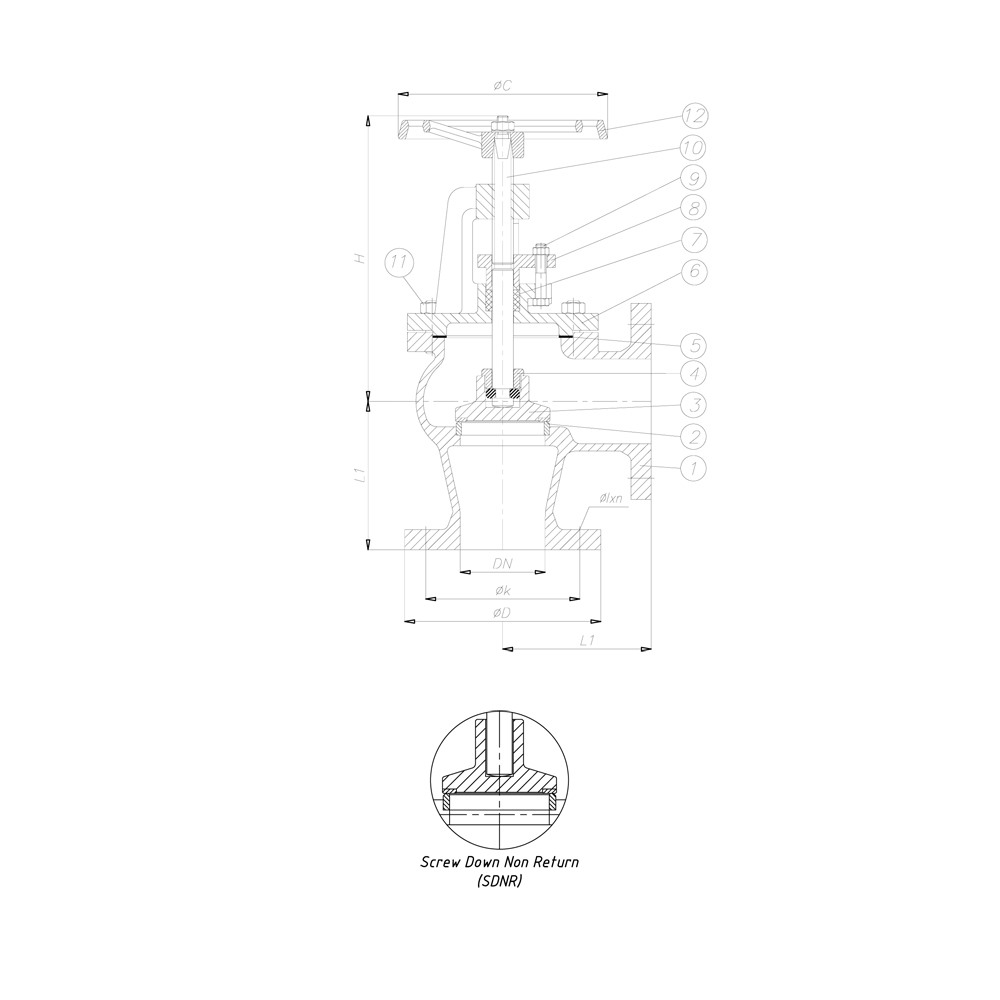

Technical drawings(1 page)
Operating media
Typical applications
- Aboard ships
- Marine hot and cold water systems
- Marine oil systems
- Marine steam systems
Actuation options
Features
- Angle pattern globe valve body configuration
- Available as STOP (JIS F7306) or Screw Down Non Return / SDNR (JIS F7354) variant
- Graphite packing for gland seal
- Klingerite bonnet gasket
- Multiple body material options: grey cast iron, ductile cast iron, and cast carbon steel
Description
An angle globe valve designed to JIS F7306 (STOP) and JIS F7354 (SDNR - Screw Down Non Return) standards, rated at 5K pressure. Available in sizes DN50 to DN400 with JIS B2239 5K flanged ends, intended for marine applications handling hot and cold water, oil, and steam.
Selection notes
This globe valve is a angle type, marine and screw down non return (sdnr) pattern, supplied for flanged installation.
Sizes run DN50 to DN400, in 5K.
The body is offered in GG 25, GGG 40 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze Rg5, 13Cr and SS 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, hot water, cold water, oil and steam.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7306, JIS F7354, JIS F7400 and JIS B2239.
