JIS 10K Cast Iron Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- 10K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7364
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240-10K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Gland
- Indicator
- Stem Nut
- Stud Nut
- Stuffing Box
- Wedge Ring
Dimensions per size(14 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Weight |
|---|---|---|---|---|---|---|
| DN50 | 180 | 235 | 160 | 155 | 120 | — |
| DN65 | 190 | 260 | 160 | 175 | 140 | — |
| DN80 | 200 | 290 | 200 | 185 | 150 | — |
| DN100 | 230 | 310 | 220 | 210 | 175 | — |
| DN125 | 250 | 435 | 250 | 250 | 210 | — |
| DN150 | 270 | 455 | 250 | 280 | 240 | — |
| DN200 | 290 | 580 | 300 | 330 | 290 | — |
| DN250 | 330 | 720 | 400 | 400 | 355 | — |
| DN300 | 370 | 815 | 400 | 445 | 400 | — |
| DN350 | 410 | 925 | 520 | 490 | 445 | — |
| DN400 | 470 | 1030 | 520 | 560 | 510 | — |
| DN450 | 500 | 1075 | 520 | 620 | 565 | — |
| DN500 | 550 | 1265 | 600 | 675 | 620 | — |
| DN600 | 660 | 1300 | 600 | 795 | 730 | — |

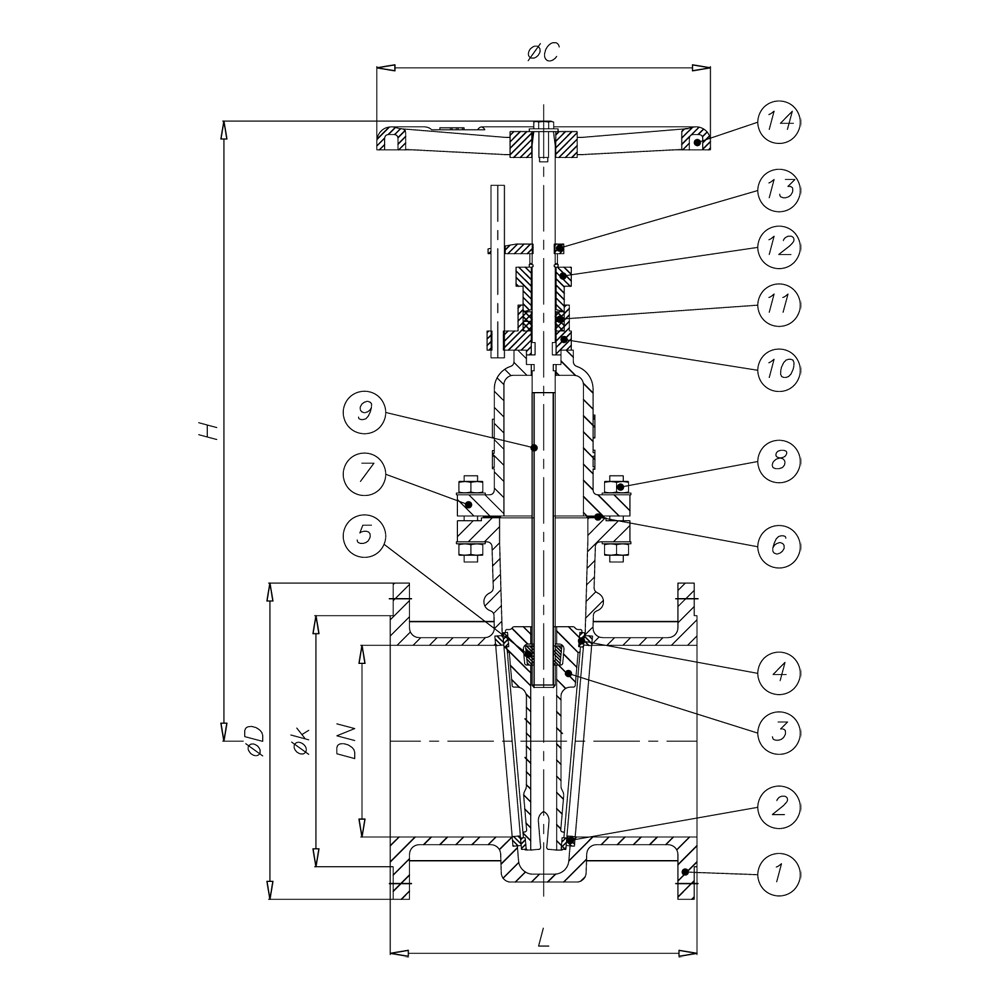

Technical drawings(1 page)
Operating media
Typical applications
- water
- air
- gas
- oil
Actuation options
Description
A cast iron gate valve designed to JIS F7364, rated at 10K pressure class. Available in sizes DN50 to DN600 with flanged ends conforming to JIS B2240-10K. Suitable for water, air, gas, and oil applications.
Selection notes
This gate valve is a cast iron pattern, supplied for flanged installation.
Sizes run DN50 to DN600, in 10K.
The body is offered in GG25 and GGG40, so the grade can be matched to the service rather than the other way round.
Seat and trim options are SS420 and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, air, gas and oil.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7364, JIS F7400 and JIS B2240-10K.
