JIS 10K Cast Steel Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN500
- Pressure Class
- 10K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7360, JIS F7366
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2220-10K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Gland
- Indicator
- Stem Nut
- Stud Nut
- Stuffing Box
- Wedge Ring
Dimensions per size(13 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Øxn (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 200 | 235 | 160 | 155 | 120 | Ø19x4 | — |
| DN65 | 220 | 260 | 160 | 175 | 140 | Ø19x4 | — |
| DN80 | 230 | 290 | 200 | 185 | 150 | Ø19x8 | — |
| DN100 | 250 | 310 | 220 | 210 | 175 | Ø19x8 | — |
| DN125 | 270 | 435 | 250 | 250 | 210 | Ø23x8 | — |
| DN150 | 290 | 455 | 250 | 280 | 240 | Ø23x8 | — |
| DN200 | 310 | 580 | 300 | 330 | 290 | Ø23x12 | — |
| DN250 | 340 | 720 | 400 | 400 | 355 | Ø25x12 | — |
| DN300 | 380 | 815 | 400 | 445 | 400 | Ø25x16 | — |
| DN350 | 420 | 925 | 520 | 490 | 445 | Ø25x16 | — |
| DN400 | 480 | 1030 | 520 | 560 | 510 | Ø27x16 | — |
| DN450 | 450 | 1075 | 520 | 620 | 565 | Ø27x20 | — |
| DN500 | 500 | 1265 | 600 | 675 | 620 | Ø27x20 | — |

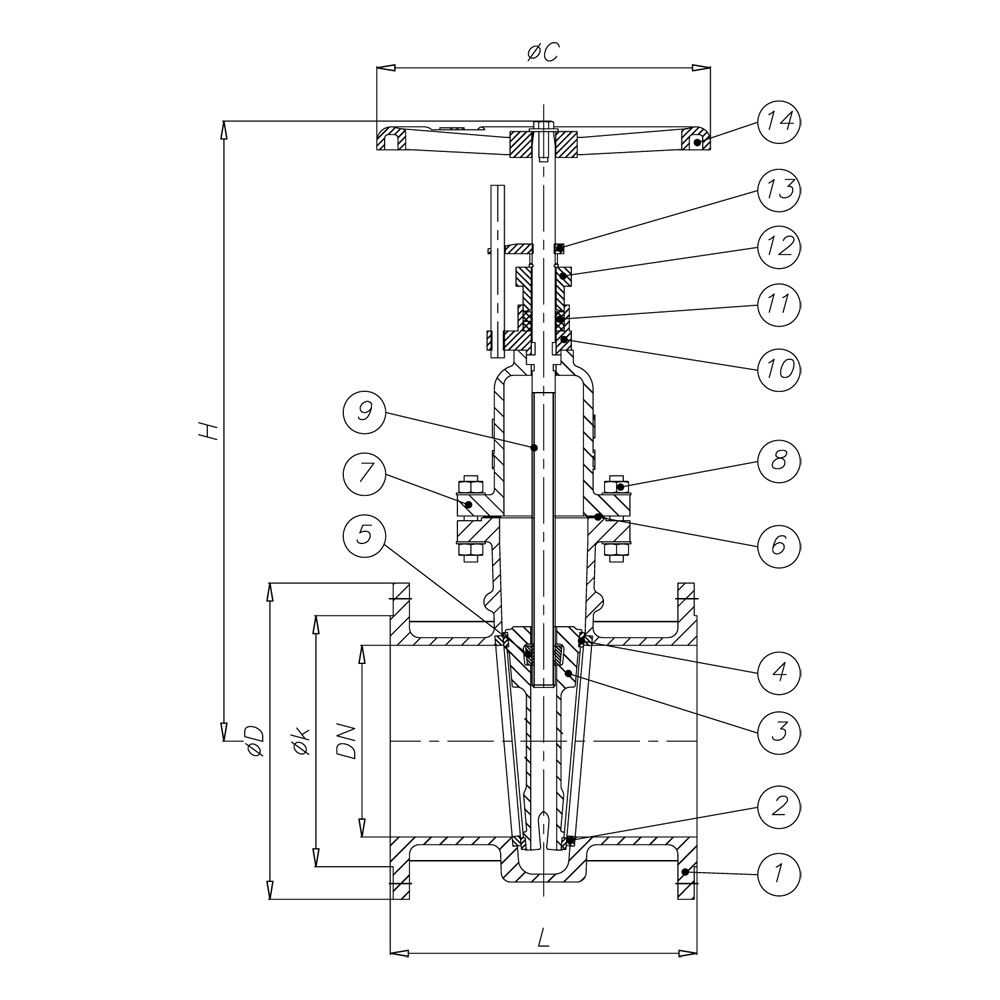

Technical drawings(1 page)
Operating media
Typical applications
- water
- air
- gas
- oil
Actuation options
Features
- Rising stem design with stuffing box packing
- Wedge gate with separate wedge ring
- Graphite stem packing
- Non-asbestos bonnet gasket
- Position indicator
- JIS flanged ends to JIS B2220-10K
Description
A cast steel gate valve designed to JIS F7360 and JIS F7366 standards, rated at JIS 10K pressure class. Available in sizes DN50 to DN500 with flanged ends conforming to JIS B2220-10K, suitable for water, air, gas, and oil service.
Selection notes
This gate valve is a rising stem and wedge gate pattern, supplied for flanged installation.
Sizes run DN50 to DN500, in 10K.
The body is Cast Steel.
Seat and trim options are SS420 and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, air, gas and oil.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7360, JIS F7366, JIS F7400 and JIS B2220-10K.
