JIS 16K Straight Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN40
- Pressure Class
- 16K
- End connection
- Flanged
- Operating temperature
- max 205°C
Standards
- Design & manufacture
- JIS F7303, JIS F7409 SDNR
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240 - 16K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Handwheel
- Disc Nut
- Gland Nut
- Lock Plate
- Nut
- Packing Gland
- Screw
Dimensions per size(5 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 110 | 130 | 80 | 95 | 70 | 2.76 kg |
| DN20 | 120 | 140 | 100 | 100 | 75 | 3.72 kg |
| DN25 | 130 | 160 | 125 | 125 | 90 | 5.2 kg |
| DN32 | 160 | 170 | 125 | 135 | 100 | 6.91 kg |
| DN40 | 180 | 190 | 140 | 140 | 105 | 8.43 kg |

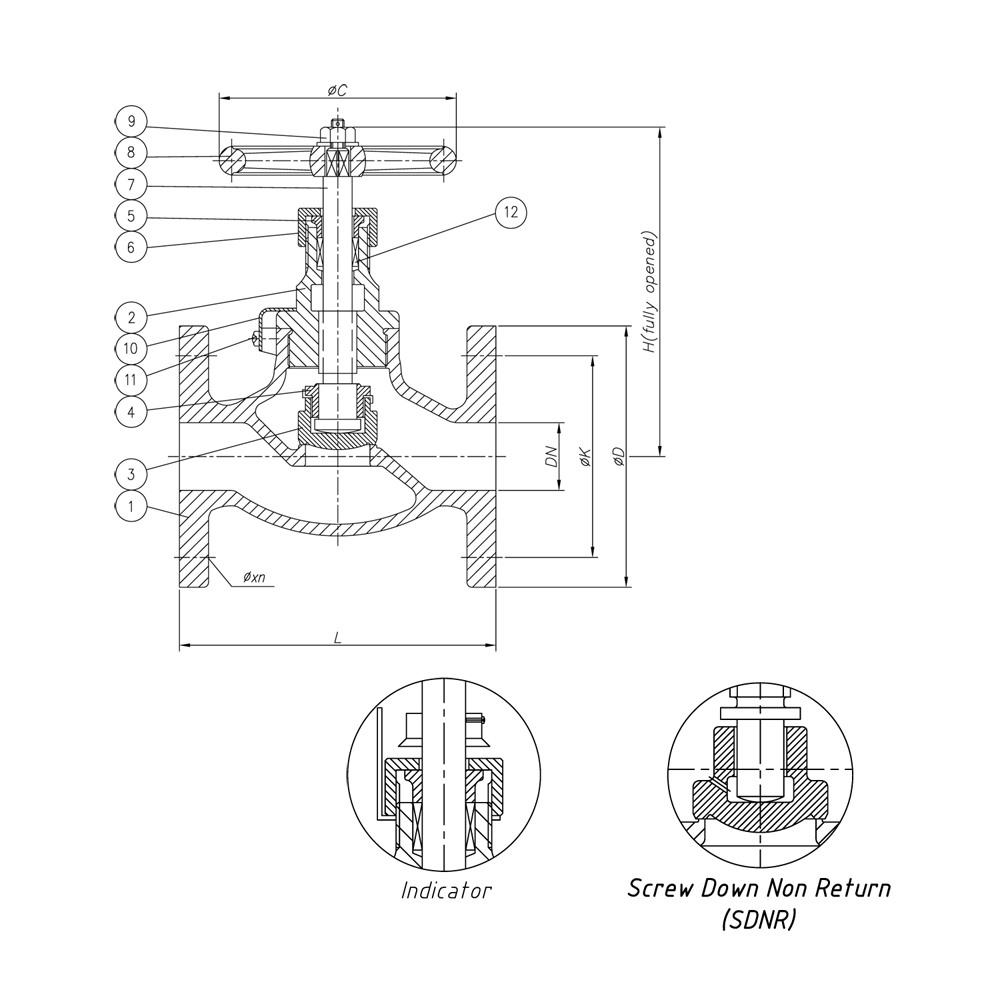

Technical drawings(1 page)
Operating media
Typical applications
- marine
- steam systems
- water systems
- air systems
- gas systems
- oil systems
Actuation options
Features
- Straight globe pattern
- Available as STOP valve (JIS F7303) and Screw Down Non Return variant (JIS F7409 SDNR)
- Position indicator
- Graphite packing
- Flanged ends to JIS B2240 16K
Description
A straight pattern globe valve designed to JIS F7303 (STOP) and JIS F7409 (SDNR) standards, rated at 16K pressure class. Available in sizes DN15 to DN40 with bronze body and bonnet, suitable for steam, water, air, gas, oil, and pulsation water service.
Selection notes
This globe valve is a straight pattern, screw down non return (sdnr) and stop valve pattern, supplied for flanged installation.
Sizes run DN15 to DN40, in 16K.
The body is Bronze Rg5.
Stated service media include air, gas, oil, pulsation water, steam and water.
It is catalogued for Water & Wastewater and Marine & Offshore.
Working temperature is max 205°C.
Built to JIS F7303, JIS F7409 SDNR, JIS F7400 and JIS B2240 - 16K.
