JIS 16K Angle Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN200
- Pressure Class
- 16K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7310, JIS F7378
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2239
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt Nut
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(7 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | IMPA STOP | IMPA SDNR | Weight |
|---|---|---|---|---|---|---|---|---|
| DN50 | 120 | 230 | 160 | 155 | 120 | 750271 | 751161 | 11.1 kg |
| DN65 | 130 | 270 | 180 | 175 | 140 | 750272 | 751162 | 15.6 kg |
| DN80 | 150 | 280 | 200 | 200 | 160 | 750273 | 751163 | 22.6 kg |
| DN100 | 170 | 305 | 220 | 225 | 185 | 750274 | 751164 | 29.5 kg |
| DN125 | 200 | 355 | 250 | 270 | 225 | 750275 | 751165 | — |
| DN150 | 225 | 390 | 300 | 305 | 260 | 750276 | 751166 | — |
| DN200 | 250 | 485 | 400 | 350 | 305 | 750277 | — | — |

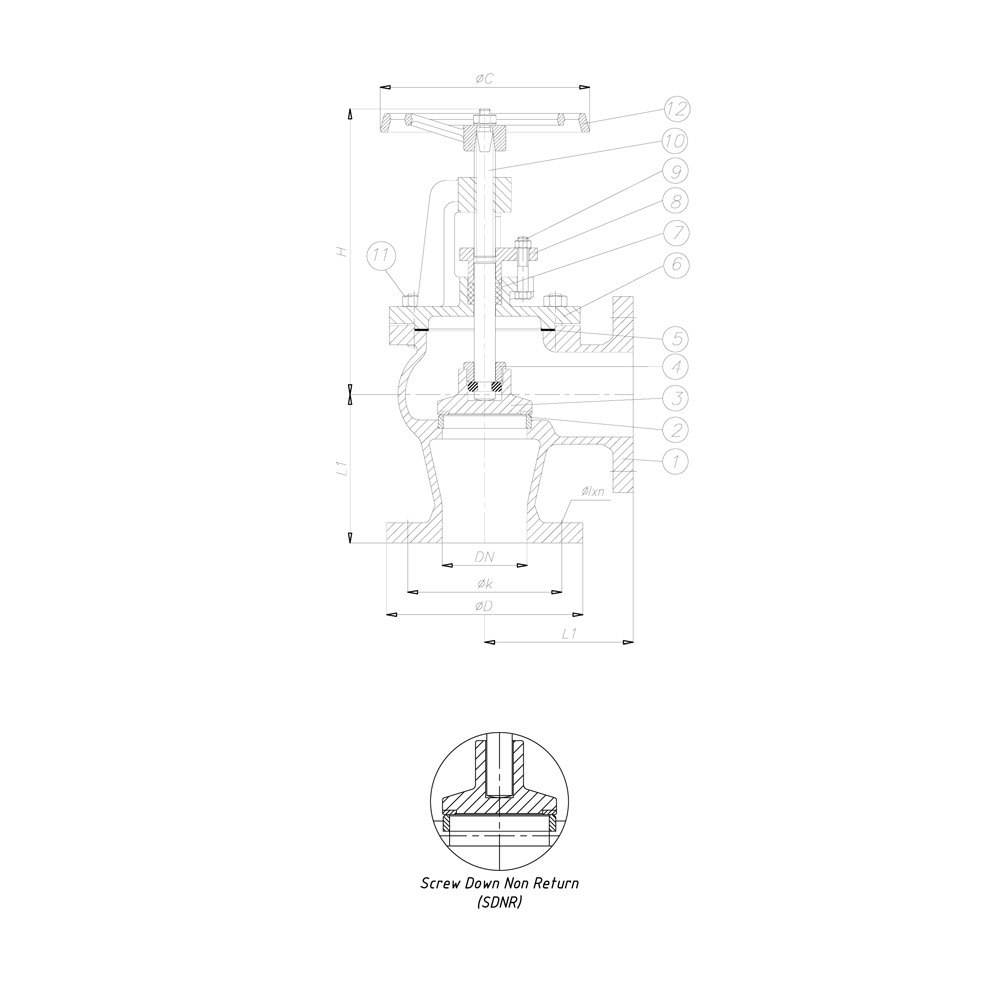

Technical drawings(1 page)
Operating media
Typical applications
- Aboard ships for hot and cold water, oil, and steam
Actuation options
Features
- Angle-pattern globe valve configuration
- Available as Stop valve (STOP) to JIS F7310
- Available as Screw Down Non Return valve (SDNR) to JIS F7378
- Flanged ends to JIS B2239 16K
- Graphite packing
Description
An angle-pattern globe valve designed to JIS F7310 (STOP) and JIS F7378 (SDNR) standards, rated at 16K pressure. Available in sizes DN50 to DN200 with flanged ends to JIS B2239 16K. Intended for marine applications handling hot and cold water, oil, and steam aboard ships.
Selection notes
This globe valve is a angle type, marine, screw down non return (sdnr) and stop valve pattern, supplied for flanged installation.
Sizes run DN50 to DN200, in 16K.
The body is offered in GG 25, GGG 40 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze Rg5, 13Cr and SS 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, hot water, cold water, oil and steam.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7310, JIS F7378, JIS F7400 and JIS B2239.
