JIS 16K Straight Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN200
- Pressure Class
- 16K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7309 STOP, JIS F7377 SDNR
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2239 - 16K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt Nut
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(7 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Øxn (mm) | IMPA STOP | IMPA SDNR | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 220 | 260 | 160 | 155 | 120 | Ø19x8 | 750261 | 751151 | 12.1 kg |
| DN65 | 270 | 300 | 180 | 175 | 140 | Ø19x8 | 750262 | 751152 | 17.9 kg |
| DN80 | 300 | 315 | 200 | 200 | 160 | Ø23x8 | 750263 | 751153 | 25.7 kg |
| DN100 | 350 | 340 | 220 | 225 | 185 | Ø23x8 | 750264 | 751154 | 33.9 kg |
| DN125 | 430 | 400 | 250 | 270 | 225 | Ø25x8 | 750265 | 751155 | 54 kg |
| DN150 | 500 | 460 | 300 | 305 | 260 | Ø25x12 | 750266 | 751156 | — |
| DN200 | 570 | 550 | 400 | 350 | 305 | Ø25x12 | 750267 | — | — |

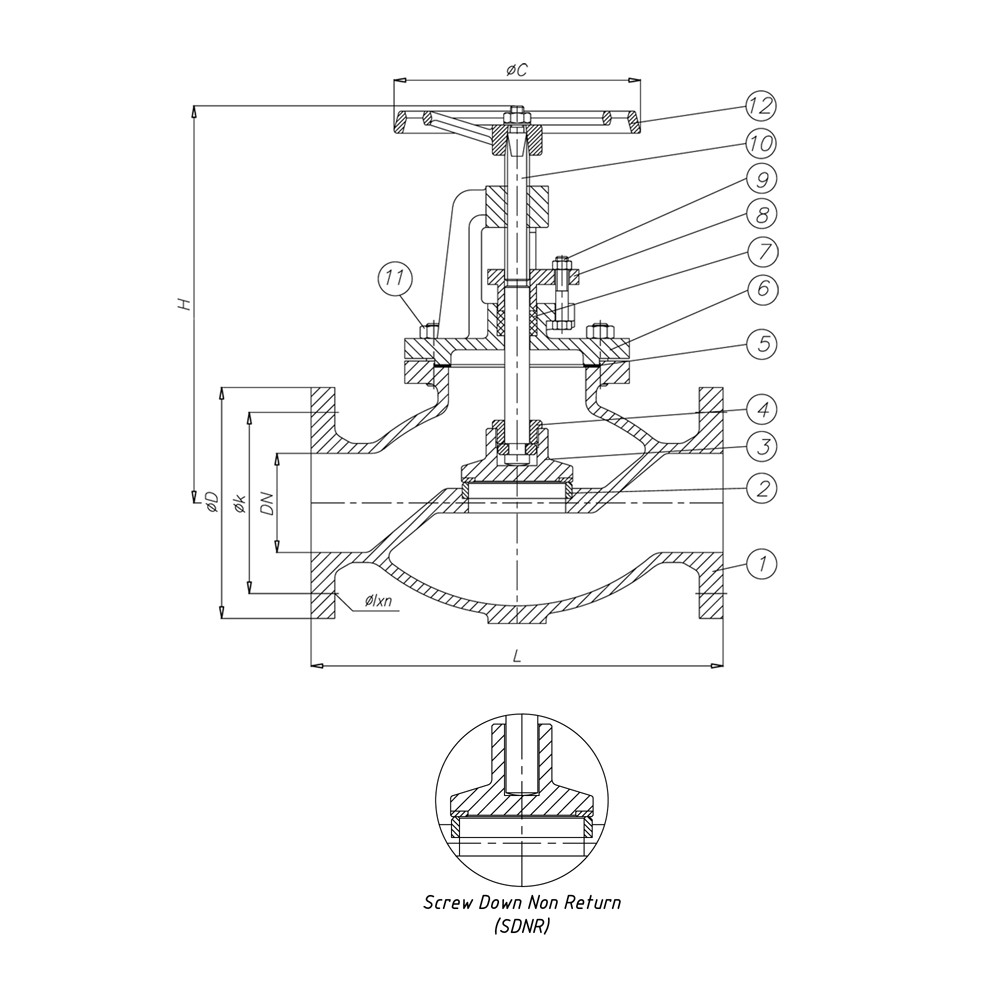

Technical drawings(1 page)
Operating media
Typical applications
- Marine / aboard ships
- hot water
- cold water
- oil
- steam
Features
- Available as STOP valve (JIS F7309) or Screw Down Non Return valve (JIS F7377 SDNR)
- Flanged ends to JIS B2239 16K
- Straight (inline) flow path configuration
- Graphite stem packing
Description
A straight (inline) globe valve rated at JIS 16K pressure class, available in DN50 to DN200. Designed to JIS F7309 (STOP) and JIS F7377 (SDNR) standards with JIS B2239 flanged ends. Intended for use aboard ships with hot and cold water, oil, and steam service.
Selection notes
This globe valve is a straight type, stop valve, screw down non return (sdnr) and marine pattern, supplied for flanged installation.
Sizes run DN50 to DN200, in 16K.
The body is offered in GG 25, GGG 40 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze Rg5, 13Cr and SS 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, oil and steam.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7309 STOP, JIS F7377 SDNR, JIS F7400 and JIS B2239 - 16K.
