JIS 10K Angle Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN400
- Pressure Class
- 10K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7308 STOP, JIS F7376 SDNR
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2239 10K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt Nut
- Disc Nut
- Gland
- Stud Nut
Dimensions per size(11 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Øxn (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 120 | 230 | 160 | 155 | 120 | Ø19x4 | 9.5 kg |
| DN65 | 130 | 270 | 180 | 175 | 140 | Ø19x4 | 13 kg |
| DN80 | 140 | 280 | 200 | 185 | 150 | Ø19x8 | 19.3 kg |
| DN100 | 160 | 305 | 220 | 210 | 175 | Ø19x8 | 23.5 kg |
| DN125 | 180 | 355 | 250 | 250 | 210 | Ø23x8 | — |
| DN150 | 205 | 390 | 300 | 280 | 240 | Ø23x8 | — |
| DN200 | 230 | 485 | 400 | 330 | 290 | Ø23x12 | — |
| DN250 | 290 | 540 | 400 | 400 | 355 | Ø25x12 | — |
| DN300 | 320 | 610 | 500 | 445 | 400 | Ø25x16 | — |
| DN350 | 360 | 690 | 500 | 490 | 445 | Ø25x16 | — |
| DN400 | 420 | 770 | 630 | 560 | 510 | Ø27x16 | — |

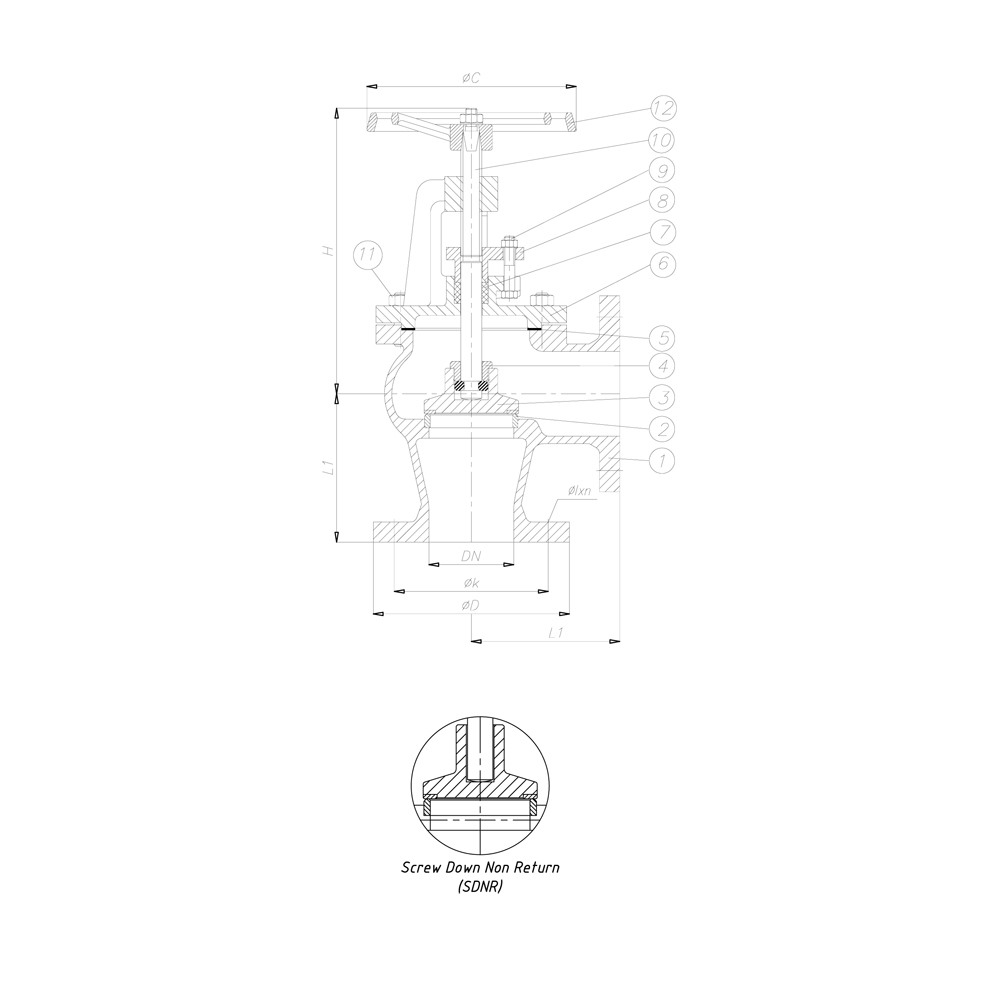

Technical drawings(1 page)
Operating media
Typical applications
- Aboard ships for hot and cold water
- Oil service
- Steam service
- Marine
Actuation options
Features
- Angle body configuration
- Available as Stop (STOP) variant per JIS F7308
- Available as Screw Down Non Return (SDNR) variant per JIS F7376
- Flanged ends to JIS B2239 10K
- Graphite packing
- Klingerite gasket
Description
An angle globe valve designed to JIS F7308 (STOP) and JIS F7376 (SDNR) standards, rated at 10K pressure class. Available in sizes DN50 to DN400 with flanged ends to JIS B2239 10K. Intended for use aboard ships for hot and cold water, oil, and steam service.
Selection notes
This globe valve is a angle type, screw down non return (sdnr), stop valve and marine pattern, supplied for flanged installation.
Sizes run DN50 to DN400, in 10K.
The body is offered in GG 25, GGG 40 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze Rg5, 13Cr and SS 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, hot water, cold water, oil and steam.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7308 STOP, JIS F7376 SDNR, JIS F7400 and JIS B2239 10K.
