JIS Angle Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN40
- Pressure Class
- 16K
- End connection
- Flanged
- Operating temperature
- -999°C to 205°C
Standards
- Design & manufacture
- JIS F7304, JIS F7410
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Handwheel
- Disc Nut
- Gland Nut
- Lock Plate
- Nut
- Packing Gland
- Screw
Dimensions per size(5 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 70 | 120 | 80 | 95 | 70 | 2.73 kg |
| DN20 | 75 | 130 | 100 | 100 | 75 | 3.65 kg |
| DN25 | 85 | 145 | 125 | 125 | 90 | 5.16 kg |
| DN32 | 95 | 150 | 125 | 135 | 100 | 6.72 kg |
| DN40 | 100 | 165 | 140 | 140 | 105 | 8.13 kg |

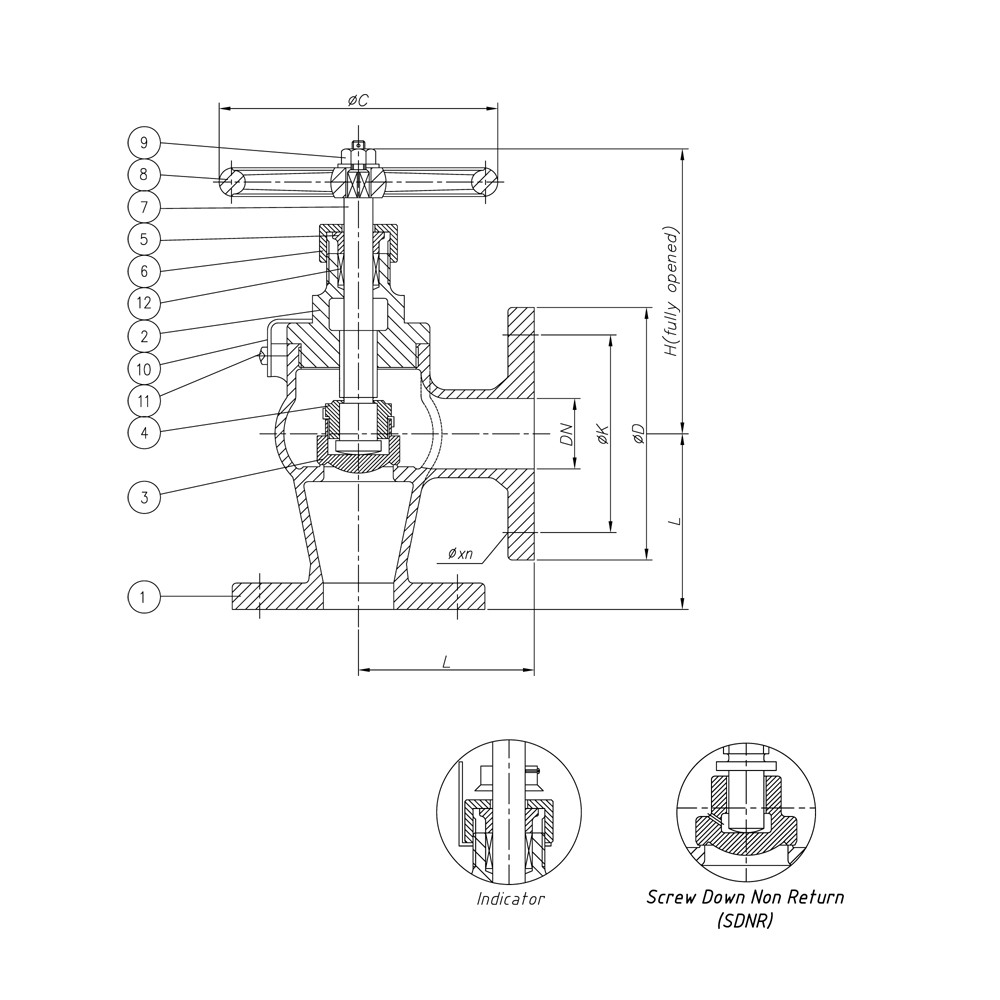

Technical drawings(1 page)
Operating media
Typical applications
- air
- gas
- oil
- pulsation water
Actuation options
Features
- Angle-pattern body configuration
- Available in STOP (JIS F7304) and Screw Down Non Return / SDNR (JIS F7410) variants
- Indicator feature available
- Graphite packing
- Flanged ends per JIS B2240 16K
Description
An angle-pattern globe valve designed to JIS F7304 (STOP) and JIS F7410 (SDNR) standards, available in DN15 - DN40 with a 16K pressure rating. The body and bonnet are bronze construction with brass or bronze disc, suitable for air, gas, oil, and pulsation water service. A screw-down non-return (SDNR) configuration is also available.
Selection notes
This globe valve is a angle type, screw down non return (sdnr) and jis pattern, supplied for flanged installation.
Sizes run DN15 to DN40, in 16K.
The body is Bronze Rg5.
Stated service media include air, gas, oil and pulsation water.
It is catalogued for Water & Wastewater and Marine & Offshore.
Working temperature is -999°C to 205°C.
Built to JIS F7304, JIS F7410, JIS F7400 and JIS B2240.
