JIS 16K Cast Iron Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN300 to DN400
- Pressure Class
- 16K
- End connection
- Flanged
Standards
- Design & manufacture
- JIS F7369
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240-16K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Gland
- Indicator
- Stem Nut
- Stud Nut
- Stuffing Box
- Wedge Ring
Dimensions per size(3 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Weight |
|---|---|---|---|---|---|---|
| DN300 | 490 | 815 | 400 | 480 | 430 | — |
| DN350 | 540 | 925 | 520 | 540 | 480 | — |
| DN400 | 610 | 1030 | 520 | 605 | 540 | — |

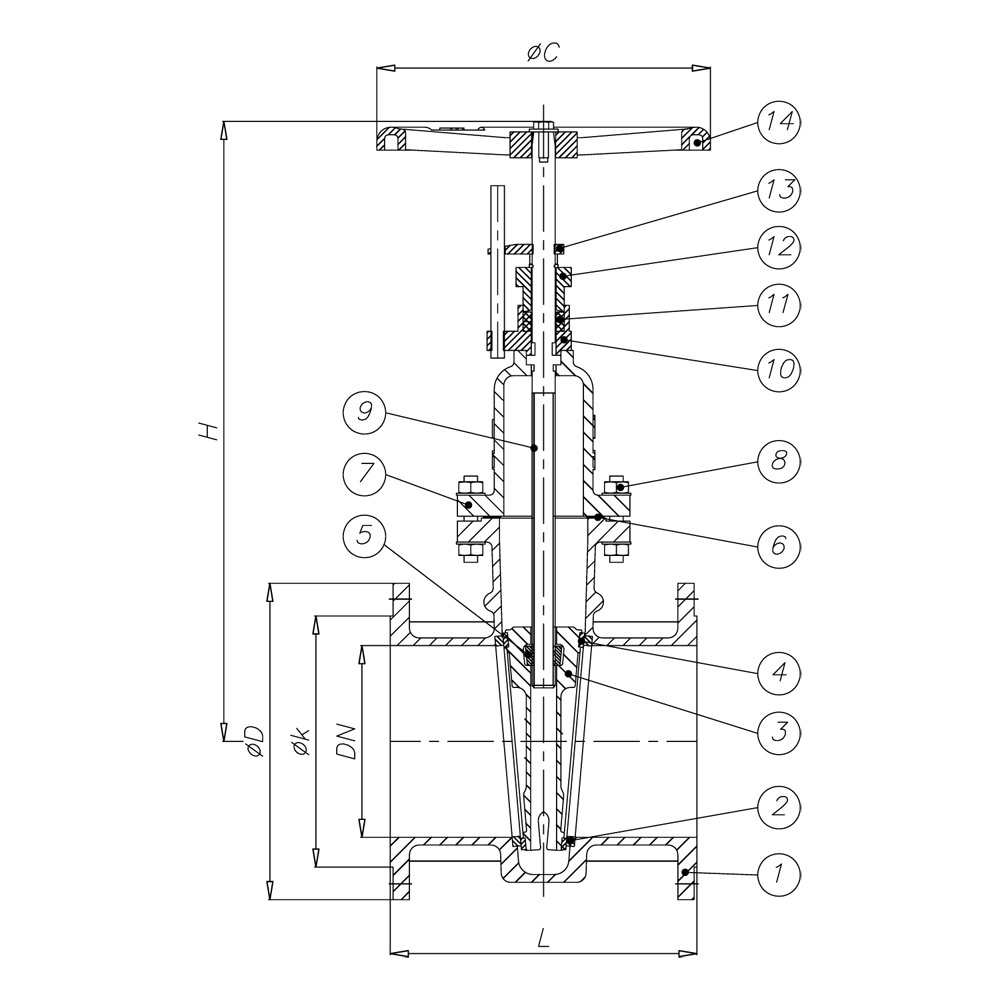

Technical drawings(1 page)
Operating media
Typical applications
- water
- air
- gas
- oil
Actuation options
Description
A cast iron gate valve designed to JIS F7369 standard, rated at 16K pressure class. Available in sizes DN300 to DN400 with JIS B2240-16K flanged ends. Suitable for use with water, air, gas, and oil media.
Selection notes
This gate valve is a cast iron pattern, supplied for flanged installation.
Sizes run DN300 to DN400, in 16K.
The body is offered in GG25 and GGG40, so the grade can be matched to the service rather than the other way round.
Seat and trim options are SS420 and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, air, gas and oil.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to JIS F7369, JIS F7400 and JIS B2240-16K.
