Gate Valve
API Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 2 to NPS 24
- Pressure Class
- Class 600, Class 900
- End connection
- Flanged · Butt weld
Standards
- Other standards
- API, ANSI
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Dimensions per size(27 sizes)
| Size | L_RF (mm) | L_RTJ (mm) | L_BW (mm) | d (mm) | H (mm) | W (mm) | H1 (mm) | W1 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| NPS 2 / DN50 | 292 | 295 | 292 | 50 | 380 | 200 | — | — | H.W 37 kg |
| NPS 2 1/2 / DN65 | 330 | 333 | 330 | 63 | 420 | 250 | — | — | H.W 50 kg |
| NPS 3 / DN80 | 356 | 359 | 356 | 76 | 500 | 280 | 585 | 310 | H.W 82 kg / G.O 87 kg |
| NPS 4 / DN100 | 432 | 435 | 432 | 100 | 575 | 300 | 695 | 310 | H.W 134 kg / G.O 142 kg |
| NPS 5 / DN125 | 508 | 511 | 508 | 127 | 700 | 350 | 790 | 310 | H.W 175 kg / G.O 227 kg |
| NPS 6 / DN150 | 559 | 562 | 559 | 150 | 750 | 450 | 900 | 460 | H.W 245 kg / G.O 286 kg |
| NPS 8 / DN200 | 660 | 664 | 660 | 199 | 850 | 500 | 1110 | 460 | H.W 423 kg / G.O 472 kg |
| NPS 10 / DN250 | 787 | 791 | 787 | 247 | 1005 | 650 | 1300 | 460 | H.W 682 kg / G.O 657 kg |
| NPS 12 / DN300 | 838 | 841 | 838 | 298 | 1130 | 700 | 1650 | 460 | H.W 932 kg / G.O 893 kg |
| NPS 14 / DN350 | 889 | 892 | 889 | 326 | 1270 | 900 | 1750 | 530 | H.W 1177 kg / G.O 1318 kg |
| NPS 16 / DN400 | 991 | 994 | 991 | 374 | 1365 | 900 | 1900 | 530 | H.W 1513 kg / G.O 1720 kg |
| NPS 18 / DN450 | 1092 | 1095 | 1092 | 419 | 2020 | 600 | — | — | G.O 1980 kg |
| NPS 20 / DN500 | 1194 | 1200 | 1194 | 463 | 2172 | 600 | — | — | G.O 2460 kg |
| NPS 24 / DN600 | 1397 | 1407 | 1397 | 558 | 2650 | 600 | — | — | G.O 3650 kg |
| NPS 2 / DN50 | 368 | 371 | 368 | 47 | 500 | 280 | — | — | H.W 70 kg |
| NPS 2 1/2 / DN65 | 419 | 422 | 419 | 57 | 450 | 280 | — | — | H.W 110 kg |
| NPS 3 / DN80 | 381 | 384 | 381 | 72 | 505 | 300 | — | 310 | H.W 140 kg / G.O 167 kg |
| NPS 4 / DN100 | 457 | 460 | 457 | 98 | 575 | 350 | 625 | 310 | H.W 178 kg / G.O 227 kg |
| NPS 5 / DN125 | 559 | 562 | 559 | 125 | 630 | 400 | 740 | 310 | H.W 258 kg / G.O 285 kg |
| NPS 6 / DN150 | 610 | 613 | 610 | 146 | 795 | 500 | 900 | 460 | H.W 358 kg / G.O 396 kg |
| NPS 8 / DN200 | 737 | 740 | 737 | 190 | 885 | 650 | 1000 | 460 | H.W 550 kg / G.O 627 kg |
| NPS 10 / DN250 | 838 | 841 | 838 | 238 | 1035 | 700 | 1130 | 530 | H.W 1000 kg / G.O 1100 kg |
| NPS 12 / DN300 | 965 | 968 | 965 | 282 | 1180 | 900 | 1520 | 530 | H.W 1215 kg / G.O 1310 kg |
| NPS 14 / DN350 | 1029 | 1038 | 1029 | 311 | 1350 | 900 | 1600 | 530 | H.W 1600 kg / G.O 1665 kg |
| NPS 16 / DN400 | 1130 | 1140 | 1130 | 355 | 1890 | 900 | 2100 | 600 | H.W 2150 kg / G.O 2330 kg |
| NPS 18 / DN450 | 1219 | — | — | 400 | 2232 | 800 | — | — | G.O 3000 kg |
| NPS 20 / DN500 | 1321 | — | — | 444 | 2435 | 800 | — | — | G.O 3800 kg |

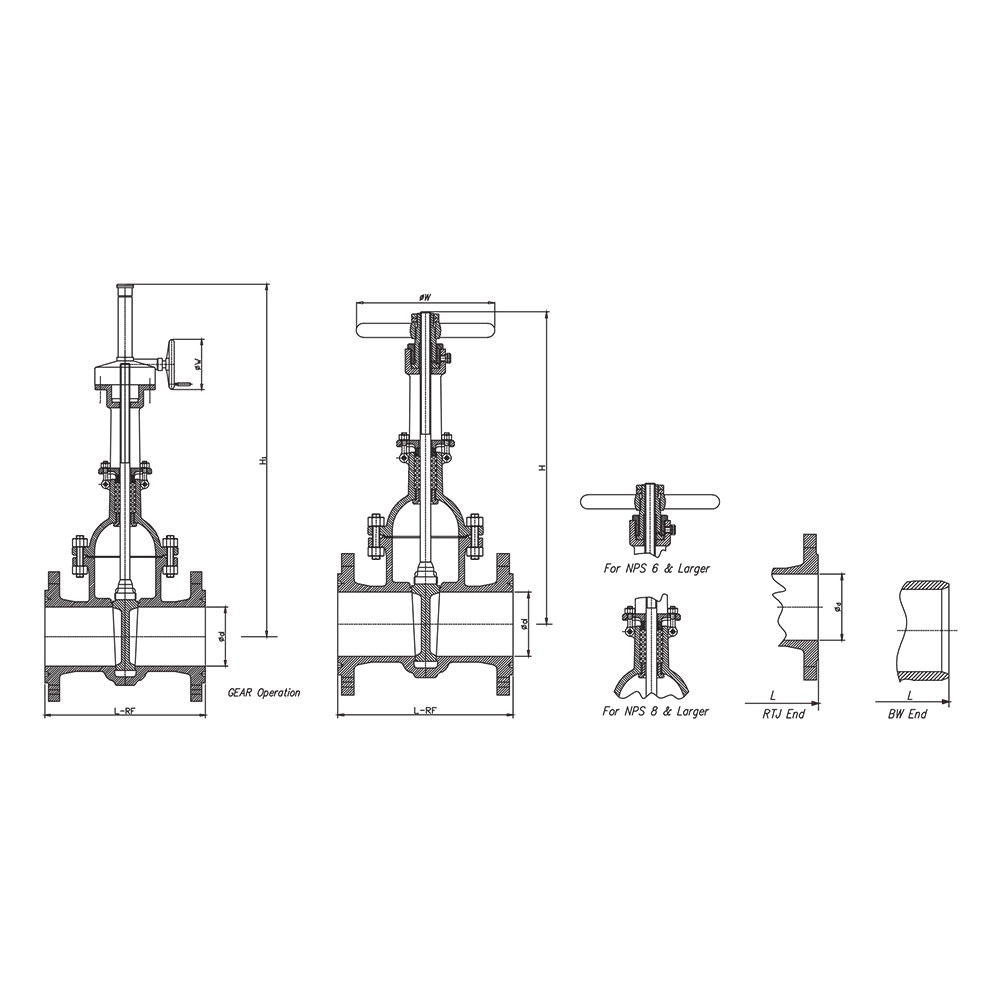

Technical drawings(1 page)
Actuation options
Manual handwheelManual gearboxPneumatic single-actingElectric 230V ACHydraulic
Approvals
API 600API 6DAPI 598ASME B16.5ASME B16.47 AMSS SP-4ASME B16.47 BAPI 605ASME B16.25ASME B16.10ASME B16.34
Features
- Rising stem design
- Gear operation available for larger sizes
- Three end connection options: RF, RTJ, and BW
- Slab or wedge gate configuration (NPS 6 and larger, NPS 8 and larger variants shown in drawings)
- Available with handwheel or gear operator
Description
Flanged gate valves designed to API standards in pressure Classes 600 and 900. Available in sizes NPS 2 through NPS 24 (Class 600) and NPS 2 through NPS 20 (Class 900). End connections include raised face (RF), ring-type joint (RTJ), and butt-weld (BW) configurations.
Supplier remarks
- We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
Available pressure classes
Pressure classes this product is rated to.
