JIS 5K Angle Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN65
- Pressure Class
- 5K
- End connection
- Flanged
- Operating temperature
- -999°C to 205°C
Standards
- Design & manufacture
- JIS F7302, JIS F7352
- Inspection & test
- JIS F7400
- Flange & end dimension
- JIS B2240-5K
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Gasket
- Handwheel
- Disc Nut
- Gland Nut
- Lock Plate
- Nut
- Packing Gland
- Screw
- Stud Nut
Dimensions per size(7 sizes)
| Size | L (mm) | H (mm) | C (mm) | D (mm) | K (mm) | Øxn (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 55 | 120 | 80 | 80 | 60 | Ø12x4 | 1.98 kg |
| DN20 | 60 | 130 | 100 | 85 | 65 | Ø12x4 | 2.73 kg |
| DN25 | 65 | 145 | 125 | 95 | 75 | Ø12x4 | 3.44 kg |
| DN32 | 80 | 150 | 125 | 115 | 90 | Ø15x4 | 4.77 kg |
| DN40 | 85 | 165 | 140 | 120 | 95 | Ø15x4 | 5.99 kg |
| DN50 | 100 | 200 | 140 | 130 | 105 | Ø15x4 | 10.1 kg |
| DN65 | 115 | 220 | 160 | 155 | 130 | Ø15x4 | 15.6 kg |

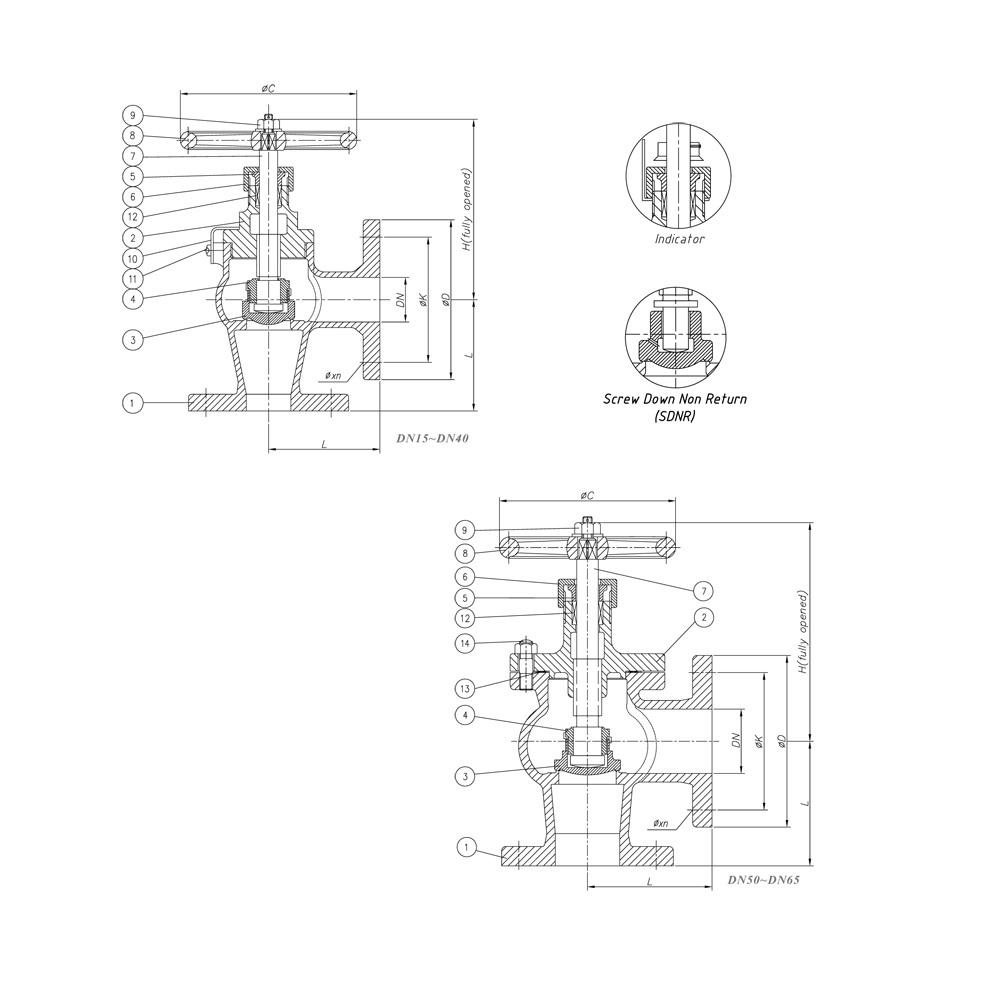

Technical drawings(1 page)
Operating media
Typical applications
- air
- gas
- oil
- pulsation water
- steam
- water
Actuation options
Features
- Available in STOP (JIS F7302) and Screw Down Non Return SDNR (JIS F7352) configurations
- Angle pattern body design
- Flanged ends to JIS B2240-5K
- Graphite packing
- Non-asbestos gasket
Description
An angle globe valve designed to JIS F7302 (STOP) and JIS F7352 (SDNR) standards, rated at 5K pressure class. Available in sizes DN15 to DN65 with flanged ends conforming to JIS B2240-5K, suitable for steam, water, air, gas, oil, and pulsation water service.
Selection notes
This globe valve is a angle type, stop valve and screw down non return (sdnr) pattern, supplied for flanged installation.
Sizes run DN15 to DN65, in 5K.
The body is Bronze Rg5.
Stated service media include air, gas, oil, pulsation water, steam and water.
It is catalogued for Water & Wastewater and Marine & Offshore.
Working temperature is -999°C to 205°C.
Built to JIS F7302, JIS F7352, JIS F7400 and JIS B2240-5K.
