Termodynamic Steam Trap
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN25
- Pressure Class
- PN16
- End connection
- Threaded
Standards
- Face to face
- ISO 228/1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Cover Gasket
Dimensions per size(3 sizes)
| Size | L-L1 (mm) | H-H1-H2 (mm) | D (mm) | b (mm) | k (mm) | g (mm) | i (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN15 | 150-95 | 40-100-42 | 95 | 16 | 65 | 45 | 14 | — |
| DN20 | 150-95 | 40-100-42 | 105 | 18 | 75 | 58 | 14 | — |
| DN25 | 160-95 | 40-100-42 | 115 | 18 | 85 | 68 | 14 | — |

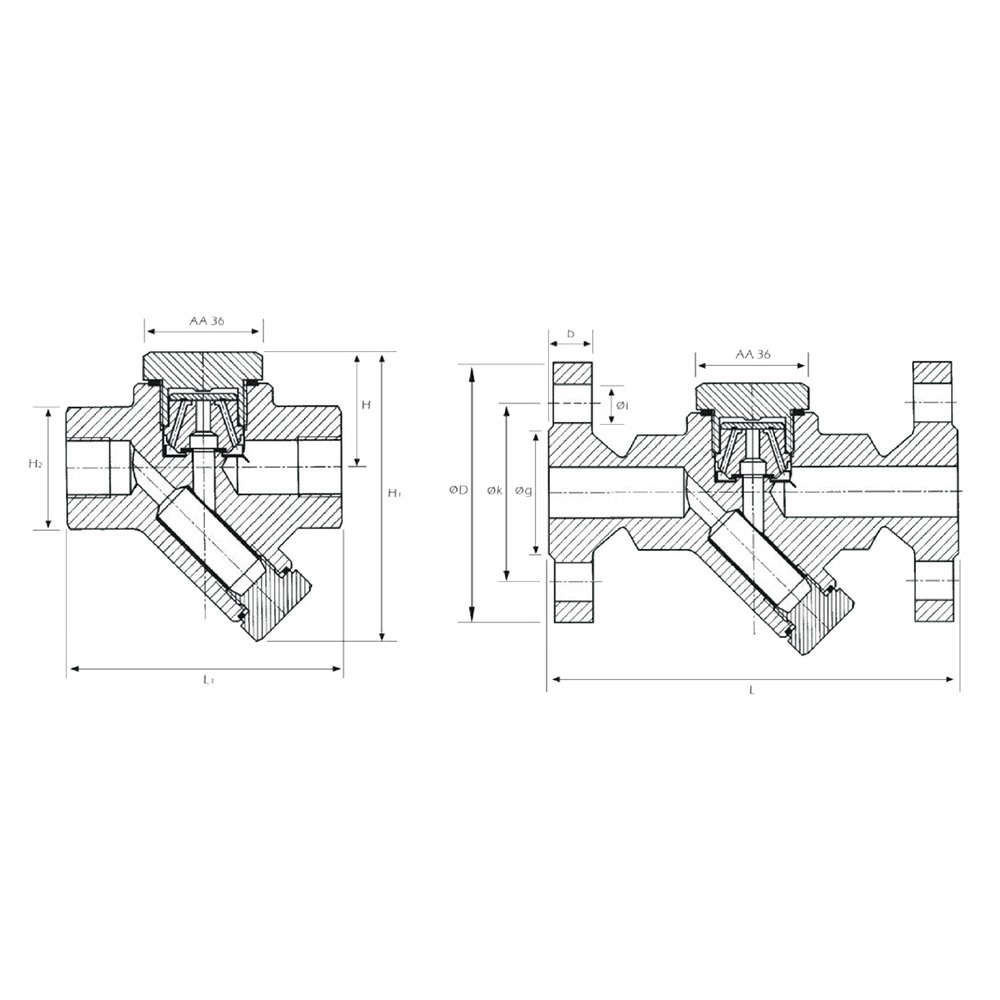

Technical drawings(1 page)
Description
A thermodynamic steam trap with threaded end connections rated at PN16. The body is constructed from forged steel and internal components including the disc and seat are stainless steel. Available in DN15, DN20, and DN25 sizes conforming to ISO 228/1 dimensional standard.
Selection notes
This steam trap is a thermodynamic pattern, supplied for threaded installation.
Sizes run DN15 to DN25, in PN16.
The body is Forged Steel ASTM A1 05.
Seat and trim options are Stainless Steel. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for HVAC and Industrial Process.
Built to ISO 228/1.
