Invert Bucket Steam Trap (Flanged)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Face to face
- DIN 2501
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bucket
- Cover
- Filter
- Orifice
- Valve
Dimensions per size(6 sizes)
| Size | L (mm) | h (mm) | H (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 156 | 81 | 150 | 95 | 65 | 4.2 kg |
| DN20 | 200 | 146 | 238 | 105 | 75 | 9 kg |
| DN25 | 240 | 187 | 320 | 115 | 85 | 17 kg |
| DN32 | 260 | 187 | 320 | 140 | 100 | 21 kg |
| DN40 | 280 | 200 | 370 | 150 | 110 | 29 kg |
| DN50 | 300 | 200 | 370 | 165 | 125 | 30 kg |

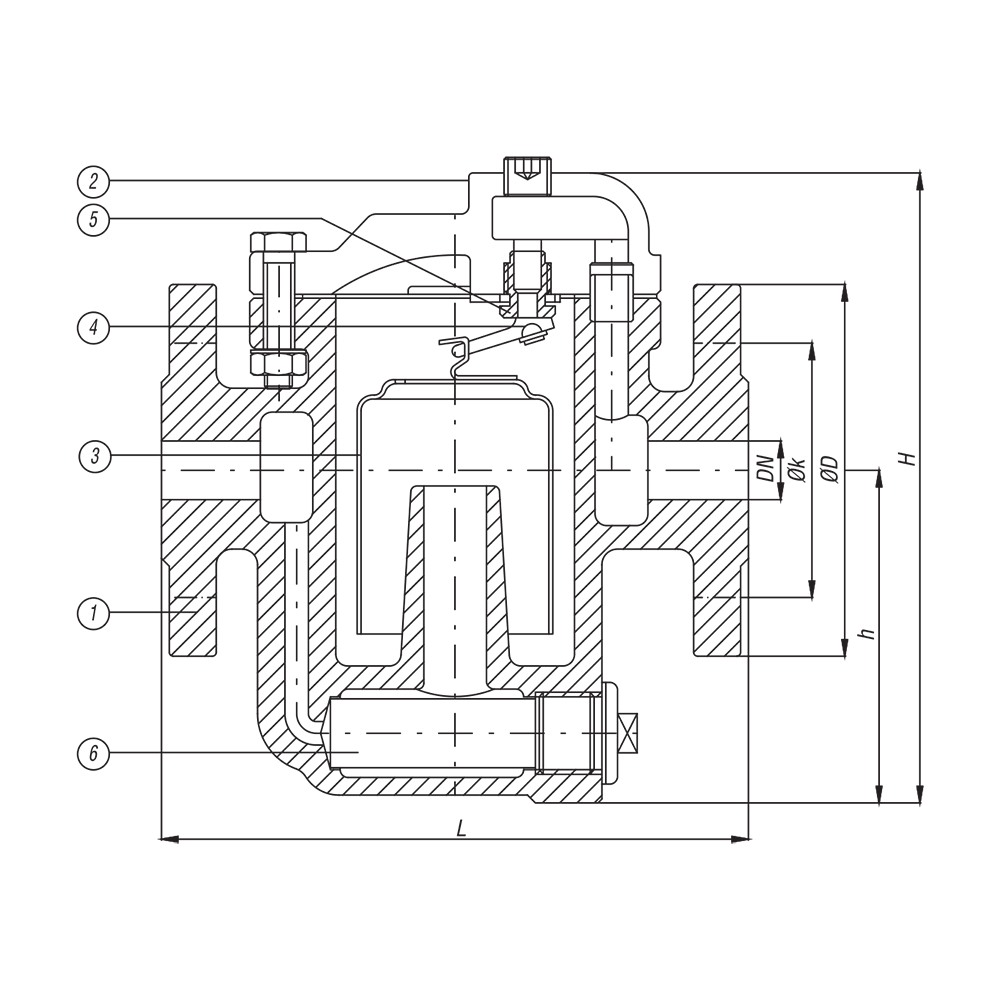

Technical drawings(1 page)
Features
- Inverted bucket mechanism
- Bucket material 1.4301 stainless steel
- Orifice material 1.4021 stainless steel
- Filter material 1.4301 stainless steel
- Cover material GG 25 / GGG-40 cast iron
Description
Flanged invert bucket steam trap rated at PN16 pressure. Body and cover constructed from grey cast iron (GG 25 / GGG-40), with stainless steel internal components including bucket, valve, orifice, and filter. Available in nominal diameters DN15 to DN50 with DIN 2501 flange dimensions.
Selection notes
This steam trap is a invert bucket pattern, supplied for flanged installation.
Sizes run DN15 to DN50, in PN16.
The body is offered in GG 25 and GGG-40, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Built to DIN 2501.
