Invert Bucket Steam Trap (Threaded)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN32
- Pressure Class
- PN16
- End connection
- Threaded
Standards
- Face to face
- ISO 228/1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Bucket
- Filter
- Orifice
- Valve
Dimensions per size(4 sizes)
| Size | L (mm) | h (mm) | H (mm) | Weight |
|---|---|---|---|---|
| DN15 | 125 | 81 | 150 | 3.1 kg |
| DN20 | 170 | 146 | 238 | 8.5 kg |
| DN25 | 207 | 187 | 320 | 16 kg |
| DN32 | 230 | 187 | 320 | 20 kg |

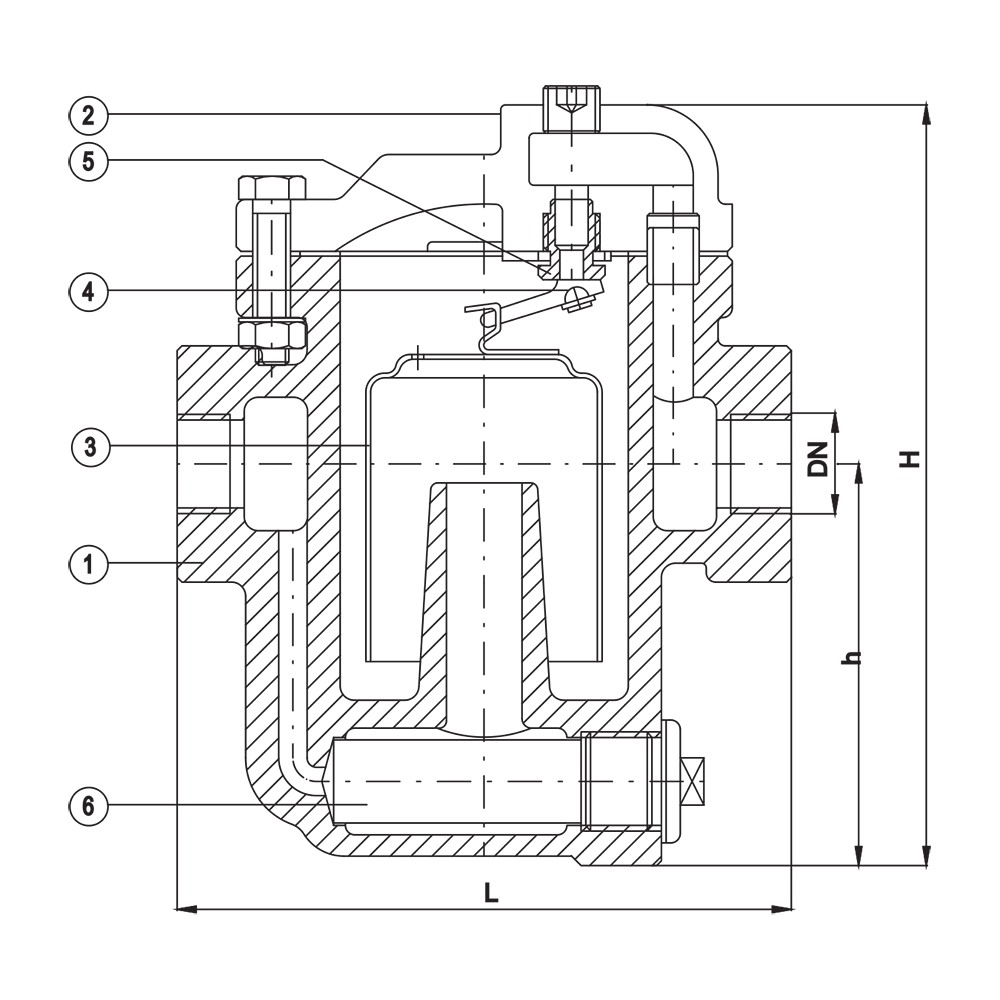

Technical drawings(1 page)
Description
Threaded inverted bucket steam trap rated to PN16, available in DN15 to DN32. Body and bonnet are cast iron (GG25/GGG-40), with stainless steel internal components. Dimensions conform to ISO 228/1 threaded connections.
Selection notes
This steam trap is a inverted bucket pattern, supplied for threaded installation.
Sizes run DN15 to DN32, in PN16.
The body is offered in GG 25 and GGG-40, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Built to ISO 228/1.
