Invert Bucket Steam Trap (Bottom Inlet-Top Outlet)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- PN16
- End connection
- Threaded
Standards
- Face to face
- ISO 228/1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Bucket
- Orifice
- Valve
Dimensions per size(6 sizes)
| Size | G (mm) | L (mm) | A (inch) | Weight |
|---|---|---|---|---|
| DN15 | 108 | 160 | R1/2" | 2.8 kg |
| DN20 | 136 | 200 | R3/4" | 6 kg |
| DN25 | 184 | 270 | R1" | 13 kg |
| DN32 | 188 | 310 | R1 1/4" | 16 kg |
| DN40 | 216 | 360 | R1 1/2" | 24 kg |
| DN50 | 280 | 425 | R2" | 45 kg |

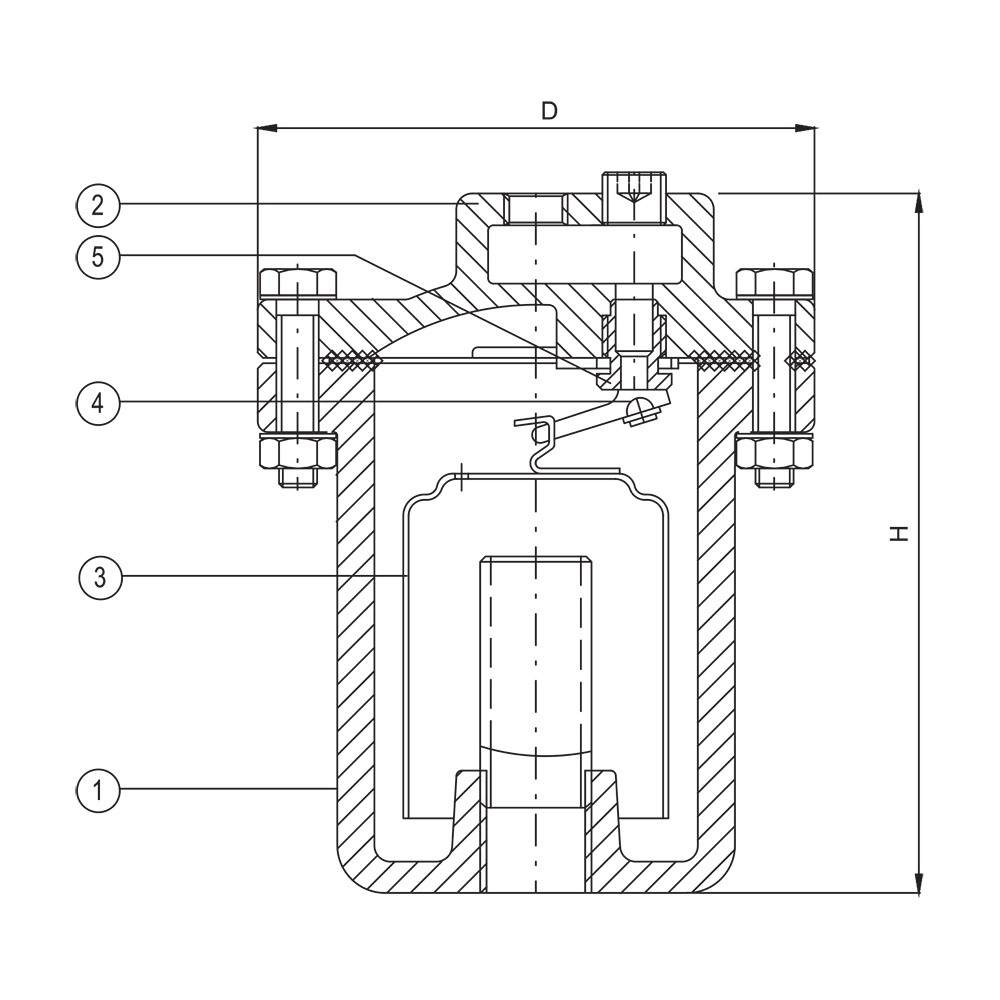

Technical drawings(1 page)
Operating media
Description
An inverted bucket steam trap with bottom inlet and top outlet configuration, rated to PN16. The body and bonnet are cast iron (GG25/GGG-40), with a stainless steel bucket, valve, and orifice. Available in sizes DN15 to DN50 with threaded end connections to ISO 228/1.
Selection notes
This steam trap is a inverted bucket and bottom inlet-top outlet pattern, supplied for threaded installation.
Sizes run DN15 to DN50, in PN16.
The body is offered in GG 25 and GGG-40, so the grade can be matched to the service rather than the other way round.
Stated service media include steam and condensate.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Built to ISO 228/1.
