Threaded Angle Type Fire Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN65
- Pressure Class
- PN16
- End connection
- Threaded · Flanged
Standards
- Design & manufacture
- DIN 86211
- Inspection & test
- EN 12266
- Flange & end dimension
- ISO 228-1, EN 1092-3/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Blind Coupling
- Bolt
- Chain Rope
- Coupling Seal
- Fixed Coupling
- Gland
- Gland Nut
Dimensions per size(3 sizes)
| Size | L (mm) | L1 (mm) | h (mm) | H_closed (mm) | H_open (mm) | G (BSP) | d1 (mm) | C (mm) | OD (mm) | OK (mm) | Og (mm) | b (mm) | f (mm) | n_Od (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 75 | 145 | 65 | 200 | 215 | 1-1/2" | 98 | 140 | 150 | 110 | 84 | 14 | 2 | 4-18 | 6 kg |
| DN50 | 75 | 145 | 75 | 210 | 225 | 2" | 98 | 140 | 165 | 125 | 99 | 16 | 2 | 4-18 | 7.3 kg |
| DN65 | 95 | 160 | 90 | 235 | 255 | 2-1/2" | 126 | 150 | 185 | 145 | 118 | 16 | 2 | 4-18 | 10.5 kg |

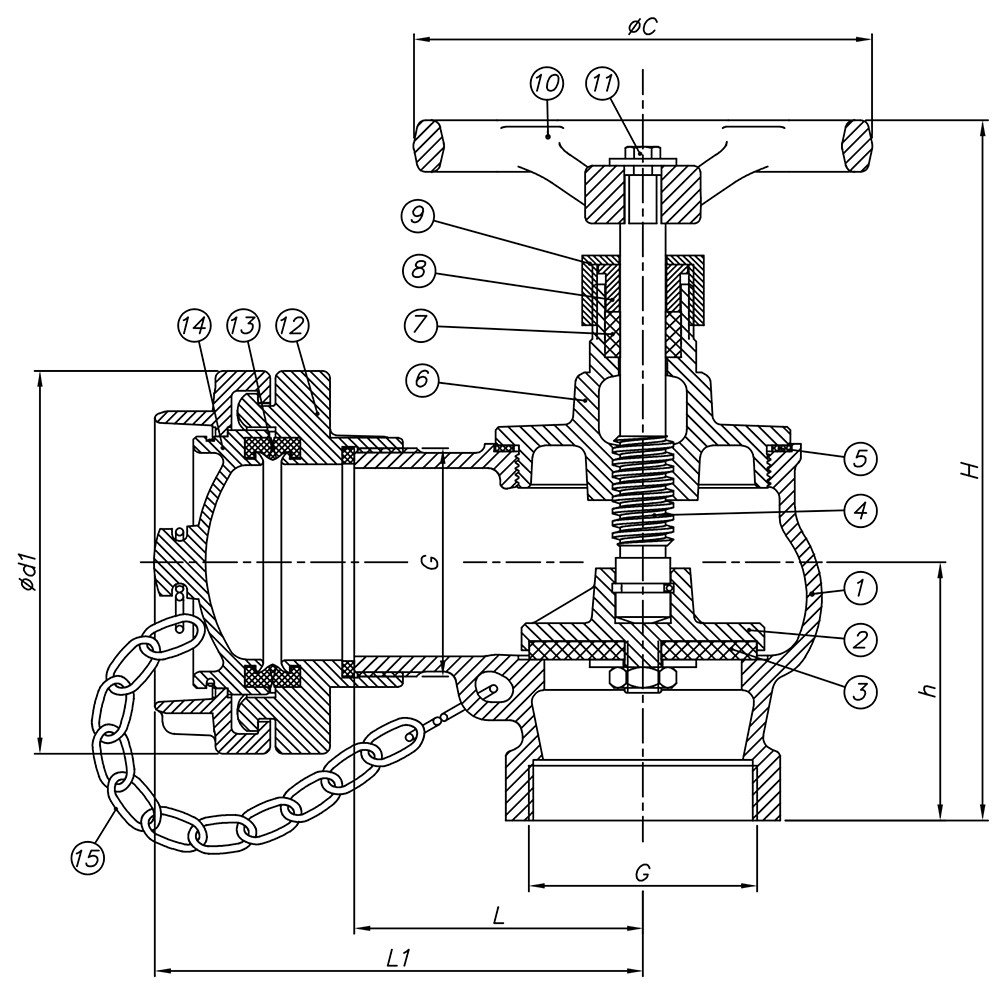

Technical drawings(1 page)
Operating media
Typical applications
- fire fighting
- fire hydrant systems
Actuation options
Features
- Angle type configuration
- BSP threaded inlet connection per ISO 228-1
- Compatible with Storz, BS 336, Nor, and Nakajima coupling options
- Fixed and blind coupling options available
- Chain/rope retainer for blind coupling
- Flange outlet to EN 1092-3/B PN10/PN16
Description
Angle type fire valve with BSP threaded end connections, designed to DIN 86211. Available in DN40 to DN65 with PN16 pressure rating. Compatible with multiple coupling options including Storz, BS 336, Nor, and Nakajima.
Selection notes
This fire hydrant valve is a angle type and fire valve pattern, supplied for threaded and flanged installation.
Sizes run DN40 to DN65, in PN16.
The body is offered in Bronze Rg5, CuSn10 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are NBR and EPDM. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water and fire fighting water.
It is catalogued for Water & Wastewater, Marine & Offshore, Fire Protection, HVAC and Industrial Process.
Built to DIN 86211, EN 12266, ISO 228-1 and EN 1092-3/B.
