Angle Type Fire Valve - SB
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN65
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Design & manufacture
- BS 5041, DIN 86211
- Inspection & test
- EN 12266
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Blind Coupling
- Bolt
- Chain Rope
- Fixed Coupling
- Gland
- Gland Nut
- Seal Coupling
Dimensions per size(3 sizes)
| Size | L (mm) | L1 (mm) | h (mm) | H_closed (mm) | H_open (mm) | d1 (mm) | C (mm) | OD (mm) | OK (mm) | Og (mm) | b (mm) | f (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 75 | 145 | 65 | 200 | 215 | 98 | 140 | 150 | 110 | 84 | 14 | 2 | 6 kg |
| DN50 | 75 | 145 | 75 | 210 | 225 | 98 | 140 | 165 | 125 | 99 | 16 | 2 | 7.3 kg |
| DN65 | 95 | 160 | 90 | 235 | 255 | 126 | 150 | 185 | 145 | 118 | 16 | 2 | 10.5 kg |

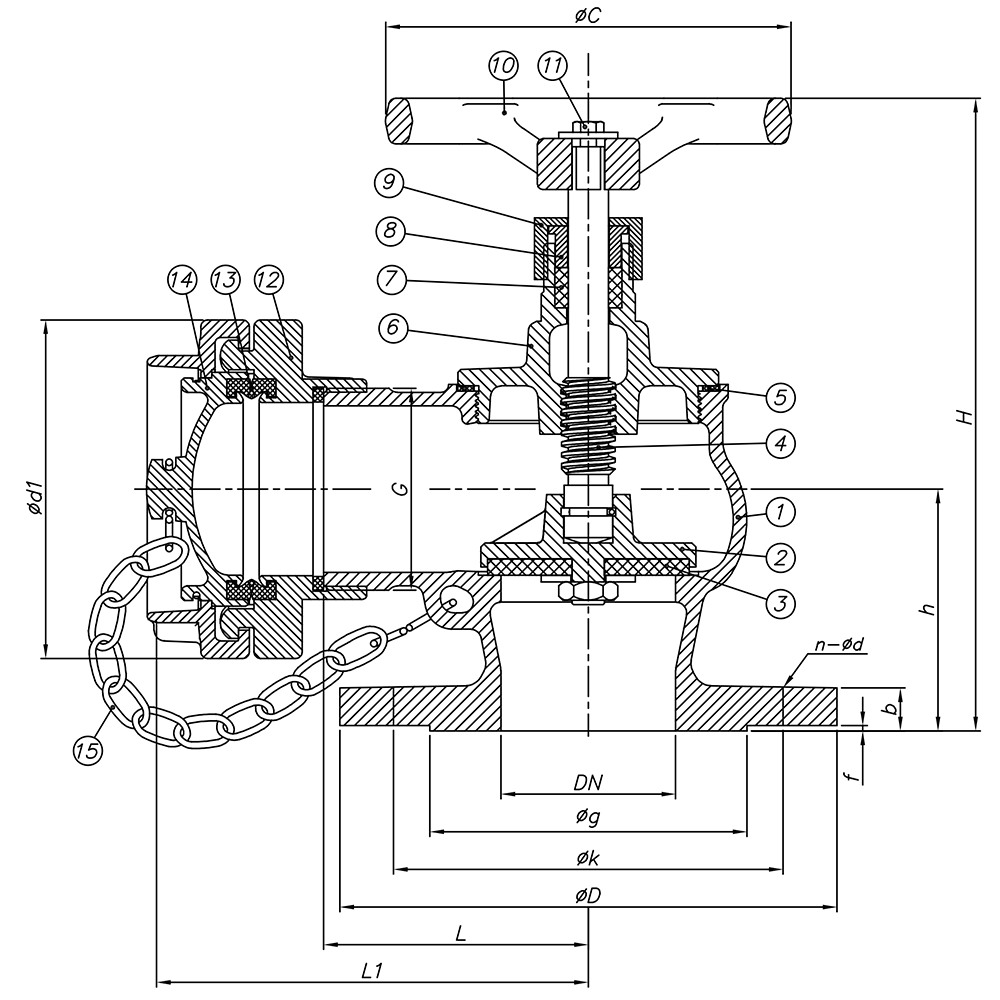

Technical drawings(1 page)
Actuation options
Features
- Screwed bonnet design
- Angle type configuration
- Compatible with Storz, BS 336, Nor, and Nakajima coupling standards
- Flange options available: ASME, JIS, VG
- Fixed and blind coupling options included
- Chain/rope retainer for blind coupling in stainless steel
Description
Angle type fire valve with screwed bonnet designed to BS 5041 and DIN 86211. Available in DN40 to DN65 with flanged end connection to EN 1092-3/B at PN16. Compatible with multiple coupling standards including Storz, BS 336, Nor, and Nakajima.
Selection notes
This fire hydrant valve is a angle type and fire valve pattern, supplied for flanged installation.
Sizes run DN40 to DN65, in PN16.
The body is offered in Bronze Rg5, CuSn10 and GS-C25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are NBR and EPDM. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater, Marine & Offshore, Fire Protection and Industrial Process.
Built to BS 5041, DIN 86211, EN 12266 and Screwed Bonnet.
