API Trunnion Ball Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100 to DN900
- Pressure Class
- Class 150, Class 300
- End connection
- Flanged · Butt weld
Standards
- Design & manufacture
- API 608
- Inspection & test
- API 6D, API 6FA, API 598
- Flange & end dimension
- ANSI B16.5, ANSI B16.25
- Other standards
- API 1607
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Gasket
- Spring
- Body Bolting
- Body Nut
- Cover Item 12
- Cover Item 8
- Gear
- Gland
- Low Trunnion
- O Ring Item 10
- O Ring Item 14
- Seat Ring
Dimensions per size(32 sizes)
| Size | L_RF (mm) | L_BW (mm) | d (mm) | H (mm) | H1 (mm) | W (mm) | Weight |
|---|---|---|---|---|---|---|---|
| Class 150 / DN100 (NPS 4) | 229 | 305 | 100 | 250 | 135 | 300 | 60 kg |
| Class 150 / DN125 (NPS 5) | 356 | 381 | 127 | 260 | 165 | 300 | 80 kg |
| Class 150 / DN150 (NPS 6) | 394 | 457 | 150 | 285 | 193 | 400 | 101 kg |
| Class 150 / DN200 (NPS 8) | 457 | 521 | 201 | 325 | 240 | 400 | 166 kg |
| Class 150 / DN250 (NPS 10) | 533 | 559 | 252 | 370 | 293 | 500 | 283 kg |
| Class 150 / DN300 (NPS 12) | 610 | 635 | 303 | 415 | 340 | 500 | 463 kg |
| Class 150 / DN350 (NPS 14) | 686 | 762 | 334 | 455 | 372 | 600 | 622 kg |
| Class 150 / DN400 (NPS 16) | 762 | 838 | 385 | 500 | 415 | 600 | 900 kg |
| Class 150 / DN450 (NPS 18) | 864 | 914 | 436 | 540 | 462 | 600 | 1150 kg |
| Class 150 / DN500 (NPS 20) | 914 | 991 | 487 | 590 | 511 | 600 | 1360 kg |
| Class 150 / DN600 (NPS 24) | 1067 | 1143 | 589 | 680 | 601 | 600 | 2514 kg |
| Class 150 / DN650 (NPS 26) | 1143 | 1245 | 633 | 800 | 700 | 600 | 3200 kg |
| Class 150 / DN700 (NPS 28) | 1245 | 1346 | 684 | 960 | 780 | 700 | 4000 kg |
| Class 150 / DN750 (NPS 30) | 1295 | 1397 | 735 | 1200 | 830 | 700 | 4800 kg |
| Class 150 / DN800 (NPS 32) | 1372 | 1524 | 779 | 1380 | 870 | 700 | 5800 kg |
| Class 150 / DN900 (NPS 36) | 1524 | 1727 | 874 | 1650 | 970 | 700 | 8000 kg |
| Class 300 / DN100 (NPS 4) | 305 | 305 | 100 | 205 | 140 | 300 | 70 kg |
| Class 300 / DN125 (NPS 5) | 381 | 381 | 127 | 260 | 170 | 300 | 95 kg |
| Class 300 / DN150 (NPS 6) | 403 | 457 | 150 | 285 | 192 | 400 | 128 kg |
| Class 300 / DN200 (NPS 8) | 502 | 521 | 201 | 325 | 246 | 400 | 234 kg |
| Class 300 / DN250 (NPS 10) | 568 | 559 | 252 | 370 | 303 | 500 | 403 kg |
| Class 300 / DN300 (NPS 12) | 648 | 635 | 303 | 415 | 348 | 500 | 602 kg |
| Class 300 / DN350 (NPS 14) | 762 | 762 | 334 | 455 | 378 | 600 | 803 kg |
| Class 300 / DN400 (NPS 16) | 838 | 838 | 385 | 500 | 429 | 600 | 1273 kg |
| Class 300 / DN450 (NPS 18) | 914 | 914 | 436 | 540 | 518 | 600 | 1450 kg |
| Class 300 / DN500 (NPS 20) | 991 | 991 | 487 | 590 | 540 | 600 | 1700 kg |
| Class 300 / DN600 (NPS 24) | 1143 | 1143 | 589 | 690 | 650 | 600 | 3100 kg |
| Class 300 / DN650 (NPS 26) | 1245 | 1245 | 633 | 800 | 750 | 700 | 4500 kg |
| Class 300 / DN700 (NPS 28) | 1346 | 1346 | 684 | 960 | 800 | 700 | 6000 kg |
| Class 300 / DN750 (NPS 30) | 1397 | 1397 | 735 | 1200 | 860 | 700 | 7500 kg |
| Class 300 / DN800 (NPS 32) | 1524 | 1524 | 779 | 1380 | 900 | 800 | 9000 kg |
| Class 300 / DN900 (NPS 36) | 1727 | 1727 | 874 | 1650 | 1020 | 800 | 12000 kg |

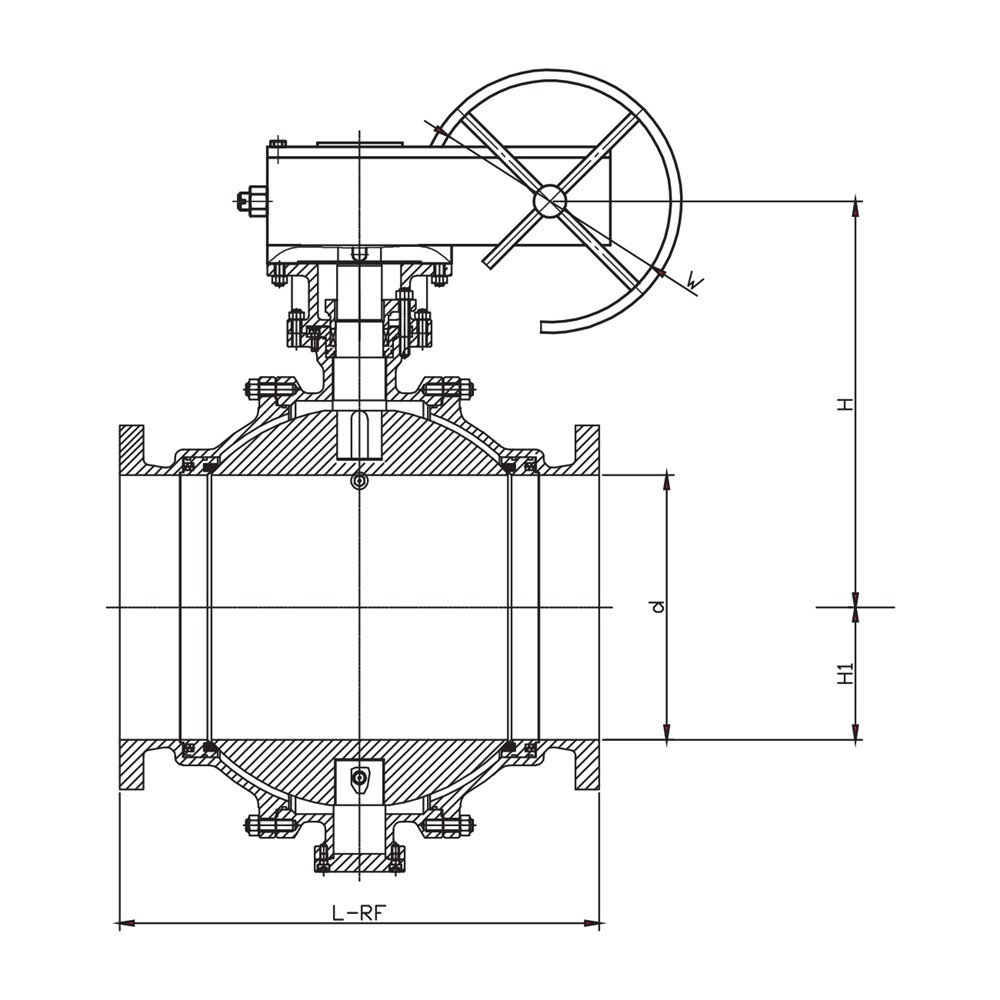

Technical drawings(1 page)
Actuation options
Approvals
Features
- Bolted cover construction
- Two-piece or three-piece body
- Anti-blowout stem
- Fire-safe design
- Anti-static design
- Trunnion-mounted ball
- Reinforced PTFE seats
- Available in multiple body material configurations including WCB/13Cr, WCB/304, WCB/316, CF8/304, CF8M/316
Description
Cast steel trunnion-mounted ball valve with bolted cover, two-piece or three-piece body, anti-blowout stem, fire-safe and anti-static design. Available in Class 150 and Class 300. Designed and manufactured to API 6D and API 608 with raised-face flanged or butt-weld end connections.
Selection notes
This ball valve is a trunnion mounted and cast steel pattern, supplied for flanged and butt weld installation.
Sizes run DN100 to DN900, in Class 150, Class 300.
The body is offered in ASTM A216 WCB, ASTM A351 CF8 and ASTM A351 CF8M, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Reinforced PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Oil & Gas and Industrial Process.
Built to API 6D, API 608, ANSI B16.5, ANSI B16.25 and API 1607.
Available pressure classes
Pressure classes this product is rated to.
