API Floating Ball Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN250
- Pressure Class
- Class 150, Class 300, Class 600, Class 900, Class 1500
- End connection
- Flanged · Butt weld
Standards
- Design & manufacture
- API 608, BS5351, API607
- Inspection & test
- API6D, API598
- Face to face
- ANSI B16.10
- Flange & end dimension
- ANSI B16.5, JISB2212-2214, ANSI B16.25
- Other standards
- JIS B 2002, API6 FA, JIS B2003
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
Material grade
Offered in complete material setups. Pick one to set every part to the matched set, or choose parts individually below.
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Gasket
- Body Bolting
- Body Nut
- Closure
- Gland Flange
- Lever
- Stop Collar
- Thrust Washer
Dimensions per size(46 sizes)
| Size | d (mm) | L_RF (mm) | L_RTJ (mm) | H_handwheel (mm) | W_handwheel (mm) | H_gearbox (mm) | W_gearbox (mm) | Weight_gearbox (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Class 150 / DN15 (NPS 1/2) | 13 | 108 | 119 | 140 | 85 | — | — | — | 3 kg |
| Class 150 / DN20 (NPS 3/4) | 19 | 117 | 130 | 140 | 90 | — | — | — | 3.2 kg |
| Class 150 / DN25 (NPS 1) | 25 | 127 | 140 | 150 | 99 | — | — | — | 3.5 kg |
| Class 150 / DN32 (NPS 1-1/4) | 32 | 140 | 153 | 180 | 105 | — | — | — | 5 kg |
| Class 150 / DN40 (NPS 1-1/2) | 38 | 165 | 178 | 300 | 165 | — | — | — | 6 kg |
| Class 150 / DN50 (NPS 2) | 49 | 178 | 191 | 350 | 140 | — | — | — | 11 kg |
| Class 150 / DN65 (NPS 2-1/2) | 62 | 190 | 203 | 350 | 180 | — | — | — | 13.5 kg |
| Class 150 / DN80 (NPS 3) | 75 | 203 | 216 | 500 | 235 | — | — | — | 19 kg |
| Class 150 / DN100 (NPS 4) | 100 | 229 | 242 | 500 | 250 | 305 | 380 | 53 | 29 kg |
| Class 150 / DN125 (NPS 5) | 127 | 356 | 369 | 800 | 280 | 305 | 405 | 79 | 49 kg |
| Class 150 / DN150 (NPS 6) | 150 | 394 | 407 | 800 | 310 | 305 | 460 | 102 | 65 kg |
| Class 150 / DN200 (NPS 8) | 201 | 457 | 470 | 1000 | 350 | 305 | 550 | 185 | 115 kg |
| Class 150 / DN250 (NPS 10) | 252 | 533 | 546 | — | — | 400 | 706 | — | 280 kg |
| Class 300 / DN15 (NPS 1/2) | 13 | 140 | 151 | 140 | 85 | — | — | — | 3 kg |
| Class 300 / DN20 (NPS 3/4) | 19 | 152 | 165 | 140 | 90 | — | — | — | 5 kg |
| Class 300 / DN25 (NPS 1) | 25 | 165 | 178 | 150 | 99 | — | — | — | 6 kg |
| Class 300 / DN32 (NPS 1-1/4) | 32 | 178 | 191 | 180 | 105 | — | — | — | 8 kg |
| Class 300 / DN40 (NPS 1-1/2) | 38 | 190 | 203 | 200 | 126 | — | — | — | 11 kg |
| Class 300 / DN50 (NPS 2) | 49 | 216 | 232 | 250 | 142 | — | — | — | 16 kg |
| Class 300 / DN65 (NPS 2-1/2) | 62 | 241 | 257 | 300 | 165 | — | — | — | 23 kg |
| Class 300 / DN80 (NPS 3) | 74 | 283 | 299 | 350 | 178 | — | — | 52 | 30 kg |
| Class 300 / DN100 (NPS 4) | 100 | 305 | 321 | 500 | 230 | 305 | 330 | 76 | 47 kg |
| Class 300 / DN125 (NPS 5) | 127 | 381 | 397 | 800 | 280 | 305 | 380 | 124 | 74 kg |
| Class 300 / DN150 (NPS 6) | 150 | 403 | 419 | 800 | 310 | 305 | 420 | 163 | 107 kg |
| Class 300 / DN200 (NPS 8) | 201 | 502 | 518 | 1000 | 350 | 305 | 480 | 267 | 153 kg |
| Class 600 / DN15 (NPS 1/2) | 13 | 165 | 164 | 140 | 79 | — | 560 | — | 5 kg |
| Class 600 / DN20 (NPS 3/4) | 19 | 190 | 190 | 140 | 83 | — | — | — | 7 kg |
| Class 600 / DN25 (NPS 1) | 25 | 216 | 216 | 200 | 114 | — | — | — | 9 kg |
| Class 600 / DN32 (NPS 1-1/4) | 32 | 229 | 229 | 200 | 120 | — | — | — | 13 kg |
| Class 600 / DN40 (NPS 1-1/2) | 38 | 241 | 241 | 250 | 125 | — | — | — | 17 kg |
| Class 600 / DN50 (NPS 2) | 49 | 292 | 295 | 300 | 156 | — | — | — | 25 kg |
| Class 600 / DN65 (NPS 2-1/2) | 62 | 330 | 333 | 350 | 172 | — | — | — | 42 kg |
| Class 600 / DN80 (NPS 3) | 74 | 356 | 359 | 500 | 220 | 305 | 370 | 76 | 56 kg |
| Class 600 / DN100 (NPS 4) | 100 | 432 | 435 | 650 | 250 | 305 | 400 | 123 | 85 kg |
| Class 900 / DN15 (NPS 1/2) | 13 | 216 | 216 | 150 | 98 | — | — | — | 9 kg |
| Class 900 / DN20 (NPS 3/4) | 19 | 229 | 229 | 150 | 105 | — | — | — | 13 kg |
| Class 900 / DN25 (NPS 1) | 25 | 254 | 254 | 200 | 110 | — | — | — | 16 kg |
| Class 900 / DN32 (NPS 1-1/4) | 32 | 279 | 279 | 250 | 120 | — | — | — | 24 kg |
| Class 900 / DN40 (NPS 1-1/2) | 38 | 305 | 305 | 250 | 125 | — | — | — | 31 kg |
| Class 900 / DN50 (NPS 2) | 49 | 368 | 371 | 350 | 160 | — | — | — | 45 kg |
| Class 1500 / DN15 (NPS 1/2) | 13 | 216 | 216 | 182 | 98 | — | — | — | 10 kg |
| Class 1500 / DN20 (NPS 3/4) | 19 | 229 | 229 | 250 | 125 | — | — | — | 14 kg |
| Class 1500 / DN25 (NPS 1) | 25 | 254 | 254 | 250 | 130 | — | — | — | 17 kg |
| Class 1500 / DN32 (NPS 1-1/4) | 32 | 279 | 279 | 300 | 155 | — | — | — | 25 kg |
| Class 1500 / DN40 (NPS 1-1/2) | 38 | 305 | 305 | 350 | 180 | — | — | — | 33 kg |
| Class 1500 / DN50 (NPS 2) | 49 | 368 | 371 | 450 | 225 | — | — | — | 48 kg |

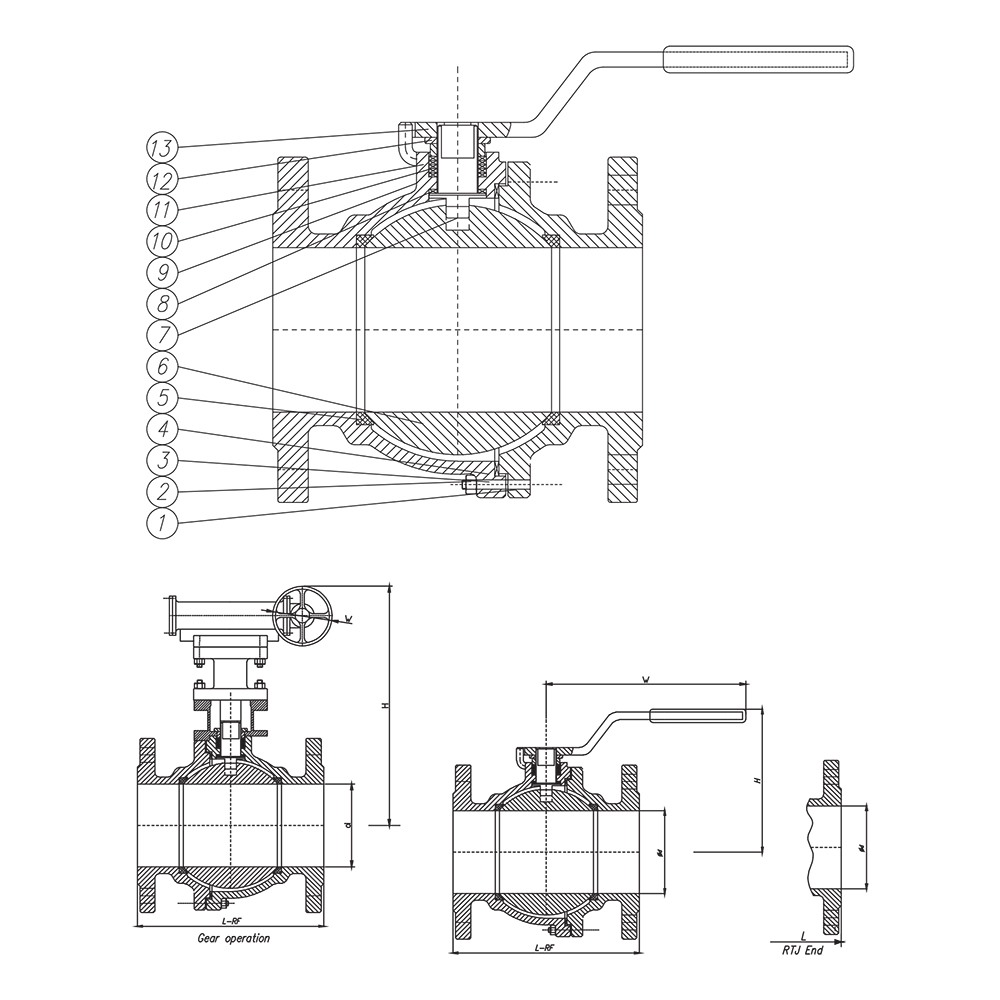

Technical drawings(1 page)
Actuation options
Features
- Elastic sealing ring design provides seat seal load proportional to medium pressure
- Fire-safe secondary metal seal prevents internal and external leakage in the event of non-metallic seat seal damage by fire; meets API607 requirement
- Anti-blowout stem assembled from underneath with backseat; sealing force increases with medium pressure
- Lockable lever to prevent wrong operation in fully open or closed position
- Anti-static device available to derive electric charge accumulated on the ball via static channel between ball and stem, or stem and body
- Two-piece bolted bonnet body construction
- Full or reduced bore options available
- Stainless steel ball as standard
Description
A two-piece bolted bonnet floating ball valve with full or reduced bore, available in ANSI pressure classes 150 through 1500. Features an anti-blowout stem assembled from underneath with backseat sealing, fire-safe secondary metal seal design, and anti-static device option. Designed and manufactured to API 608 and API 6D.
Selection notes
This ball valve is a floating ball, two-piece body, bolted bonnet and api pattern, supplied for flanged and butt weld installation.
Sizes run DN15 to DN250, in Class 150, Class 300, Class 600, Class 900, Class 1500.
The body is offered in ASTM A216 WCB, ASTM A351 CF8 and ASTM A351 CF8M, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Reinforced PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Oil & Gas and Industrial Process.
Built to API 608, API6D, BS5351, ANSI B16.10 and JIS B 2002.
Supplier remarks
- Noted: the chart above only lists out some common composition of steel ball valve parts, we may provide other different parts material composition according to the customer's request or the actual valve working condition.
- Noted: We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
Available pressure classes
Pressure classes this product is rated to.
