Ball Valve

Double Eccentric Ball Valve

Specifications

Confirmed at quote
Size Range
DN100 to DN1600
Pressure Class
PN6, PN10, PN16
End connection
Flanged

Standards

Inspection & test
EN 12266
Flange & end dimension
EN 1092-2
Mounting
ISO 5211, ISO 5210

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

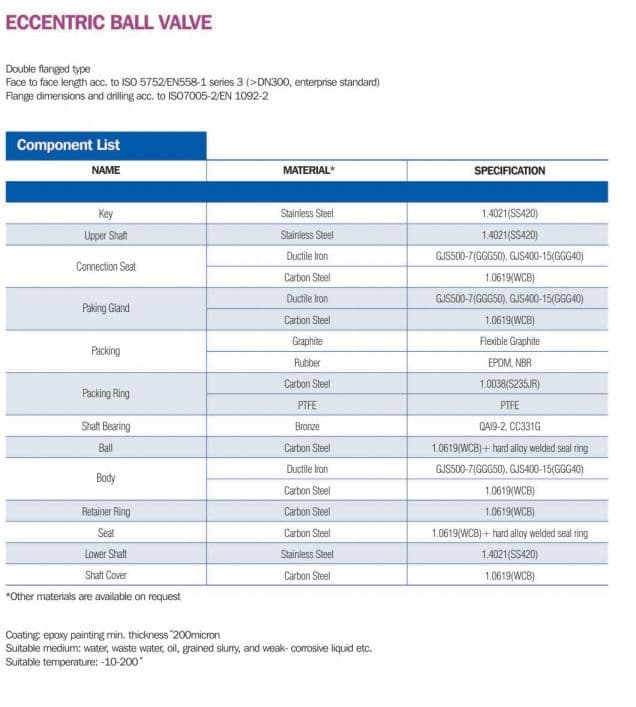

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Ball
Seat
Packing
Connection Seat
Key
Lower Shaft
Packing Gland
Packing Ring
Retainer Ring
Shaft Bearing
Shaft Cover
Upper Shaft

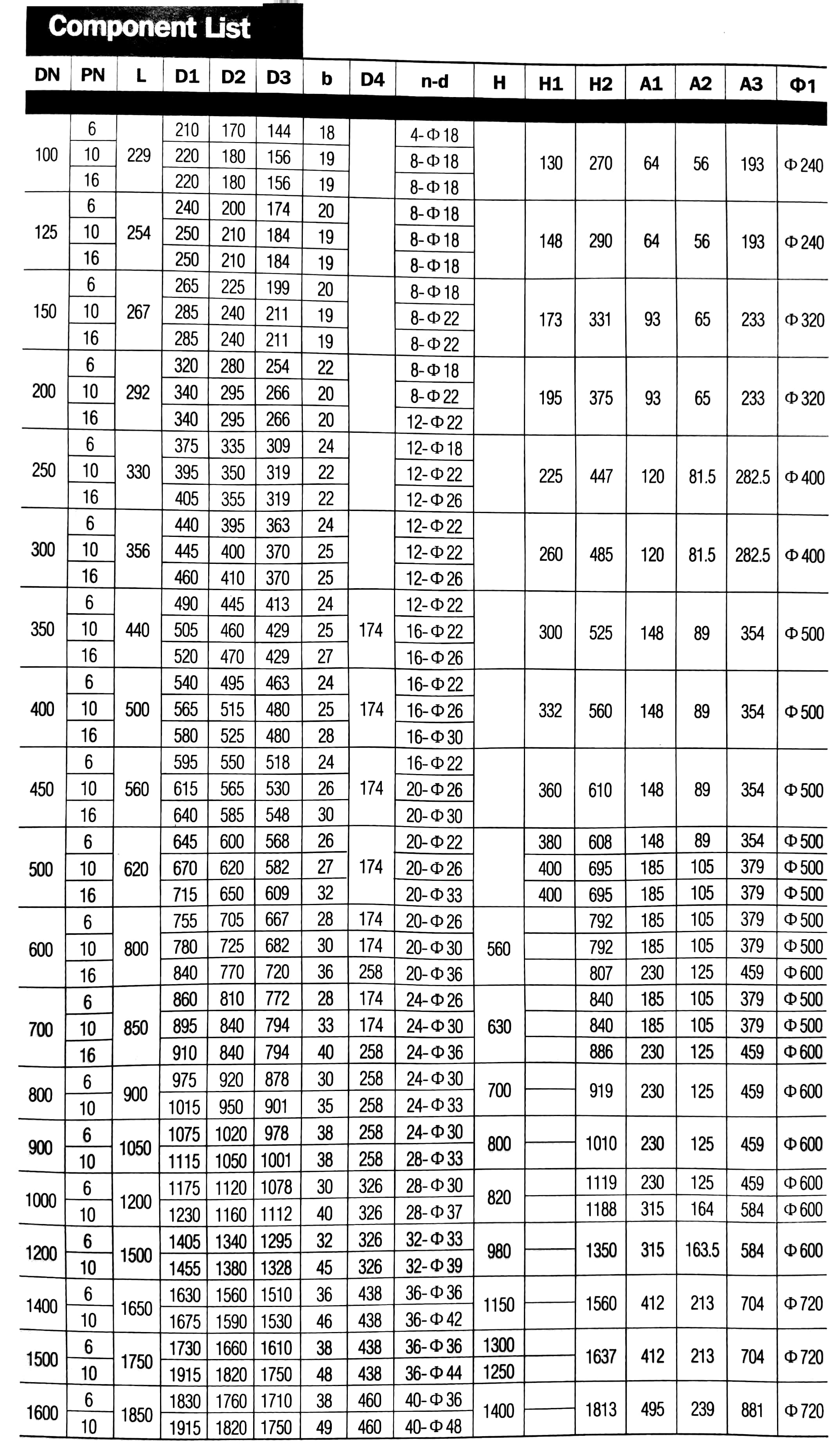

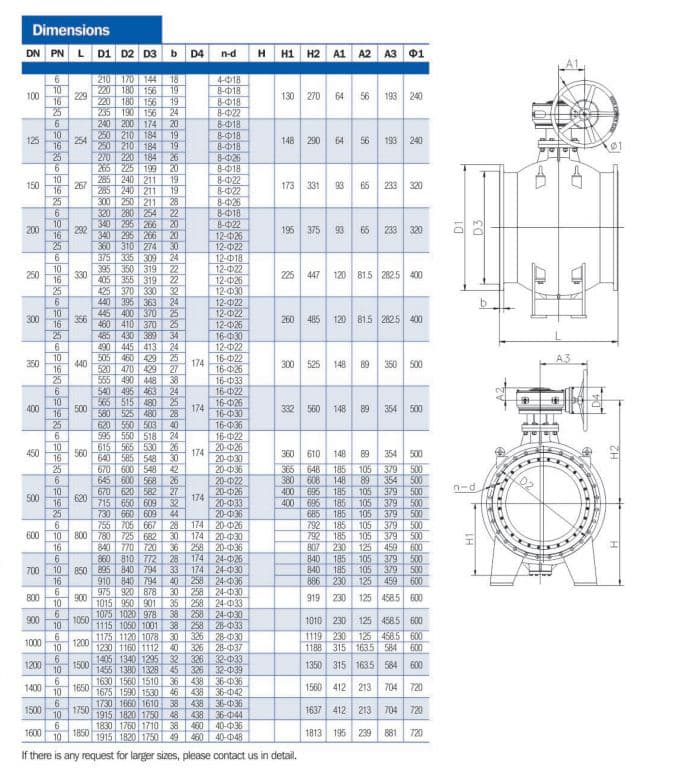

Dimensions per size(50 sizes)
SizePNL (mm)D1 (mm)D2 (mm)D3 (mm)b (mm)n-dH (mm)H2 (mm)A1 (mm)A2 (mm)A3 (mm)Φ1 (mm)D4 (mm)Weight
DN100PN6229210170144184-Φ181302706456193240-
—
DN100PN10229220180156198-Φ181302706456193240-
—
DN100PN16229220180156198-Φ181302706456193240-
—
DN125PN6254240200174208-Φ181482906456193240-
—
DN125PN10254250210184198-Φ181482906456193240-
—
DN125PN16254250210184198-Φ181482906456193240-
—
DN150PN6267265225199208-Φ181733319365233320-
—
DN150PN10267285240211198-Φ221733319365233320-
—
DN150PN16267285240211198-Φ221733319365233320-
—
DN200PN6292320280254228-Φ181953759365233320-
—
DN200PN10292340295266208-Φ221953759365233320-
—
DN200PN162923402952662012-Φ221953759365233320-
—
DN250PN63303753353092412-Φ1822544712081.5282.5400-
—
DN250PN103303953503192212-Φ2222544712081.5282.5400-
—
DN250PN163304053553192212-Φ2622544712081.5282.5400-
—
DN300PN63564403953632412-Φ2226048512081.5282.5400-
—
DN300PN103564454003702512-Φ2226048512081.5282.5400-
—
DN300PN163564604103702512-Φ2626048512081.5282.5400-
—
DN350PN64404904454132412-Φ2230052514889354500174
—
DN350PN104405054604292516-Φ2230052514889354500174
—
DN350PN164405204704292716-Φ2630052514889354500174
—
DN400PN65005404954632416-Φ2233256014889354500174
—
DN400PN105005655154802516-Φ2633256014889354500174
—
DN400PN165005805254802816-Φ3033256014889354500174
—
DN450PN65605955505182416-Φ2236061014889354500174
—
DN450PN105606155655302620-Φ2636061014889354500174
—
DN450PN165606405855483020-Φ3036061014889354500174
—
DN500PN66206456005682620-Φ2238060814889354500174
—
DN500PN106206706205822720-Φ26400695185105379500174
—
DN500PN166207156506093220-Φ33400695185105379500174
—
DN600PN68007557056672820-Φ26560792185105379500174
—
DN600PN108007807256823020-Φ30560792185105379500174
—
DN600PN168008407707203620-Φ36560807230125459600258
—
DN700PN68508608107722824-Φ26630840185105379500174
—
DN700PN108508958407943324-Φ30630840185105379500174
—
DN700PN168509108407944024-Φ36630886230125459600258
—
DN800PN69009759208783024-Φ30700919230125459600258
—
DN800PN1090010159509013524-Φ33700919230125459600258
—
DN900PN61050107510209783824-Φ308001010230125459600258
—
DN900PN1010501115105010013828-Φ338001010230125459600258
—
DN1000PN612001175112010783028-Φ308201119230125459600326
—
DN1000PN1012001230116011124028-Φ378201188315164584600326
—
DN1200PN615001405134012953232-Φ339801350315163.5584600326
—
DN1200PN1015001455138013284532-Φ399801350315163.5584600326
—
DN1400PN616501630156015103636-Φ3611501560412213704720438
—
DN1400PN1016501675159015304636-Φ4211501560412213704720438
—
DN1500PN617501730166016103836-Φ3613001637412213704720438
—
DN1500PN1017501915182017504836-Φ4412501637412213704720438
—
DN1600PN618501830176017103840-Φ3614001813495239881720460
—
DN1600PN1018501915182017504940-Φ4814001813495239881720460
—

Operating media

WaterGeneral pipeline media

Actuation options

Manual gearboxElectric 230V ACPneumatic single-actingHydraulic

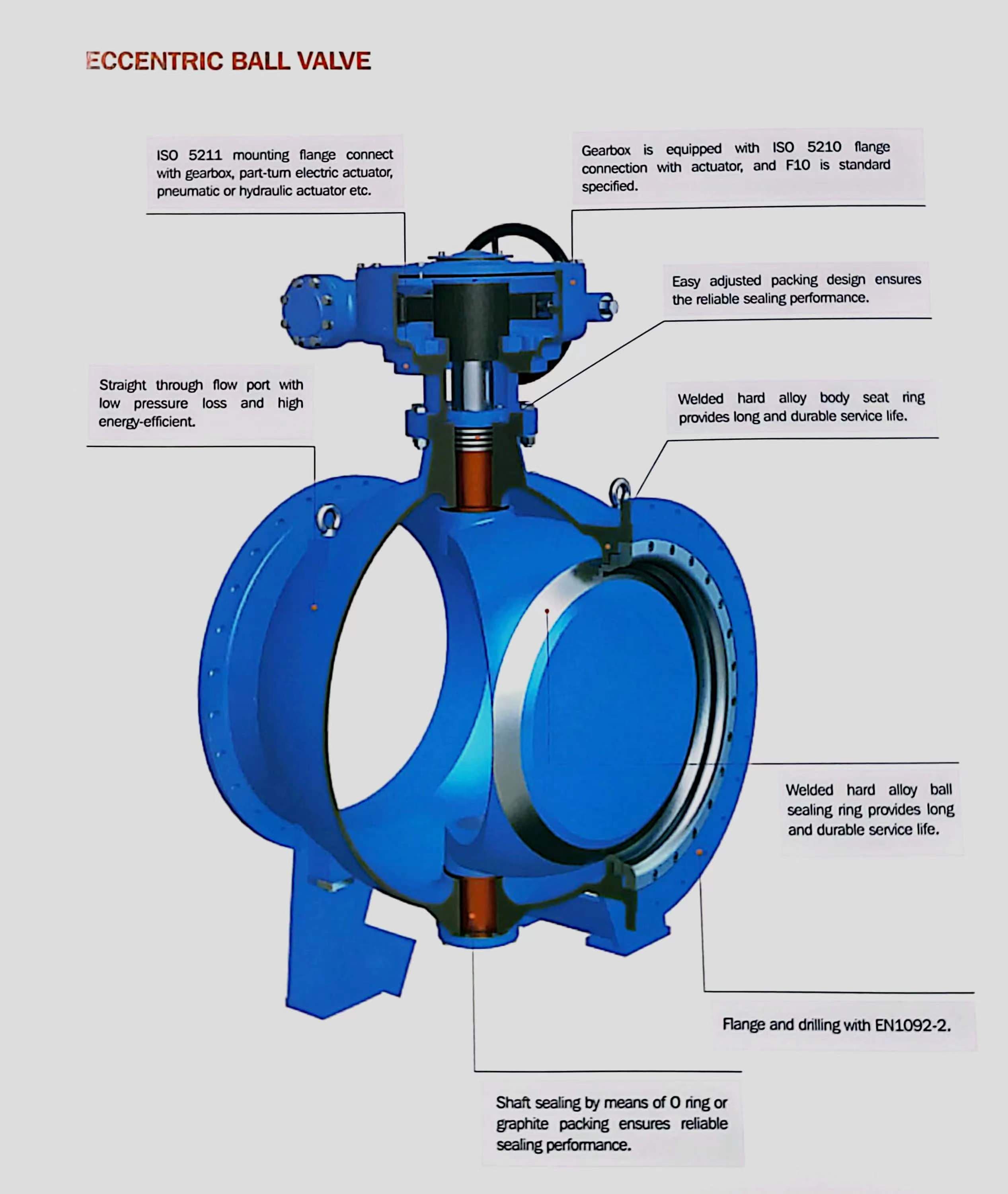

Features

  • Double eccentric semi-ball design with stable performance and self-compensating wear mechanism
  • Straight-through flow port with large flow area and near-zero head loss
  • Welded hard alloy body seat ring for wear and corrosion resistance
  • Welded hard alloy ball sealing ring for wear and corrosion resistance
  • Valve disc concealed within valve cavity in the open position, preventing direct media impingement on sealing surface
  • Side-entry design allows maintenance without full removal from pipeline
  • Adjustable packing design for reliable shaft sealing
  • Shaft sealed by O-ring or graphite packing
  • Self-cleaning capability for scale removal
  • ISO 5211 mounting flange for actuator compatibility
  • Gearbox equipped with ISO 5210 flange connection; F10 is standard
  • Flange face and drilling to EN 1092-2

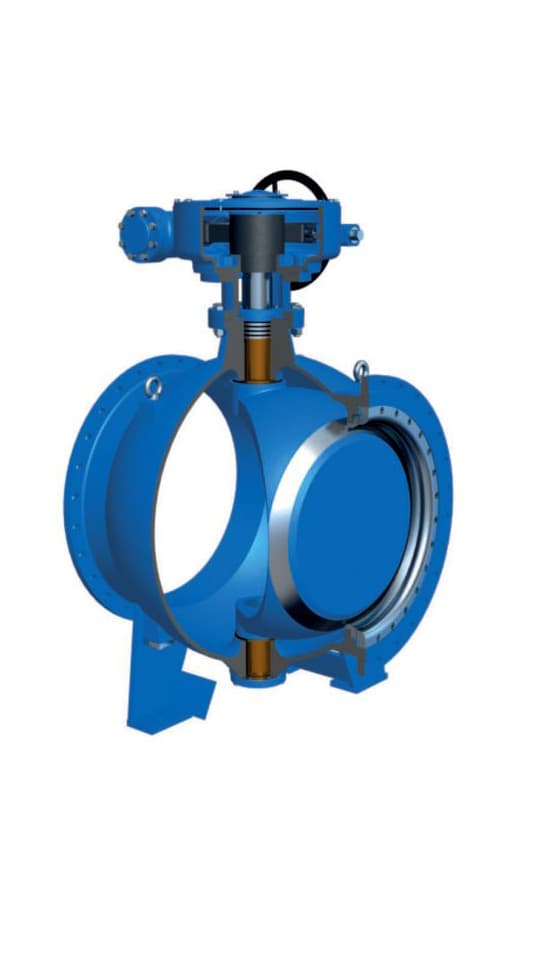

Description

A double flange eccentric semi-ball valve with a straight-through flow port and large flow area. The body seat ring and ball sealing ring are fitted with welded hard alloy seal faces for wear and corrosion resistance. Shaft sealing is achieved by O-ring or graphite packing, and the side-entry design allows maintenance without full removal from the pipeline.

Selection notes

This ball valve is a eccentric, semi- and double eccentric pattern, supplied for flanged installation.

Sizes run DN100 to DN1600, in PN6, PN10, PN16.

The body is offered in GJS500-7 (GGG50), GJS400-15 (GGG40) and 1.0619 (WCB), so the grade can be matched to the service rather than the other way round.

Seat and trim options are 1.0619 (WCB) + hard alloy welded seal ring. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water and general pipeline media.

Built to EN 12266, ISO 5211, ISO 5210 and EN 1092-2.

Supplier remarks

  • Click to download (design features document referenced but not specified)
  • Customised services available for groups and individuals

Available pressure classes

Pressure classes this product is rated to.

PN6PN10PN16
