Forged Steel Trunnion Mounted Ball Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN1200
- Pressure Class
- Class 150, Class 300, Class 600, Class 900
- End connection
- Flanged · Butt weld · Threaded · Socket weld
- Operating temperature
- -196°C to 540°C
Standards
- Design & manufacture
- API 6D, ASME B16.34, BS 5351, ISO 17292
- Inspection & test
- API 598, BS 12569
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Gasket
- Gland
- Nut
- Stud
Operating media
Typical applications
- Oil and gas
- Natural gas
- Chemical
- Petrochemical
- Power plant
- Metallurgy
- Papermaking
Actuation options
Features
- Suitable for high temperature and high pressure corrosion resistant environments
- Anti-static design ensuring safety and stability
- Ball surface and seat sealing surface tightly connected for effective sealing
- Movable metal seat structure with leaf spring preload for easy operation
- Trunnion mounted design
Description

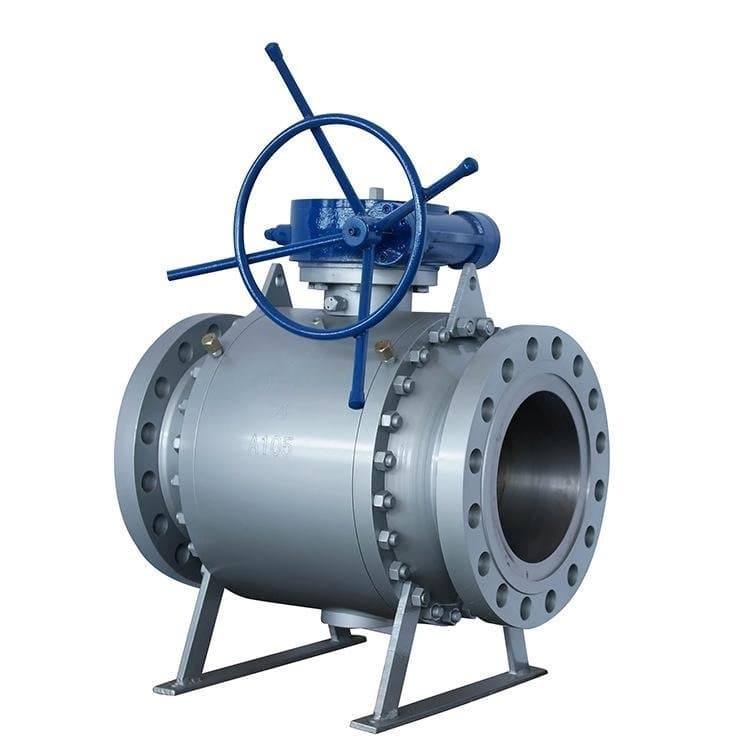

Trunnion mounted ball valve manufactured from forged steel, designed for high temperature, high pressure and corrosion resistant service. Features a movable metal seat structure with leaf spring preload and anti-static design. Available in a wide range of sizes, pressure classes and material configurations for oil, gas, chemical and power plant applications.
Selection notes
This ball valve is a trunnion mounted and forged steel pattern, supplied for flanged, butt weld, threaded and socket weld installation.
Sizes run DN50 to DN1200, in Class 150, Class 300, Class 600, Class 900.
The body is offered in A105, F304, F304L and F316, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE, RPTFE, NYLON and PPL. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include oil, gas, natural gas, chemical media and petrochemical media.
It is catalogued for Oil & Gas and Industrial Process.
Working temperature is -196°C to 540°C.
Built to API 6D, ASME B16.34, BS 5351, ISO 17292 and API 598.
