T Type Strainer

Name: T Type Strainer
Brand: Euro Flow Control
SKU: EFC-122
Availability: InStock

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15-DN600
Pressure Class: PN6/PN16
Standards: TS 11494, DIN 3202 F1, EN 558 Serie 1, EN 1092-2 /B, EN 12266, TS 810, DIN 2501
End connection: EN 1092-2/B flange
Face-to-face: EN 558 Serie 1, DIN 3202 F1

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
gasket
bolt
filter
plug

Dimensions per size(14 sizes)

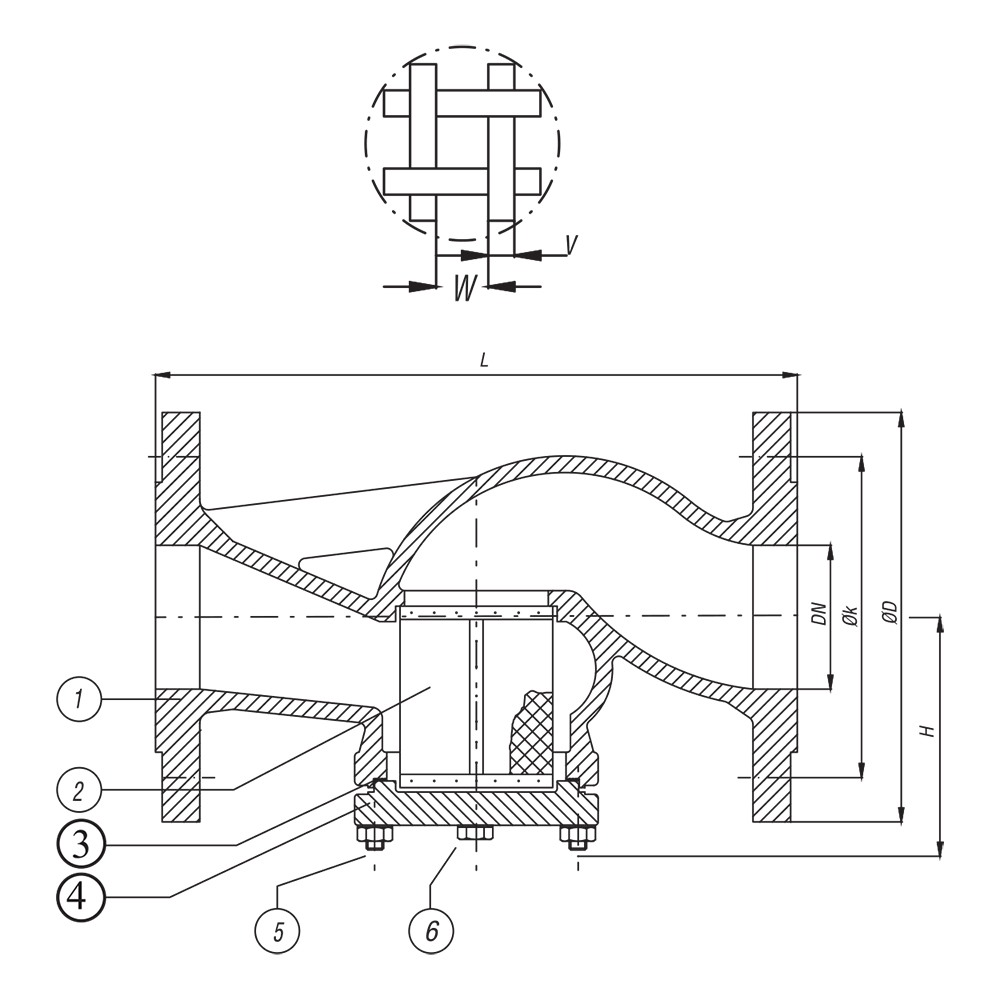

Size	L	H_min	H_max	Ba	S	v	W	D1	PN6 D	PN6 k	PN10 D	PN10 k	PN16 D	PN16 k	Weight
DN15	130 mm	75 mm	115 mm	52 mm	25 mm	0.35 mm	0.65 mm	R7/8"	80 mm	55 mm	95 mm	65 mm	95 mm	65 mm	1.97 kg
DN20	150 mm	75 mm	125 mm	62 mm	25 mm	0.35 mm	0.65 mm	R7/8"	90 mm	65 mm	105 mm	75 mm	105 mm	75 mm	2.98 kg
DN25	160 mm	85 mm	150 mm	72 mm	29 mm	0.35 mm	0.65 mm	R7/8"	100 mm	75 mm	115 mm	85 mm	115 mm	85 mm	3.7 kg
DN32	180 mm	90 mm	160 mm	77 mm	38 mm	0.35 mm	0.85 mm	R7/8"	120 mm	90 mm	140 mm	100 mm	140 mm	100 mm	5.6 kg
DN40	200 mm	95 mm	170 mm	97 mm	50 mm	0.4 mm	0.85 mm	R7/8"	130 mm	100 mm	150 mm	110 mm	150 mm	110 mm	7.6 kg
DN50	230 mm	100 mm	185 mm	112 mm	60 mm	0.4 mm	0.85 mm	R7/8"	140 mm	110 mm	165 mm	125 mm	165 mm	125 mm	9.8 kg
DN65	290 mm	135 mm	250 mm	168 mm	65 mm	0.4 mm	0.85 mm	R7/8"	160 mm	130 mm	185 mm	145 mm	185 mm	145 mm	15.7 kg
DN80	310 mm	145 mm	280 mm	188 mm	85 mm	0.4 mm	0.85 mm	R7/8"	190 mm	150 mm	200 mm	160 mm	200 mm	160 mm	24.9 kg
DN100	350 mm	170 mm	330 mm	218 mm	105 mm	0.4 mm	0.85 mm	R7/8"	210 mm	170 mm	220 mm	180 mm	220 mm	180 mm	34 kg
DN125	400 mm	205 mm	385 mm	243 mm	130 mm	0.5 mm	0.93 mm	R7/8"	240 mm	210 mm	250 mm	210 mm	250 mm	210 mm	43 kg
DN150	480 mm	225 mm	400 mm	281 mm	160 mm	0.5 mm	0.93 mm	R7/8"	265 mm	225 mm	285 mm	240 mm	285 mm	240 mm	54 kg
DN200	600 mm	270 mm	500 mm	317 mm	210 mm	0.5 mm	0.93 mm	R7/8"	320 mm	280 mm	340 mm	295 mm	340 mm	295 mm	118 kg
DN250	730 mm	290 mm	580 mm	485 mm	260 mm	0.5 mm	0.93 mm	R7/8"	375 mm	335 mm	395 mm	350 mm	405 mm	355 mm	177 kg
DN300	850 mm	360 mm	700 mm	520 mm	310 mm	0.5 mm	0.93 mm	R1"	400 mm	395 mm	445 mm	400 mm	460 mm	410 mm	275 kg

Features

T-type body configuration for pipeline straining
Removable bonnet for filter element access and cleaning
Drain plug provided on body
Filter element in AISI 304 stainless steel
Available in cast iron (GG 25) and ductile iron (GGG-40/50) body options
Production available up to DN600
