Name: Y Type Strainer (Cast Iron)
Brand: Euro Flow Control
SKU: EFC-120

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN600
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: TS 11494
Inspection & test: EN 12266
Face to face: EN 558 Serie 1, DIN 3202 F1
Flange & end dimension: DIN EN 1092-1-2 PN10, DIN EN 1092-1-2 PN16, DIN EN 1092-1-2 PN25, DIN EN 1092-1-2 PN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Gasket
Bolt
Filter
Plug

Dimensions per size(76 sizes)

Size	D (mm)	k (mm)	L (mm)	H_min (mm)	H_max (mm)	Weight
DN15 (PN10)	95	65	130	60	100	1.97 kg
DN15 (PN16)	95	65	130	60	100	1.97 kg
DN15 (PN25)	95	65	130	60	100	1.97 kg
DN15 (PN40)	95	65	130	60	100	1.97 kg
DN20 (PN10)	105	75	150	70	120	2.98 kg
DN20 (PN16)	105	75	150	70	120	2.98 kg
DN20 (PN25)	105	75	150	70	120	2.98 kg
DN20 (PN40)	105	75	150	70	120	2.98 kg
DN25 (PN10)	115	85	160	80	140	3.7 kg
DN25 (PN16)	115	85	160	80	140	3.7 kg
DN25 (PN25)	115	85	160	80	140	3.7 kg
DN25 (PN40)	115	85	160	80	140	3.7 kg
DN32 (PN10)	140	100	180	85	150	5.6 kg
DN32 (PN16)	140	100	180	85	150	5.6 kg
DN32 (PN25)	140	100	180	85	150	5.6 kg
DN32 (PN40)	140	100	180	85	150	5.6 kg
DN40 (PN10)	150	110	200	120	190	7.6 kg
DN40 (PN16)	150	110	200	120	190	7.6 kg
DN40 (PN25)	150	110	200	120	190	7.6 kg
DN40 (PN40)	150	110	200	120	190	7.6 kg
DN50 (PN10)	165	125	230	135	220	9.8 kg
DN50 (PN16)	165	125	230	135	220	9.8 kg
DN50 (PN25)	165	125	230	135	220	9.8 kg
DN50 (PN40)	165	125	230	135	220	9.8 kg
DN65 (PN10)	185	145	290	185	310	15.7 kg
DN65 (PN16)	185	145	290	185	310	15.7 kg
DN65 (PN25)	185	145	290	185	310	15.7 kg
DN65 (PN40)	185	145	290	185	310	15.7 kg
DN80 (PN10)	200	160	310	205	340	24.9 kg
DN80 (PN16)	200	160	310	205	340	24.9 kg
DN80 (PN25)	200	160	310	205	340	24.9 kg
DN80 (PN40)	200	160	310	205	340	24.9 kg
DN100 (PN10)	220	180	350	245	410	34 kg
DN100 (PN16)	220	180	350	245	410	34 kg
DN100 (PN25)	235	190	350	245	410	34 kg
DN100 (PN40)	235	190	350	245	410	34 kg
DN125 (PN10)	250	210	400	290	470	43 kg
DN125 (PN16)	250	210	400	290	470	43 kg
DN125 (PN25)	270	220	400	290	470	43 kg
DN125 (PN40)	270	220	400	290	470	43 kg
DN150 (PN10)	285	240	480	330	530	54 kg
DN150 (PN16)	285	240	480	330	530	54 kg
DN150 (PN25)	300	250	480	330	530	54 kg
DN150 (PN40)	300	250	480	330	530	54 kg
DN200 (PN10)	340	295	600	390	620	118 kg
DN200 (PN16)	340	295	600	390	620	118 kg
DN200 (PN25)	360	310	600	390	620	118 kg
DN200 (PN40)	375	320	600	390	620	118 kg
DN250 (PN10)	395	350	730	530	850	177 kg
DN250 (PN16)	405	355	730	530	850	177 kg
DN250 (PN25)	425	370	730	530	850	177 kg
DN250 (PN40)	450	385	730	530	850	177 kg
DN300 (PN10)	445	400	850	560	1050	275 kg
DN300 (PN16)	460	410	850	560	1050	275 kg
DN300 (PN25)	485	430	850	560	1050	275 kg
DN300 (PN40)	515	450	850	560	1050	275 kg
DN350 (PN10)	505	460	980	620	1100	310 kg
DN350 (PN16)	520	470	980	620	1100	310 kg
DN350 (PN25)	555	490	980	620	1100	310 kg
DN350 (PN40)	580	510	980	620	1100	310 kg
DN400 (PN10)	565	515	1100	710	1210	418 kg
DN400 (PN16)	580	525	1100	710	1210	418 kg
DN400 (PN25)	620	550	1100	710	1210	418 kg
DN400 (PN40)	660	585	1100	710	1210	418 kg
DN450 (PN10)	615	565	1200	800	1400	495 kg
DN450 (PN16)	640	585	1200	800	1400	495 kg
DN450 (PN25)	670	600	1200	800	1400	495 kg
DN450 (PN40)	685	610	1200	800	1400	495 kg
DN500 (PN10)	670	620	1250	985	1700	1100 kg
DN500 (PN16)	715	650	1250	985	1700	1100 kg
DN500 (PN25)	730	660	1250	985	1700	1100 kg
DN500 (PN40)	755	670	1250	985	1700	1100 kg
DN600 (PN10)	780	725	1450	1100	1900	1300 kg
DN600 (PN16)	840	770	1450	1100	1900	1300 kg
DN600 (PN25)	845	770	1450	1100	1900	1300 kg
DN600 (PN40)	890	795	1450	1100	1900	1300 kg

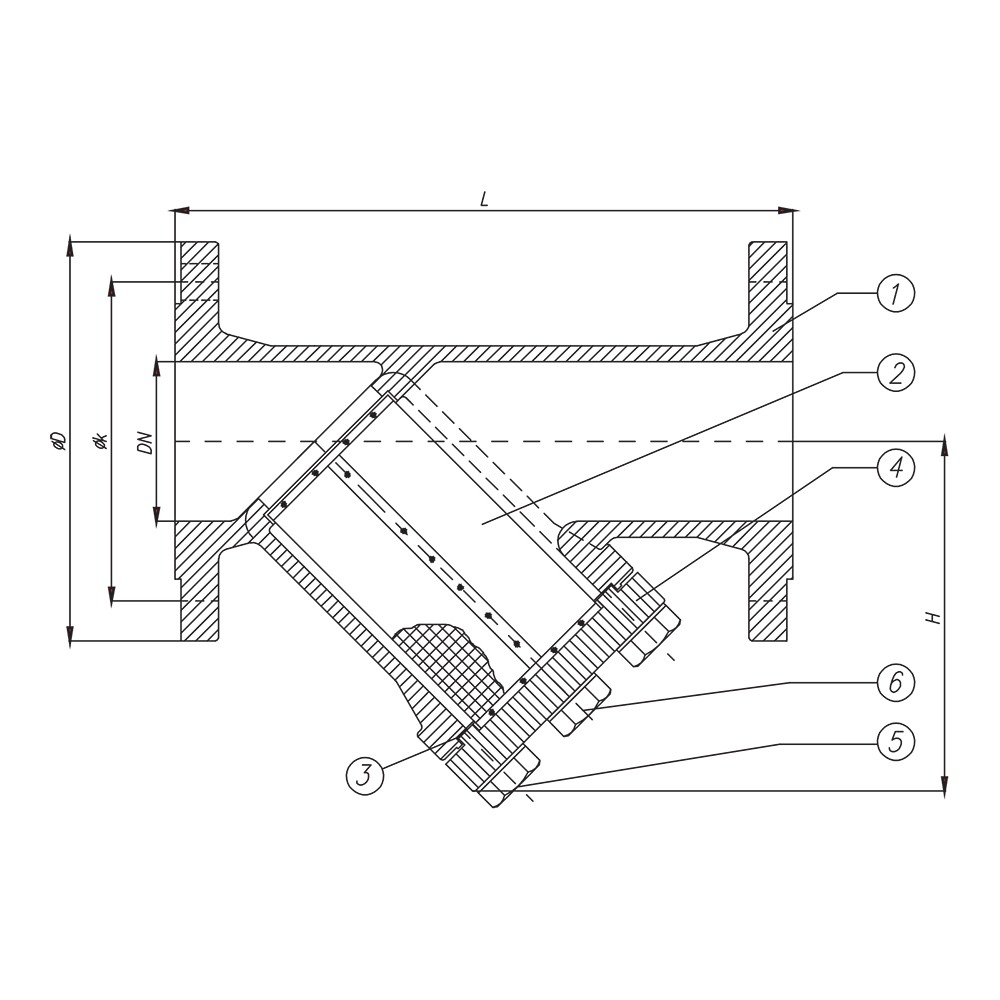

Technical drawings(1 page)

Description

Y-type strainer with flanged ends for pipeline filtration duties. Available in pressure ratings PN10 to PN40 and sizes DN15 to DN600. Body and bonnet constructed from cast iron or cast steel variants; filter element in stainless steel.

Selection notes

This strainer is a y type pattern, supplied for flanged installation.

Sizes run DN15 to DN600, in PN10, PN16, PN25, PN40.

The body is offered in GG 25, GGG-40, 50 and GS-C 25, so the grade can be matched to the service rather than the other way round.

It is catalogued for Industrial Process.

Built to TS 11494, EN 558 Serie 1, DIN 3202 F1, EN 12266 and DIN EN 1092-1-2 PN10.
