Self Closing Valve Straight & Angle Type Straight VAKD-16 / Angle VAKK-16
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN100
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Face to face
- DIN 3356/2-F1, DIN 3356/2-F32, DIN EN 558-1-1, DIN EN 558-1-8
- Flange & end dimension
- DIN EN 1092-1-2
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Packing
- Gasket
- Spring
- Gland
- Lever
- Stud Nut
- T Stud Nut
- Weight
Dimensions per size(9 sizes)
| Size | L (mm) | L1 (mm) | A (mm) | H1 (mm) | H2 (mm) | D (mm) | k (mm) | angle_kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 130 | 90 | 180 | 190 | 200 | 95 | 65 | 5 | 5.5 kg |
| DN20 | 150 | 95 | 180 | 190 | 200 | 105 | 75 | 6 | 6.5 kg |
| DN25 | 160 | 100 | 180 | 200 | 210 | 115 | 85 | 6.3 | 7 kg |
| DN32 | 180 | 105 | 180 | 210 | 225 | 140 | 100 | 8.5 | 9 kg |
| DN40 | 200 | 115 | 230 | 230 | 250 | 150 | 110 | 13 | 15 kg |
| DN50 | 230 | 125 | 230 | 240 | 260 | 165 | 125 | 14.5 | 16.5 kg |
| DN65 | 290 | 145 | 250 | 280 | 305 | 185 | 145 | 20 | 21 kg |
| DN80 | 310 | 155 | 300 | 300 | 330 | 200 | 160 | 24 | 27 kg |
| DN100 | 350 | 175 | 450 | 350 | 385 | 220 | 180 | 36 | 38 kg |

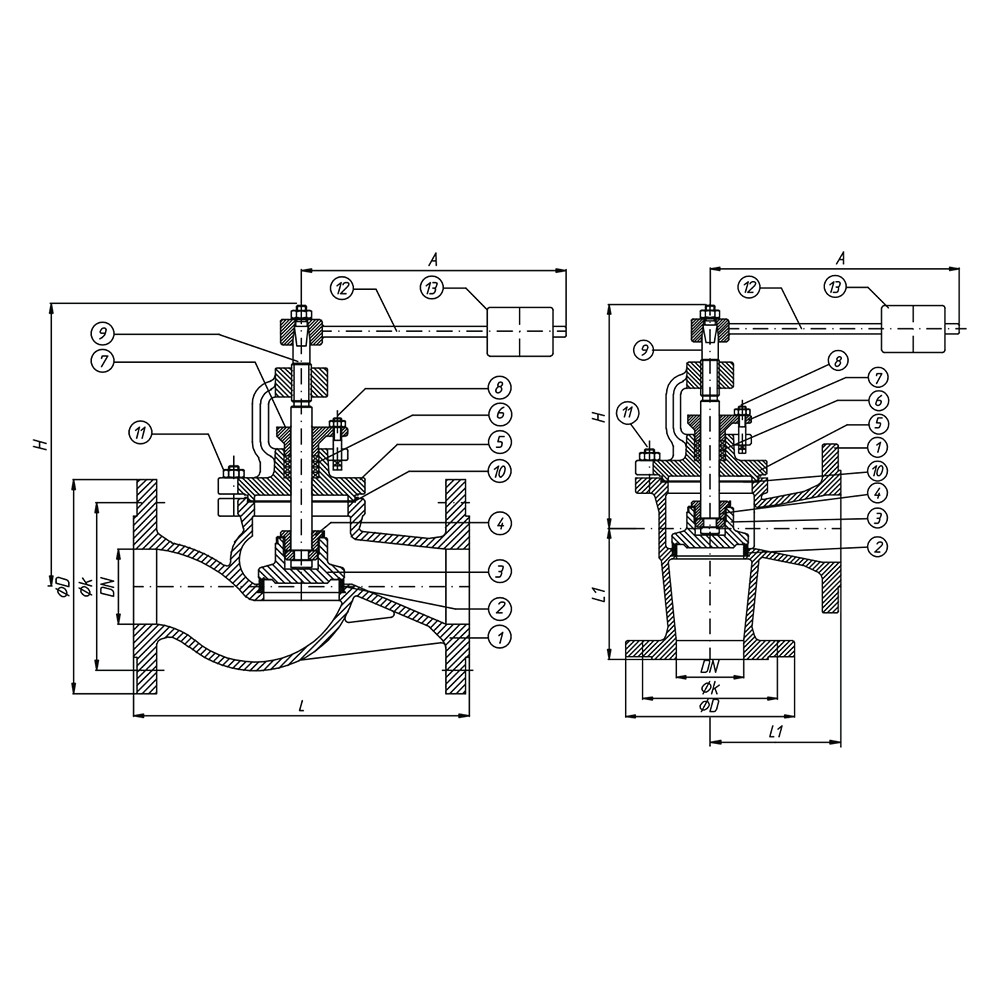

Technical drawings(1 page)
Actuation options
Description
Gravity/weight-operated self-closing valve available in straight (VAKD-16) and angle (VAKK-16) configurations. Rated to PN16 and covering DN15 to DN100. End connections conform to DIN EN 1092-1-2 with face-to-face dimensions per DIN 3356/2-F1 (straight) and DIN 3356/2-F32 (angle).
Selection notes
This self closing valve is a straight type, angle type and gravity/weight closing pattern, supplied for flanged installation.
Sizes run DN15 to DN100, in PN16.
The body is offered in GGG40, GGG40.3, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Seat and trim options are AISI 304, AISI 316, Bronze RG5 and Duplex. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Built to DIN 3356/2-F1, DIN 3356/2-F32, DIN EN 558-1-1, DIN EN 558-1-8 and DIN EN 1092-1-2.
