Bronze Pressure Reducing Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN100
- Pressure Class
- 20 bar
- End connection
- Threaded
- Operating temperature
- 0°C to 170°C
Standards
- Other standards
- BSPT
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Gasket
- O-Ring
- Spring
- Cap
- Connection Plug
- Core
- Diaphragm
- Mesh
- Stem Gasket
Dimensions per size(9 sizes)
| Size | L (mm) | A (mm) | H (mm) | H1 (mm) | L1 (mm) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 89 | 41.5 | 121 | 46 | — | — |
| DN20 | 92 | 43 | 121 | 46 | — | — |
| DN25 | 98 | 46 | 121 | 46 | — | — |
| DN32 | 126 | 55 | 192 | 62 | — | — |
| DN40 | 126 | 55.5 | 192 | 62 | — | — |
| DN50 | 168 | — | 272 | 85 | 72 | — |
| DN65 | 174 | — | 272 | 85 | 75.5 | — |
| DN80 | 225 | — | 385 | 113 | 98.5 | — |
| DN100 | 230 | — | 385 | 113 | 104.5 | — |

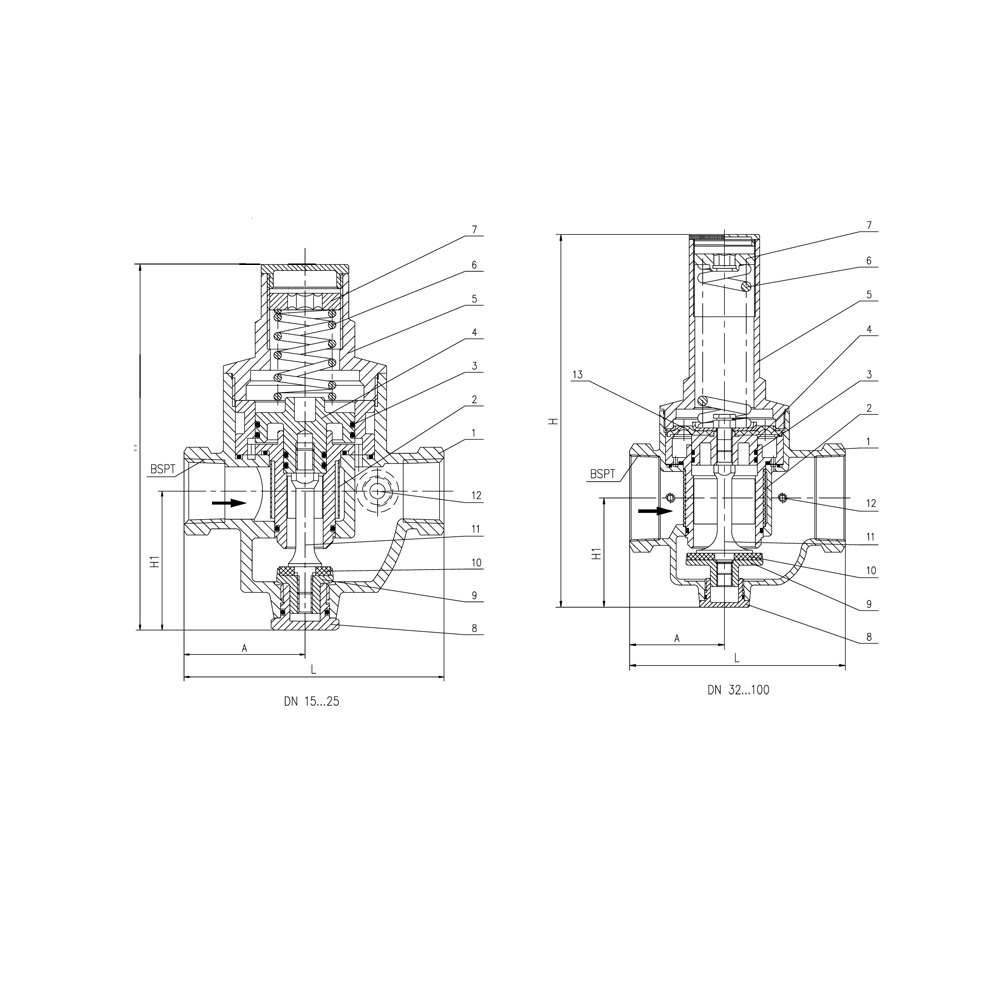

Technical drawings(1 page)
Operating media
Typical applications
- water
- gas
Features
- Diaphragm-type pressure reducing mechanism
- Adjustable outlet pressure
- Outlet pressure range DN15 - DN25: 1-4 bar
- Outlet pressure range DN32 - DN100: 1-5 bar
- Two construction variants: DN15-25 and DN32-100 with differing internal geometry
- Integral mesh strainer element
Description
A bronze pressure reducing valve available in sizes DN15 to DN100 with BSPT end connections. Rated to 20 bar inlet pressure with adjustable outlet pressure ranges depending on size. Suitable for water and gas applications up to 170°C.
Selection notes
This pressure reducing valve is a bronze and direct-acting pattern, supplied for threaded installation.
Sizes run DN15 to DN100, in 20 bar.
The body is Bronze Rg5.
Stated service media include water and gas.
It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.
Working temperature is 0°C to 170°C.
