API Forged Steel Globe Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 1/2" to NPS 2"
- Pressure Class
- Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500
- End connection
- Socket weld · Threaded
Standards
- Design & manufacture
- API 602
- Inspection & test
- API 598
- Flange & end dimension
- ASME B16.11, ASME B1.20.1, ASME B16.34
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Handwheel
- Gland Flange
- Stem Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| Class 150 | °C | bar |
| Class 900 | °C | bar |
| Class 1500 | °C | bar |
| Class 2500 | °C | bar |
Dimensions per size(18 sizes)
| Size | L (mm) | d (mm) | H (mm) | W (mm) | Weight |
|---|---|---|---|---|---|
| NPS 1/2" (DN15) Class 150-800 | 79 | 10 | 158 | 100 | 2 kg |
| NPS 3/4" (DN20) Class 150-800 | 92 | 13 | 158 | 100 | 2.2 kg |
| NPS 1" (DN25) Class 150-800 | 111 | 17.5 | 192 | 125 | 2.5 kg |
| NPS 1 1/4" (DN32) Class 150-800 | 120 | 23 | 227 | 160 | 5.5 kg |
| NPS 1 1/2" (DN40) Class 150-800 | 152 | 28.5 | 240 | 160 | 7 kg |
| NPS 2" (DN50) Class 150-800 | 172 | 35 | 279 | 180 | 11.5 kg |
| NPS 1/2" (DN15) Class 900-1500 | 92 | 10 | 187 | 125 | 3.5 kg |
| NPS 3/4" (DN20) Class 900-1500 | 111 | 13 | 187 | 125 | 4 kg |
| NPS 1" (DN25) Class 900-1500 | 120 | 17.5 | 227 | 160 | 6.3 kg |
| NPS 1 1/4" (DN32) Class 900-1500 | 152 | 23 | 242 | 160 | 8 kg |
| NPS 1 1/2" (DN40) Class 900-1500 | 172 | 28.5 | 278 | 180 | 12.5 kg |
| NPS 2" (DN50) Class 900-1500 | 220 | 35 | 325 | 200 | 19.5 kg |
| NPS 1/2" (DN15) Class 2500 | 150 | 11 | 293 | 160 | 10.8 kg |
| NPS 3/4" (DN20) Class 2500 | 150 | 11 | 293 | 160 | 12 kg |
| NPS 1" (DN25) Class 2500 | 170 | 14 | 344 | 200 | 13.5 kg |
| NPS 1 1/4" (DN32) Class 2500 | 200 | 16 | 383 | 250 | 18.5 kg |
| NPS 1 1/2" (DN40) Class 2500 | 200 | 25 | 383 | 250 | 22 kg |
| NPS 2" (DN50) Class 2500 | 250 | 28 | 442 | 300 | 37 kg |

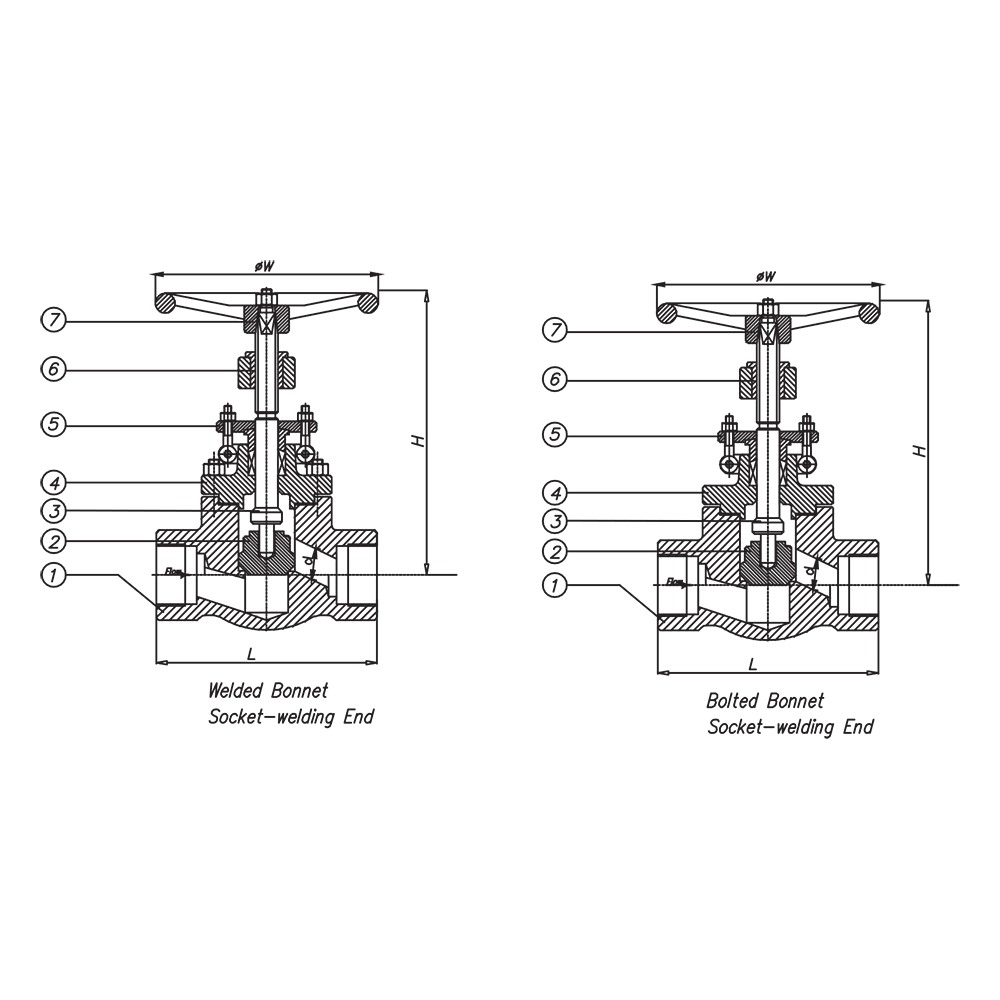

Technical drawings(1 page)
Actuation options
Approvals
Features
- Available in welded bonnet and bolted bonnet configurations
- Socket-welding and threaded end connection options
- Three material options: carbon steel (A105), F304 stainless steel, F316 stainless steel
Description
Forged steel globe valve designed and manufactured to API 602, available in Class 150 through Class 800 and Class 900 through Class 2500 pressure ratings. Offered in welded bonnet and bolted bonnet configurations with socket-welding or threaded end connections. Size range covers NPS 1/2" to NPS 2" (DN15 to DN50) across multiple pressure classes.
Selection notes
This globe valve is a forged steel and api forged pattern, supplied for socket weld and threaded installation.
Sizes run NPS 1/2" to NPS 2", in Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500.
The body is offered in ASTM A105, ASTM A182F304 and ASTM A182F316, so the grade can be matched to the service rather than the other way round.
It is catalogued for Oil & Gas.
Built to API 602, API 598, ASME B16.11, ASME B1.20.1 and ASME B16.34.
Available pressure classes
Pressure classes this product is rated to.
