1 / 2
Check Valve
Tilting Type Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100-DN1400
- Pressure Class
- PN10/PN40
- Standards
- EN 558 Serie 14, DIN 3202 F4, EN 558 Serie 13, BS 5155, EN 12266, API 598, EN 1092-2/B
- End connection
- EN 1092-2/B flange
- Face-to-face
- DIN3202/2-F4 / BS 5155
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- shaft
- bushing
- o ring
- bolt
- cover driven end
- key
- lever
- retaining ring
- screw
- sealing ring
- setscrew
- weight

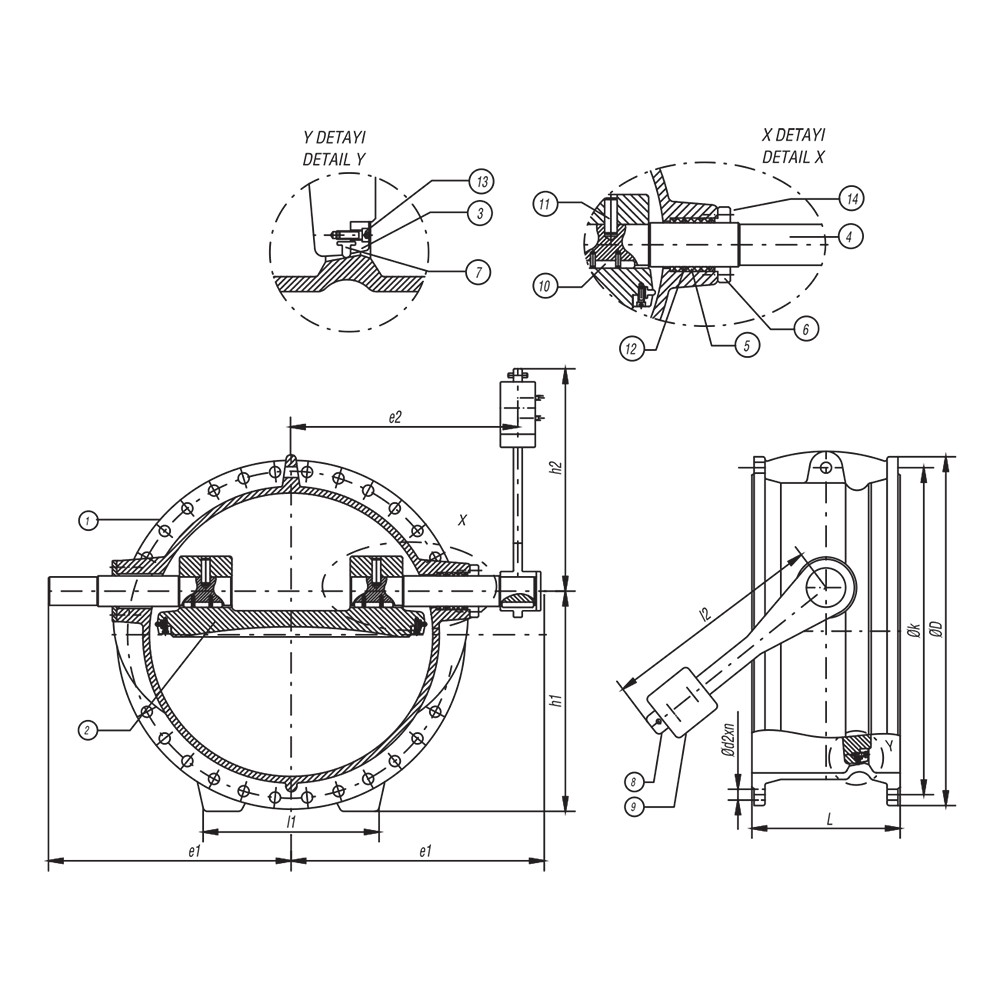

Dimensions per size(68 sizes)
| Size | D | k | bolts | L_DIN3202F4 | L_BS5155 | e1 | e2 | h1 | h2 | I1 | I2 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN100 (PN10) | 220 mm | 180 mm | Ø18x8 | 190 mm | 127 mm | 192 mm | 160 mm | 135 mm | 189 mm | 200 mm | 220 mm | — |
| DN100 (PN16) | 220 mm | 180 mm | Ø18x8 | 190 mm | 127 mm | 192 mm | 160 mm | 135 mm | 189 mm | 200 mm | 220 mm | — |
| DN100 (PN25) | 235 mm | 190 mm | Ø22x8 | 190 mm | 127 mm | 192 mm | 160 mm | 135 mm | 189 mm | 200 mm | 220 mm | — |
| DN100 (PN40) | 235 mm | 190 mm | Ø22x8 | 190 mm | 127 mm | 192 mm | 160 mm | 135 mm | 189 mm | 200 mm | 220 mm | — |
| DN125 (PN10) | 250 mm | 210 mm | Ø22x8 | 200 mm | 140 mm | 215 mm | 183 mm | 156 mm | 189 mm | 200 mm | 250 mm | — |
| DN125 (PN16) | 250 mm | 210 mm | Ø22x8 | 200 mm | 140 mm | 215 mm | 183 mm | 156 mm | 189 mm | 200 mm | 250 mm | — |
| DN125 (PN25) | 270 mm | 220 mm | Ø26x8 | 200 mm | 140 mm | 215 mm | 183 mm | 156 mm | 189 mm | 200 mm | 250 mm | — |
| DN125 (PN40) | 270 mm | 220 mm | Ø26x8 | 200 mm | 140 mm | 215 mm | 183 mm | 156 mm | 189 mm | 200 mm | 250 mm | — |
| DN150 (PN10) | 285 mm | 240 mm | Ø22x8 | 210 mm | 152 mm | 238 mm | 206 mm | 180 mm | 189 mm | 200 mm | 285 mm | — |
| DN150 (PN16) | 285 mm | 240 mm | Ø22x8 | 210 mm | 152 mm | 238 mm | 206 mm | 180 mm | 189 mm | 200 mm | 285 mm | — |
| DN150 (PN25) | 300 mm | 250 mm | Ø26x8 | 210 mm | 152 mm | 238 mm | 206 mm | 180 mm | 189 mm | 200 mm | 285 mm | — |
| DN150 (PN40) | 300 mm | 250 mm | Ø26x8 | 210 mm | 152 mm | 238 mm | 206 mm | 180 mm | 189 mm | 200 mm | 285 mm | — |
| DN200 (PN10) | 340 mm | 295 mm | Ø22x12 | 230 mm | 165 mm | 263 mm | 231 mm | 220 mm | 189 mm | 300 mm | 340 mm | — |
| DN200 (PN16) | 340 mm | 295 mm | Ø26x12 | 230 mm | 165 mm | 263 mm | 231 mm | 220 mm | 189 mm | 300 mm | 340 mm | — |
| DN200 (PN25) | 360 mm | 310 mm | Ø30x16 | 230 mm | 165 mm | 263 mm | 231 mm | 220 mm | 189 mm | 300 mm | 340 mm | — |
| DN200 (PN40) | 375 mm | 320 mm | Ø33x12 | 230 mm | 165 mm | 263 mm | 231 mm | 220 mm | 189 mm | 300 mm | 340 mm | — |
| DN250 (PN10) | 395 mm | 350 mm | Ø22x12 | 250 mm | 178 mm | 313 mm | 276 mm | 265 mm | 280 mm | 300 mm | 260 mm | — |
| DN250 (PN16) | 395 mm | 355 mm | Ø26x12 | 250 mm | 178 mm | 313 mm | 276 mm | 265 mm | 280 mm | 300 mm | 260 mm | — |
| DN250 (PN25) | 425 mm | 370 mm | Ø30x12 | 250 mm | 178 mm | 313 mm | 276 mm | 265 mm | 280 mm | 300 mm | 260 mm | — |
| DN250 (PN40) | 450 mm | 385 mm | Ø33x12 | 250 mm | 178 mm | 313 mm | 276 mm | 265 mm | 280 mm | 300 mm | 260 mm | — |
| DN300 (PN10) | 445 mm | 400 mm | Ø22x12 | 270 mm | 190 mm | 326 mm | 289 mm | 305 mm | 280 mm | 400 mm | 335 mm | — |
| DN300 (PN16) | 445 mm | 410 mm | Ø26x16 | 270 mm | 190 mm | 326 mm | 289 mm | 305 mm | 280 mm | 400 mm | 335 mm | — |
| DN300 (PN25) | 485 mm | 430 mm | Ø33x16 | 270 mm | 190 mm | 326 mm | 289 mm | 305 mm | 280 mm | 400 mm | 335 mm | — |
| DN300 (PN40) | 515 mm | 450 mm | Ø33x16 | 270 mm | 190 mm | 326 mm | 289 mm | 305 mm | 280 mm | 400 mm | 335 mm | — |
| DN350 (PN10) | 505 mm | 460 mm | Ø22x16 | 290 mm | 216 mm | 388 mm | 346 mm | 357 mm | 372 mm | 400 mm | 345 mm | — |
| DN350 (PN16) | 505 mm | 470 mm | Ø26x16 | 290 mm | 216 mm | 388 mm | 346 mm | 357 mm | 372 mm | 400 mm | 345 mm | — |
| DN350 (PN25) | 555 mm | 490 mm | Ø36x16 | 290 mm | 216 mm | 388 mm | 346 mm | 357 mm | 372 mm | 400 mm | 345 mm | — |
| DN350 (PN40) | 580 mm | 490 mm | Ø36x16 | 290 mm | 216 mm | 388 mm | 346 mm | 357 mm | 372 mm | 400 mm | 345 mm | — |
| DN400 (PN10) | 565 mm | 515 mm | Ø26x16 | 310 mm | 222 mm | 418 mm | 376 mm | 395 mm | — | — | 375 mm | — |
| DN400 (PN16) | 565 mm | 525 mm | Ø30x16 | 310 mm | 222 mm | 418 mm | 376 mm | 395 mm | — | — | 375 mm | — |
| DN400 (PN25) | 615 mm | 550 mm | Ø36x16 | 310 mm | 222 mm | 418 mm | 376 mm | 395 mm | — | — | 375 mm | — |
| DN400 (PN40) | 660 mm | 610 mm | Ø36x16 | 310 mm | 222 mm | 418 mm | 376 mm | 395 mm | — | — | 375 mm | — |
| DN450 (PN10) | 615 mm | 565 mm | Ø26x20 | 330 mm | 229 mm | 470 mm | 420 mm | 440 mm | 405 mm | 450 mm | 450 mm | — |
| DN450 (PN16) | 615 mm | 585 mm | Ø30x20 | 330 mm | 229 mm | 470 mm | 420 mm | 440 mm | 405 mm | 450 mm | 450 mm | — |
| DN450 (PN25) | 670 mm | 600 mm | Ø36x20 | 330 mm | 229 mm | 470 mm | 420 mm | 440 mm | 405 mm | 450 mm | 450 mm | — |
| DN450 (PN40) | 685 mm | 610 mm | Ø36x20 | 330 mm | 229 mm | 470 mm | 420 mm | 440 mm | 405 mm | 450 mm | 450 mm | — |
| DN500 (PN10) | 670 mm | 620 mm | Ø26x20 | 350 mm | 267 mm | 495 mm | 453 mm | 490 mm | 460 mm | 500 mm | 470 mm | — |
| DN500 (PN16) | 670 mm | 620 mm | Ø33x20 | 350 mm | 267 mm | 495 mm | 453 mm | 490 mm | 460 mm | 500 mm | 470 mm | — |
| DN500 (PN25) | 730 mm | 660 mm | Ø36x20 | 350 mm | 267 mm | 495 mm | 453 mm | 490 mm | 460 mm | 500 mm | 470 mm | — |
| DN500 (PN40) | 755 mm | 670 mm | Ø36x20 | 350 mm | 267 mm | 495 mm | 453 mm | 490 mm | 460 mm | 500 mm | 470 mm | — |
| DN600 (PN10) | 780 mm | 725 mm | Ø30x20 | 390 mm | 292 mm | 592 mm | 540 mm | 580 mm | 555 mm | 600 mm | 545 mm | — |
| DN600 (PN16) | 780 mm | 725 mm | Ø36x20 | 390 mm | 292 mm | 592 mm | 540 mm | 580 mm | 555 mm | 600 mm | 545 mm | — |
| DN600 (PN25) | 845 mm | 770 mm | Ø39x20 | 390 mm | 292 mm | 592 mm | 540 mm | 580 mm | 555 mm | 600 mm | 545 mm | — |
| DN600 (PN40) | 890 mm | 795 mm | Ø42x20 | 390 mm | 292 mm | 592 mm | 540 mm | 580 mm | 555 mm | 600 mm | 545 mm | — |
| DN700 (PN10) | 895 mm | 840 mm | Ø30x24 | 430 mm | 318 mm | 688 mm | 623 mm | 635 mm | 642 mm | 700 mm | 590 mm | — |
| DN700 (PN16) | 910 mm | 840 mm | Ø36x24 | 430 mm | 318 mm | 688 mm | 623 mm | 635 mm | 642 mm | 700 mm | 590 mm | — |
| DN700 (PN25) | 960 mm | 875 mm | Ø42x24 | 430 mm | 318 mm | 688 mm | 623 mm | 635 mm | 642 mm | 700 mm | 590 mm | — |
| DN700 (PN40) | 995 mm | 875 mm | Ø48x24 | 430 mm | 318 mm | 688 mm | 623 mm | 635 mm | 642 mm | 700 mm | 590 mm | — |
| DN800 (PN10) | 1015 mm | 950 mm | Ø33x24 | 470 mm | — | 715 mm | 656 mm | 713 mm | 735 mm | 800 mm | 660 mm | — |
| DN800 (PN16) | 1025 mm | 950 mm | Ø39x24 | 470 mm | — | 715 mm | 656 mm | 713 mm | 735 mm | 800 mm | 660 mm | — |
| DN800 (PN25) | 1085 mm | 990 mm | Ø48x24 | 470 mm | — | 715 mm | 656 mm | 713 mm | 735 mm | 800 mm | 660 mm | — |
| DN800 (PN40) | 1140 mm | 1030 mm | Ø56x24 | 470 mm | — | 715 mm | 656 mm | 713 mm | 735 mm | 800 mm | 660 mm | — |
| DN900 (PN10) | 1115 mm | 1050 mm | Ø33x28 | 510 mm | — | 825 mm | 740 mm | 795 mm | 830 mm | 900 mm | 720 mm | — |
| DN900 (PN16) | 1125 mm | 1050 mm | Ø39x28 | 510 mm | — | 825 mm | 740 mm | 795 mm | 830 mm | 900 mm | 720 mm | — |
| DN900 (PN25) | 1185 mm | 1090 mm | Ø48x28 | 510 mm | — | 825 mm | 740 mm | 795 mm | 830 mm | 900 mm | 720 mm | — |
| DN900 (PN40) | 1250 mm | 1140 mm | Ø56x28 | 510 mm | — | 825 mm | 740 mm | 795 mm | 830 mm | 900 mm | 720 mm | — |
| DN1000 (PN10) | 1230 mm | 1160 mm | Ø33x28 | 550 mm | — | 832 mm | 764 mm | 890 mm | 920 mm | 1000 mm | 770 mm | — |
| DN1000 (PN16) | 1255 mm | 1170 mm | Ø42x28 | 550 mm | — | 832 mm | 764 mm | 890 mm | 920 mm | 1000 mm | 770 mm | — |
| DN1000 (PN25) | 1320 mm | 1210 mm | Ø56x28 | 550 mm | — | 832 mm | 764 mm | 890 mm | 920 mm | 1000 mm | 770 mm | — |
| DN1000 (PN40) | 1360 mm | 1250 mm | Ø62x28 | 550 mm | — | 832 mm | 764 mm | 890 mm | 920 mm | 1000 mm | 770 mm | — |
| DN1200 (PN10) | 1455 mm | 1380 mm | Ø41x32 | 630 mm | — | 1000 mm | 900 mm | 1042 mm | 1087 mm | 1200 mm | 965 mm | — |
| DN1200 (PN16) | 1485 mm | 1390 mm | Ø50x32 | 630 mm | — | 1000 mm | 900 mm | 1042 mm | 1087 mm | 1200 mm | 965 mm | — |
| DN1200 (PN25) | 1530 mm | 1420 mm | Ø62x32 | 630 mm | — | 1000 mm | 900 mm | 1042 mm | 1087 mm | 1200 mm | 965 mm | — |
| DN1200 (PN40) | 1575 mm | 1460 mm | Ø62x32 | 630 mm | — | 1000 mm | 900 mm | 1042 mm | 1087 mm | 1200 mm | 965 mm | — |
| DN1400 (PN10) | 1675 mm | 1590 mm | Ø44x36 | 710 mm | — | 1246 mm | 1100 mm | 1200 mm | 1280 mm | 1400 mm | 965 mm | — |
| DN1400 (PN16) | 1685 mm | 1590 mm | Ø50x36 | 710 mm | — | 1246 mm | 1100 mm | 1200 mm | 1280 mm | 1400 mm | 965 mm | — |
| DN1400 (PN25) | 1755 mm | 1640 mm | Ø62x36 | 710 mm | — | 1246 mm | 1100 mm | 1200 mm | 1280 mm | 1400 mm | 965 mm | — |
| DN1400 (PN40) | 1795 mm | 1680 mm | Ø62x38 | 710 mm | — | 1246 mm | 1100 mm | 1200 mm | 1280 mm | 1400 mm | 965 mm | — |
Description
A tilting disc check valve designed for flanged pipeline installations in sizes DN100 to DN1400. Rated for pressure classes PN10, PN16, PN25 and PN40, with an operating temperature range of -10°C to +120°C. The valve body and disc are constructed from ductile iron or stainless steel, with EPDM sealing.
Available pressure classes
Pressure classes this product is rated to.
