Check Valve

Ball Check Valve (Marine)

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN300
Pressure Class
PN10, PN16
End connection
Flanged
Operating temperature
-10°C to 120°C

Standards

Face to face
DIN 3202-F6
Flange & end dimension
DIN 2401-2, DIN 2501, TS 810

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Ball
Gasket
Bolt
Dimensions per size(10 sizes)
SizeL (mm)H (mm)D (mm)k (mm)Weight
DN40180100150110
8 kg
DN50200110165125
9 kg
DN65240130185145
12 kg
DN80260145200160
14 kg
DN100300170220180
22 kg
DN125350195250210
30 kg
DN150400205285240
49 kg
DN200500260340295
98 kg
DN250600390395350
125 kg
DN300700500445400
240 kg

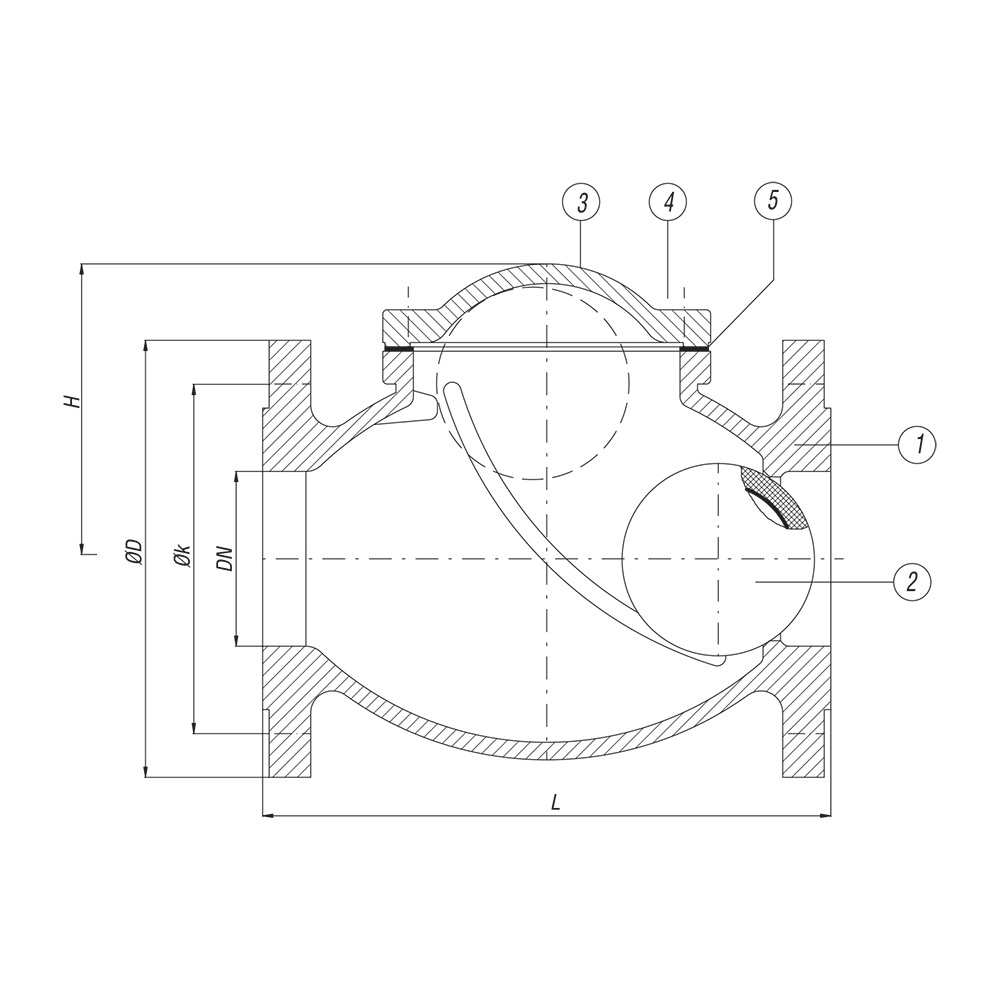

Technical drawings(1 page)

Description

A flanged ball check valve available in DN40 to DN300, rated PN10-16. The body and bonnet are manufactured from grey or ductile cast iron, with an NBR-coated cast iron or steel ball. Dimensions conform to DIN 3202-F6 and flanges to DIN 2501/TS 810.

Selection notes

This check valve is a ball pattern, supplied for flanged installation.

Sizes run DN40 to DN300, in PN10, PN16.

The body is offered in GG 25, GGG 40 and GGG 50, so the grade can be matched to the service rather than the other way round.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 120°C.

Built to DIN 3202-F6, DIN 2401-2, DIN 2501 and TS 810.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16

Used in

Water & Wastewater
