JIS Double Flanged Butterfly Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100 to DN600
- Pressure Class
- 5K, 10K
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Flange & end dimension
- JIS B2210
- Other standards
- JIS F7480 Series 122, JIS F7400
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Stem
- Bushing
- O-Ring
- Gearbox
- Pin
Dimensions per size(11 sizes)
| Size | L (mm) | A (mm) | B (mm) | F (mm) | 5K D (mm) | 5K K (mm) | 5K Øxn | 10K D (mm) | 10K K (mm) | 10K Øxn | Top flange | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN100 | 60 | 124 | 150 | 11 | 200 | 165 | Ø19x8 | 210 | 175 | Ø19x8 | F07 | — |
| DN125 | 100 | 144 | 171 | 14 | 235 | 200 | Ø19x8 | 250 | 210 | Ø23x8 | F07 | — |
| DN150 | 100 | 154 | 184 | 14 | 265 | 230 | Ø19x8 | 280 | 240 | Ø23x8 | F07 | — |
| DN200 | 100 | 187 | 214 | 17 | 320 | 280 | Ø23x8 | 330 | 290 | Ø23x12 | F10 | — |
| DN250 | 110 | 217 | 265 | 22 | 385 | 345 | Ø23x12 | 400 | 355 | Ø25x12 | F10 | — |
| DN300 | 110 | 243 | 288 | 22 | 430 | 390 | Ø23x12 | 445 | 400 | Ø25x16 | F10 | — |
| DN350 | 120 | 268 | 322 | 22 | 480 | 435 | Ø25x12 | 490 | 445 | Ø25x16 | F10 | — |
| DN400 | 130 | 301 | 370 | 27 | 540 | 495 | Ø25x16 | 560 | 510 | Ø27x16 | F14 | — |
| DN450 | 150 | 330 | 393 | 36 | 605 | 555 | Ø25x16 | 620 | 565 | Ø27x20 | F14 | — |
| DN500 | 160 | 358 | 432 | 36 | 655 | 605 | Ø25x20 | 675 | 620 | Ø27x20 | F14 | — |
| DN600 | 170 | 419 | 501 | 46 | 770 | 715 | Ø27x20 | 795 | 730 | Ø33x24 | F16 | — |

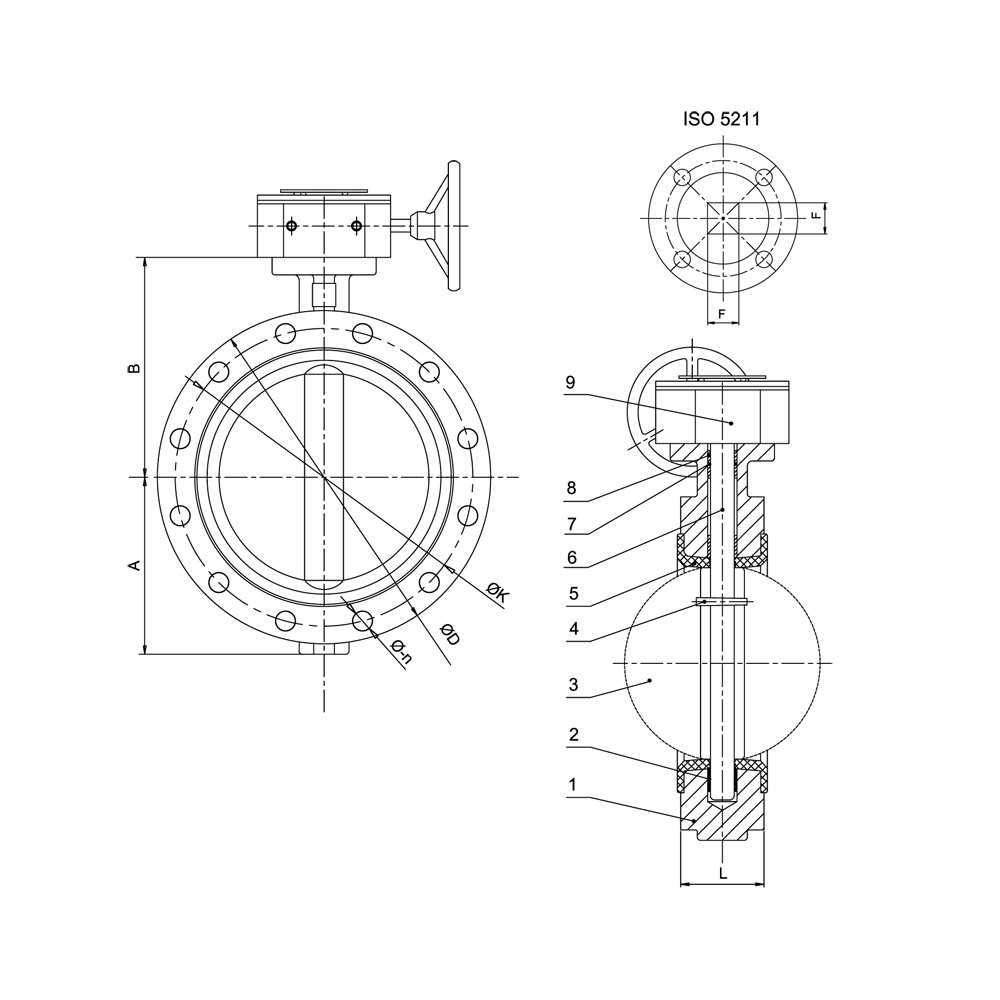

Technical drawings(1 page)
Operating media
Typical applications
- sea water
- cold water
- warm water
Actuation options
Features
- Double flanged body with JIS B2210 flange ends
- ISO 5211 actuator mounting pad
- Aluminium bronze disc for corrosion resistance in marine service
- Super duplex (2507) pin material
- NBR seat and O-ring
Description
A double-flanged butterfly valve designed to JIS F7480 Series 122 for marine and water service applications. Available in DN100 to DN600 with JIS 5K and 10K pressure ratings. Suitable for sea water, cold water, and warm water service in the temperature range of -10 to 80°C.
Selection notes
This butterfly valve is a double flanged and jis marine pattern, supplied for flanged installation.
Sizes run DN100 to DN600, in 5K, 10K.
The body is GGG 40.
Seat and trim options are NBR. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include sea water, cold water and warm water.
It is catalogued for Water & Wastewater and Marine & Offshore.
Working temperature is -10°C to 80°C.
Built to JIS F7480 Series 122, JIS F7400 and JIS B2210.
