Concentric Butterfly Valve
Specifications
Confirmed at quote- Size Range
- DN50 to DN4000
- Pressure Class
- PN10, PN16
- End connection
- Wafer · Lug · Flanged
- Operating temperature
- 0°C to 200°C
Standards
- Design & manufacture
- EN 593, API 609 Category A, API 609
- Inspection & test
- EN 12266-1, API 598
- Face to face
- EN 558-1 Series 20
- Flange & end dimension
- EN 1092, ASME B16.1, ASME B16.5, AWWA C207
- Mounting
- ISO 5211
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

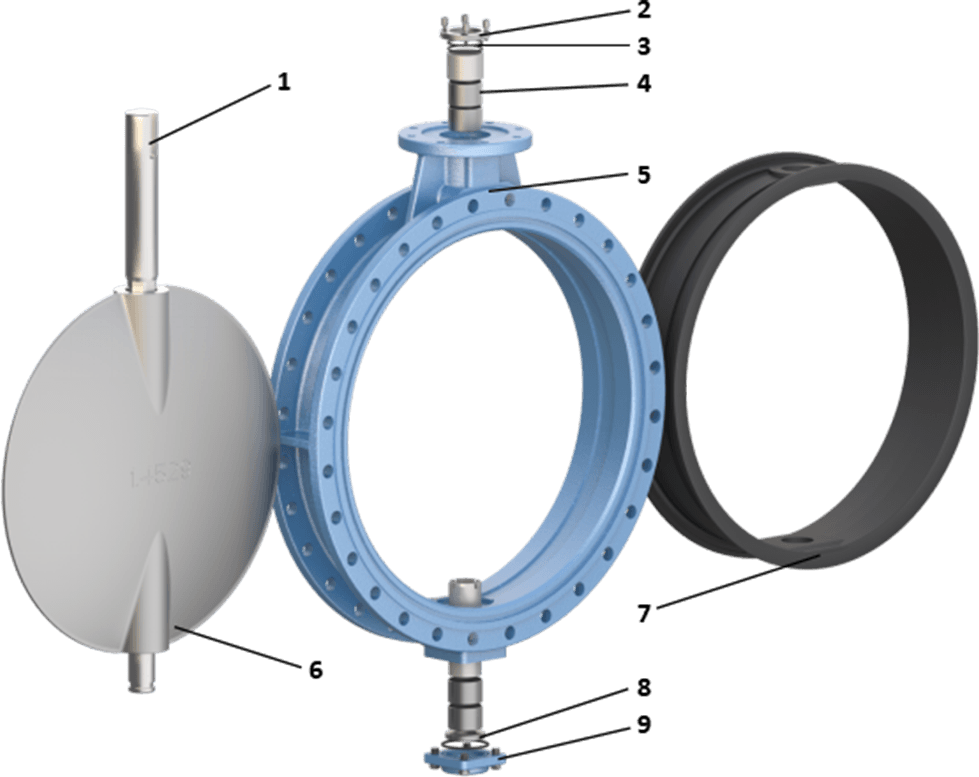

Materials
All available material options per part. Click a pill to set it in the configurator.
- O-Ring
- Circlip
- End Cover
- Packing Cap
- Shaft Bush
- Valve Body
- Valve Disc
- Valve Seat
- Valve Shaft

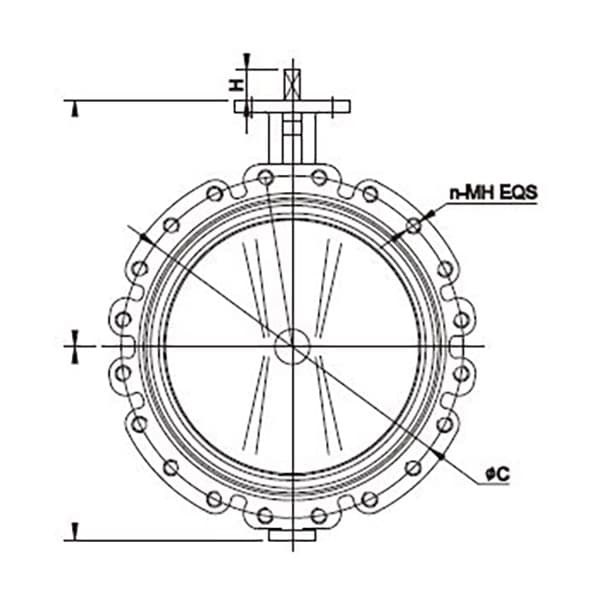

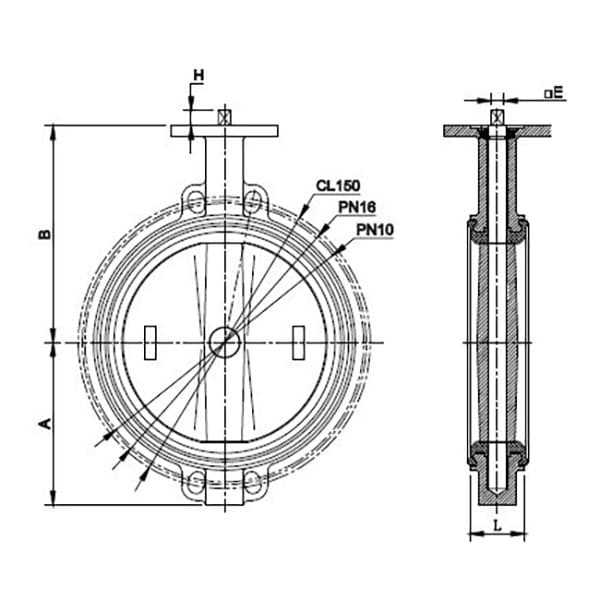

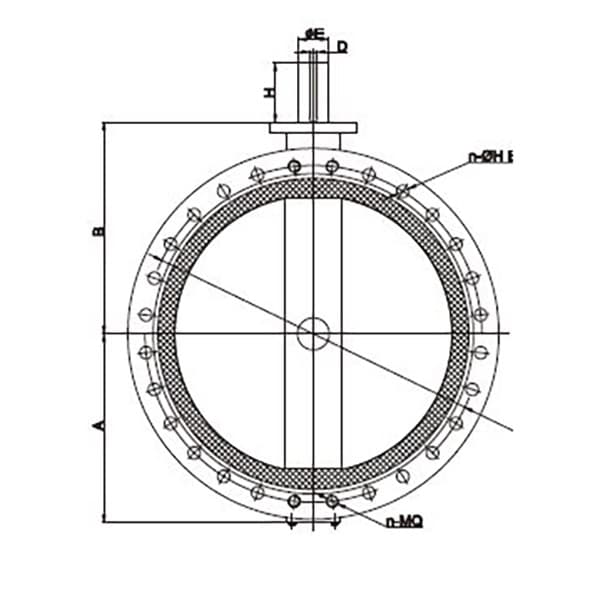

Dimensions per size(26 sizes)
| Size | A (mm) | B (mm) | L (mm) | H (mm) | E (mm) | ISO 5211 top flange | ΦE (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN50 | 61 | 141 | 43 | 13 | 11 | F07 | - | — |
| DN65 | 72 | 153 | 46 | 23 | 11 | F07 | - | — |
| DN80 | 87 | 161 | 46 | 17 | 14 | F07 | - | — |
| DN100 | 106 | 179 | 52 | 17 | 14 | F07 | - | — |
| DN125 | 123 | 193 | 56 | 17 | 14 | F07 | - | — |
| DN150 | 137 | 204 | 56 | 20 | 17 | F07 | - | — |
| DN200 | 174 | 247 | 60 | 20 | 17 | F10 | - | — |
| DN250 | 209 | 280 | 68 | 26 | 22 | F10 | - | — |
| DN300 | 253 | 324 | 78 | 26 | 22 | F10 | - | — |
| DN350 | 267 | 338 | 78 | 32 | 22 | F12 | - | — |
| DN400 | 315 | 400 | 102 | 32 | 27 | F14 | - | — |
| DN450 (Wafer/Lug) | 315 | 425 | 114 | 32 | 27 | F14 | - | — |
| DN500 (Wafer/Lug) | 363 | 485 | 127 | 43 | 36 | F14 | - | — |
| DN600 (Wafer/Lug) | 459 | 565 | 154 | 43 | 36 | F16 | - | — |
| DN450 (Flanged) | 359 | 400 | 114 | 70 | - | F14/F16 | 38 | — |
| DN500 (Flanged) | 397 | 440 | 127 | 70 | - | F14/F16 | 44 | — |
| DN600 (Flanged) | 467 | 525 | 154 | 70 | - | F16 | 45 | — |
| DN700 | 507 | 629 | 165 | 90 | - | F25 | 65 | — |
| DN800 | 556 | 666 | 190 | 90 | - | F25 | 65 | — |
| DN900 | 612 | 720 | 203 | 100 | - | F25 | 75 | — |
| DN1000 | 670 | 750 | 216 | 120 | - | F30 | 85 | — |
| DN1100 | 778 | 865 | 254 | 120 | - | F30 | 85 | — |
| DN1200 | 805 | 876 | 254 | 130 | - | F30 | 105 | — |
| DN1300 | 940 | 930 | 279 | 150 | - | F35 | 120 | — |
| DN1400 | 965 | 1000 | 279 | 150 | - | F35 | 120 | — |
| DN1500 | 1000 | 1050 | 300 | 200 | - | F40 | 140 | — |
Operating media
Typical applications
- Line isolation (shut-off)
- Throttling
- Water service
- TSE / treated waste water service
- Sea water service
Actuation options
Coatings
Features
- 90° quarter-turn operation to open/close
- Replaceable valve seat with bidirectional sealing performance
- Flow characteristics tend to be linear, providing good adjustment (throttling) performance
- Self-lubricating bearings in PTFE, aluminium-bronze, or stainless steel lined PTFE
- ISO 5211 top flange compatible with manual, electric, and pneumatic actuators

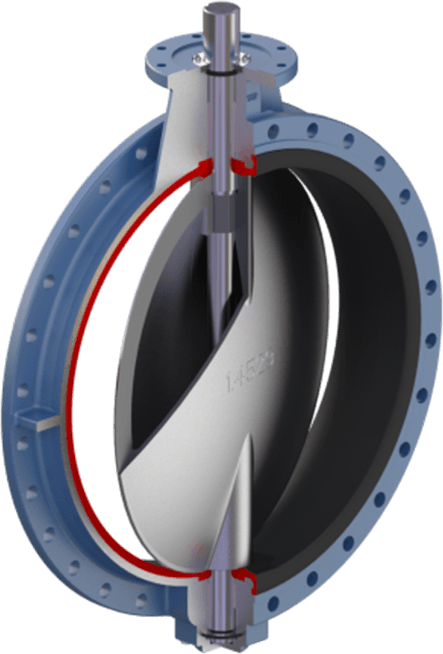

- Multiple shaft-seal design ensures shaft has no contact with service medium (dry shaft)
- Stepped shaft retained by circlip for blow-out proof design
- Pinless two-piece shaft design (one-piece available on request) isolates shaft from medium
- Disc edge machined with spherical surface and polished to reduce operating torque
- Streamlined disc profile minimises pressure drop
- Valve seat and body positioned with single or double grooves to prevent displacement during operation
- Valve seat outer surface has circular arc profile for accurate positioning and easy replacement
- No flange gasket required during valve installation
- Leakage rate Class A (zero leakage) in both directions per EN 12266-1 / API 598
- 100% pressure testing before delivery
Description
Concentric rubber-seated butterfly valve designed for throttling and isolation of service fluids including water, TSE/treated waste water, and sea water. Available in wafer, lug, and flanged end connections across a wide size range from DN50 to DN4000 (up to DN1500 tabulated). Conforms to EN 593 and API 609 Category A design standards with bidirectional zero-leakage sealing.
Selection notes
This butterfly valve is a concentric and rubber-seated pattern, supplied for wafer, lug and flanged installation.
Sizes run DN50 to DN4000, in PN10, PN16.
Stated service media include water, tse water / treated waste water and sea water.
Working temperature is 0°C to 200°C.
Built to EN 593, API 609 Category A, API 609, EN 558-1 Series 20 and EN 12266-1.
Supplier remarks
- One-piece shaft available on request
- Material will be designed and selected according to actual working conditions or client's special requirements
Available pressure classes
Pressure classes this product is rated to.
