Sounding Cock
Sounding Cocks PN 4 360° Turning Lever
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN32 to DN65
- Pressure Class
- PN25
- End connection
- Threaded
Standards
- Design & manufacture
- DIN 86 120
- Flange & end dimension
- DIN 259, ISO R 228
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Gasket
- O-Ring
- Cock
- Dust And Cap
- Handlever
- Nut
- Test Valve
Dimensions per size(4 sizes)
| Size | L1 (mm) | L2 (mm) | H (mm) | AA (mm) | L (mm) | N (mm) | Od (inch) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN32 | 120 | 135 | 85 | 55 | 180 | 95 | — | 3.5 kg |
| DN40 | 125 | 140 | 85 | 55 | 180 | 95 | — | 4 kg |
| DN50 | 125 | 140 | 85 | 70 | 180 | 95 | — | 4.5 kg |
| DN65 | 130 | 145 | 85 | 85 | 180 | 95 | — | 5 kg |

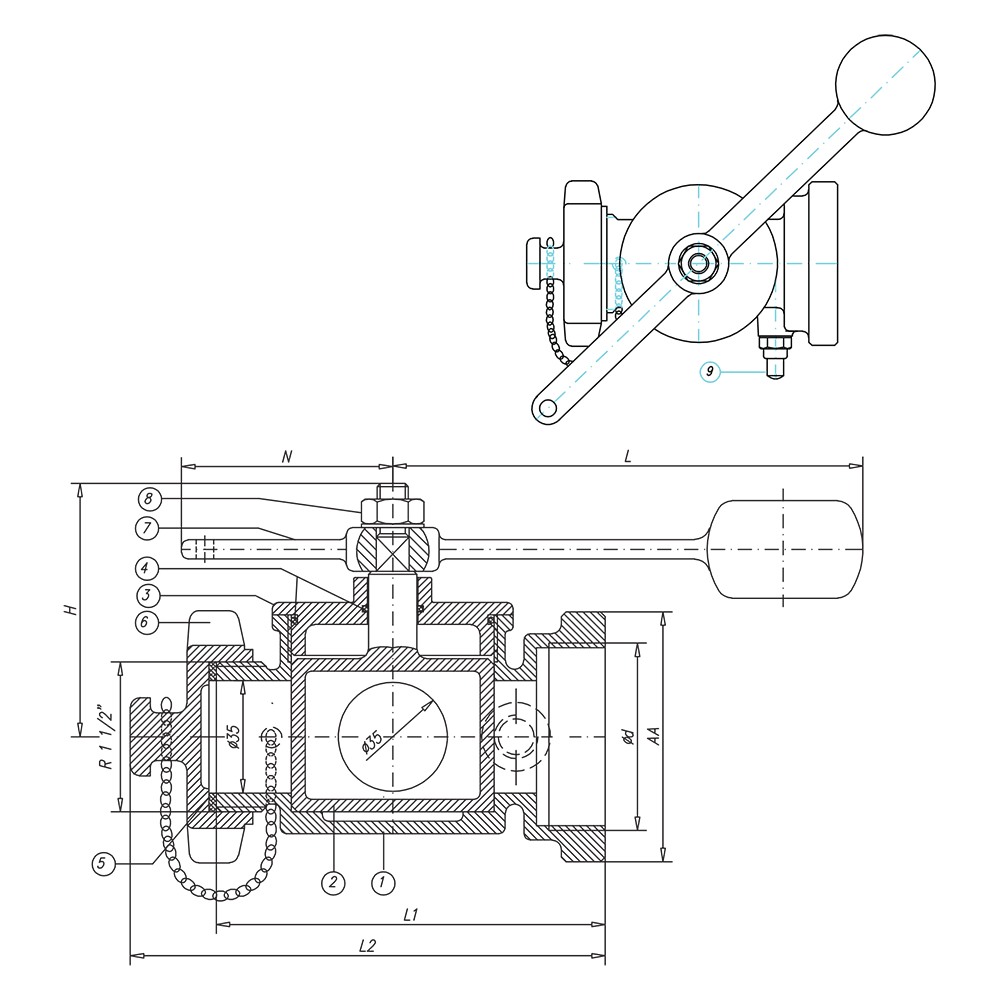

Technical drawings(1 page)
Actuation options
Manual lever
Features
- Full bore design
- Threaded connection
- 360-degree turning lever
Description
Full bore threaded sounding cock with 360° rotating lever, rated to PN 2.5 and conforming to DIN 86 120. Available in DN32 to DN65 (1¼" to 2½") with threaded end connections per DIN 259 / ISO / R 228. Body, cock, bonnet and dust cap are constructed from Rg-5 bronze.
Selection notes
This sounding cock is a full bore and 360° turning lever pattern, supplied for threaded installation.
Sizes run DN32 to DN65, in PN25.
The body is CC491K(Rg-5 Bronze).
It is catalogued for Marine & Offshore and HVAC.
Built to DIN 86 120, DIN 259 and ISO R 228.
