Quick Closing Valve Straight Form
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN200
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Face to face
- DIN 3202/2-F1
- Other standards
- DN 2533
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Gasket
- O-Ring
- Spring
- Handwheel
- Nut
- Nut 16
- Piston
- Segment
- Spindle
- Stem Nut
- Stud
- Stud Nut
Dimensions per size(12 sizes)
| Size | L (mm) | B (mm) | OC (mm) | H_open (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 130 | 145 | 120 | 185 | 95 | 65 | 4.4 kg |
| DN20 | 150 | 145 | 120 | 185 | 105 | 75 | 5.5 kg |
| DN25 | 160 | 145 | 140 | 195 | 115 | 85 | 6.5 kg |
| DN32 | 180 | 145 | 140 | 205 | 140 | 100 | 7.5 kg |
| DN40 | 200 | 145 | 160 | 230 | 150 | 110 | 10.5 kg |
| DN50 | 230 | 145 | 160 | 240 | 165 | 125 | 13.5 kg |
| DN65 | 290 | 145 | 180 | 275 | 185 | 145 | 17.5 kg |
| DN80 | 310 | 145 | 200 | 290 | 200 | 160 | 24 kg |
| DN100 | 350 | 145 | 225 | 350 | 220 | 180 | 33 kg |
| DN125 | 400 | 150 | 250 | 410 | 250 | 210 | 55 kg |
| DN150 | 480 | 150 | 300 | 430 | 285 | 240 | 95 kg |
| DN200 | 600 | 155 | 400 | 580 | 340 | 295 | 130 kg |

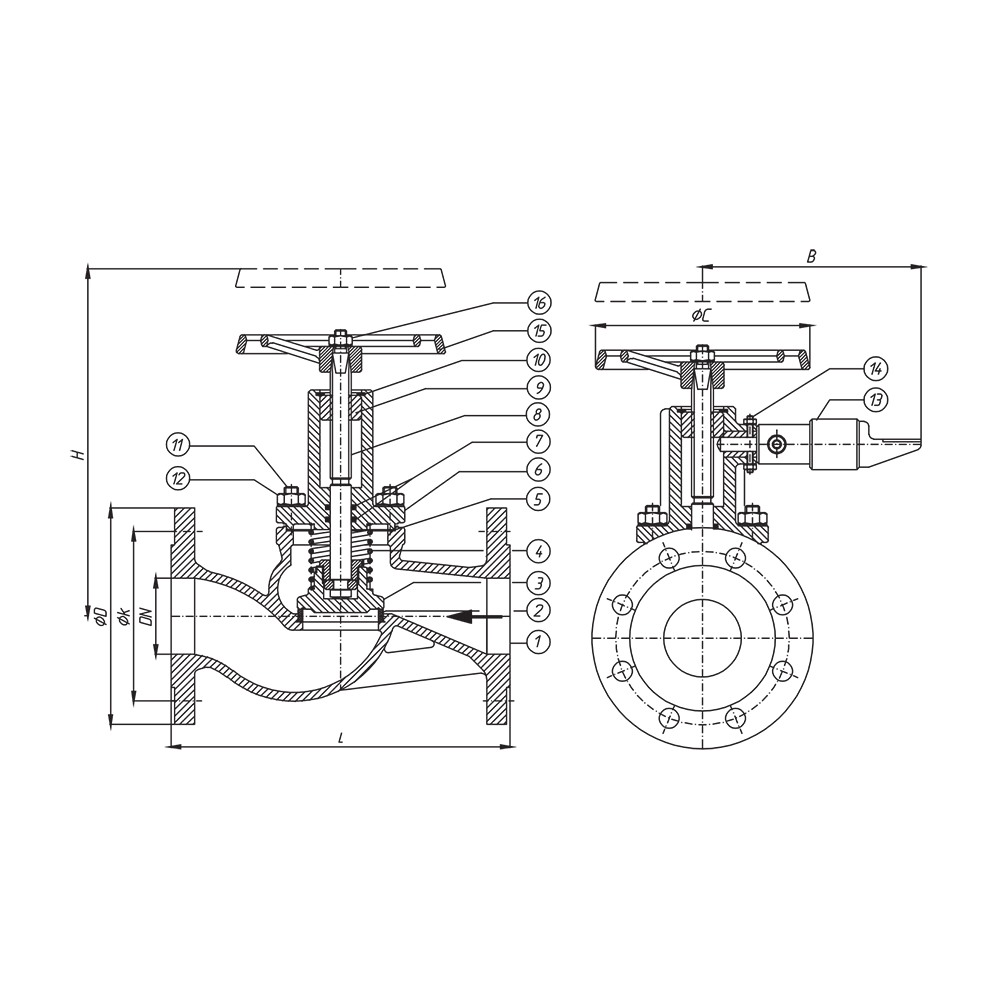

Technical drawings(1 page)
Actuation options
Description
A straight-form quick closing valve rated at PN16, available in sizes DN15 to DN200. The valve features a flanged end connection per DN 2533 with face-to-face dimensions per DIN 3202/2-F1. Optional ANSI and JIS flange configurations are available.
Selection notes
This quick closing valve is a straight form pattern, supplied for flanged installation.
Sizes run DN15 to DN200, in PN16.
The body is offered in GG40, GGG40.3, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Seat and trim options are AISI 304, AISI 316, Bronze RG5 and Duplex. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Built to DIN 3202/2-F1 and DN 2533.
