Quick Closing Valve Control Cabinet
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Pressure Class
- 31 bar
Configure your variant(manually adjust box on the right if you require a different spec)
- Pressure
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| Air Tank | °C | 31 bar |
| Pipe Connections Outlet | °C | 10 bar |

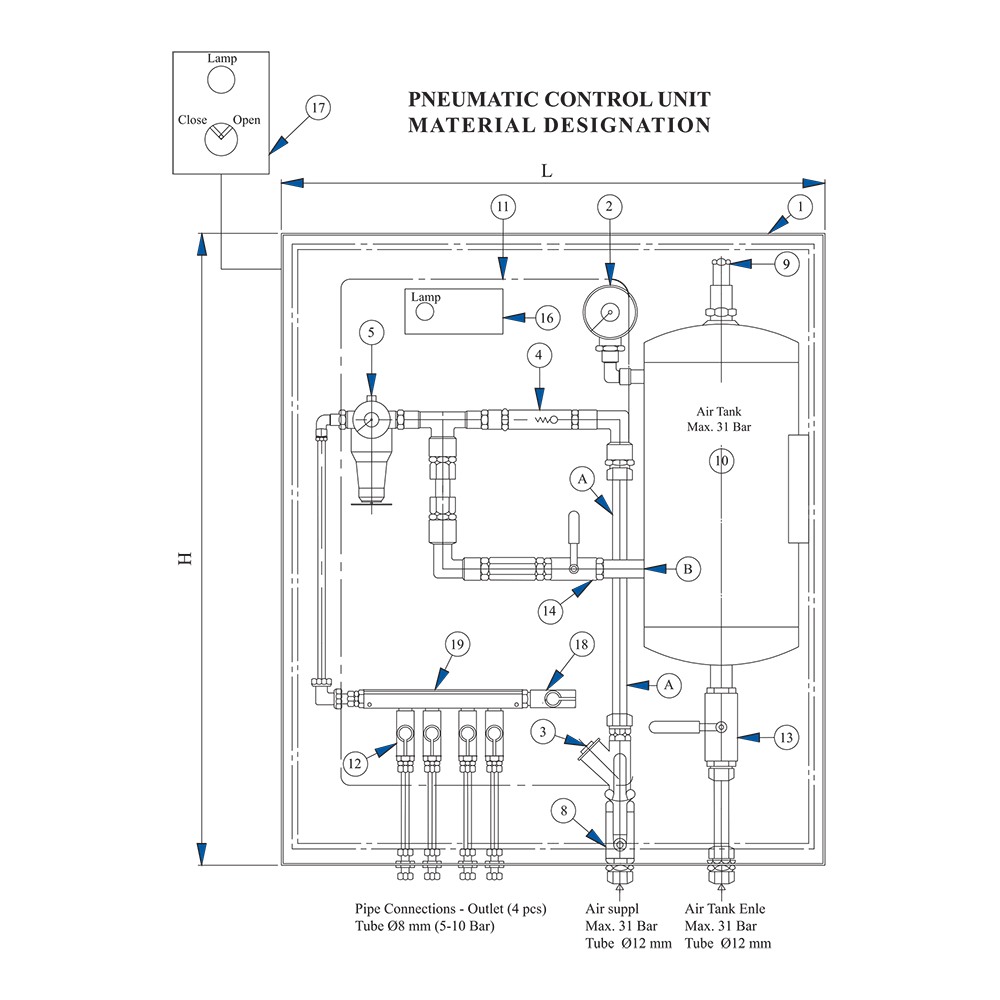

Technical drawings(1 page)
Operating media
Actuation options
Features
- Internal air tank rated to maximum 31 bar
- Pneumatic control circuit with pressure gauge
- 4 outlet pipe connections, tube Ø8 mm, operating pressure 5-10 bar
- Air supply inlet and air tank inlet via tube Ø12 mm, max. 31 bar
- Panel-mounted lamp indicator and close/open selector switch on front door
- Transparent window on cabinet door for internal component visibility
Description
Pneumatic control cabinet designed for operation of quick closing valves. The unit houses an internal air tank rated to a maximum of 31 bar, pressure gauge, solenoid valve, and pneumatic control components within an enclosure. Pipe connections are provided for outlet (4 pcs, tube Ø8 mm, 5-10 bar), air supply (max. 31 bar, tube Ø12 mm), and air tank inlet (max. 31 bar, tube Ø12 mm).
