API Lubricated Plug Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 1/2 to NPS 14
- Pressure Class
- Class 150, Class 300
- End connection
- Flanged · Butt weld
Standards
- Design & manufacture
- API 599, API 6D
- Inspection & test
- API 598
- Face to face
- ASME B16.10
- Flange & end dimension
- ASME B16.25 (butt welding end), ASME B16.5 (end flange)
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Stem
- Packing
- Gasket
- O-Ring
- Bolt
- Check Valve
- Cover
- Gland
- Nozzle
- Nut
- Plug
- Wrench
Dimensions per size(15 sizes)
| Size | L_C150 (mm) | d_C150 (mm) | H_C150 (mm) | W_C150 (mm) | L_C300 (mm) | d_C300 (mm) | H_C300 (mm) | W_C300 (mm) | C300 kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| NPS 1/2 (DN15) | 108 | 13 | 180 | 400 | 140 | 13 | 180 | 400 | 12 | 10 kg |
| NPS 3/4 (DN20) | 117 | 19 | 180 | 400 | 152 | 19 | 180 | 400 | 14 | 12 kg |
| NPS 1 (DN25) | 127 | 25 | 185 | 500 | 165 | 25 | 185 | 500 | 16 | 14 kg |
| NPS 1 1/4 (DN32) | 140 | 32 | 200 | 500 | 178 | 32 | 200 | 600 | 19 | 17 kg |
| NPS 1 1/2 (DN40) | 165 | 38 | 214 | 600 | 190 | 38 | 210 | 600 | 21 | 19 kg |
| NPS 2 (DN50) | 178 | 49 | 215 | 600 | 216 | 49 | 215 | 820 | 24 | 21 kg |
| NPS 2 1/2 (DN65) | 190 | 62 | 250 | 820 | 241 | 62 | 250 | 1000 | 31 | 29 kg |
| NPS 3 (DN80) | 203 | 74 | 270 | 820 | 283 | 74 | 270 | 1000 | 36 | 33 kg |
| NPS 4 (DN100) | 229 | 100 | 300 | 300 | 305 | 100 | 300 | 300 | 61 | 48 kg |
| NPS 5 (DN125) | 254 | 127 | 340 | 300 | 381 | 127 | 340 | 300 | 86 | 75 kg |
| NPS 6 (DN150) | 267 | 150 | 365 | 320 | 403 | 150 | 365 | 320 | 130 | 98 kg |
| NPS 8 (DN200) | 292 | 201 | 400 | 320 | 419 | 201 | 400 | 320 | 190 | 125 kg |
| NPS 10 (DN250) | 330 | 252 | 450 | 350 | 457 | 252 | 450 | 350 | 255 | 171 kg |
| NPS 12 (DN300) | 356 | 303 | 510 | 380 | 502 | 303 | 510 | 380 | 380 | 230 kg |
| NPS 14 (DN350) | 381 | 334 | 590 | 380 | 762 | 334 | 590 | 380 | 560 | 370 kg |

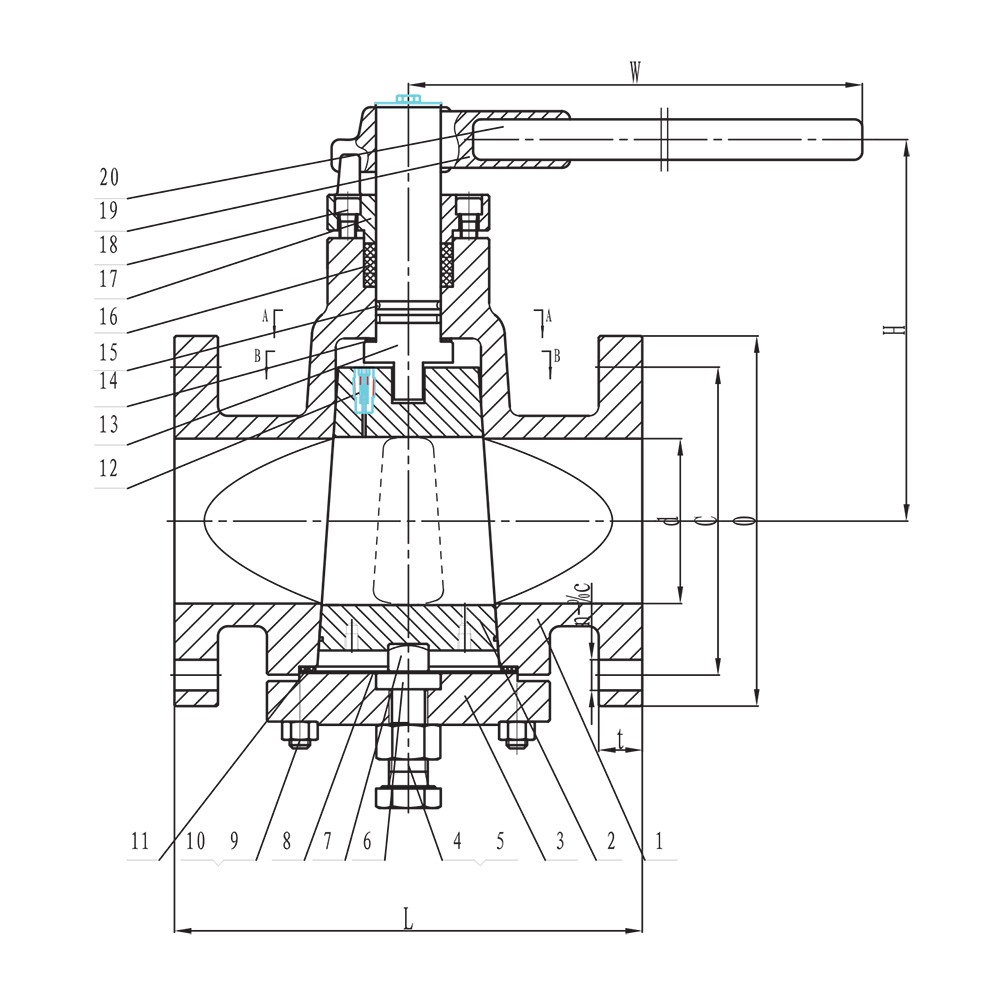

Technical drawings(1 page)
Actuation options
Features
- Inverted pressure-balance construction
- Lubricated plug design
- Tapered plug element
- Check valve incorporated for lubrication retention
- Available in carbon steel, alloy steel, and stainless steel material configurations
Description
Flanged API lubricated plug valve of inverted pressure-balance construction, available in Class 150 and Class 300 pressure ratings. The valve uses a tapered plug element and is suitable for handwheel or gear operation. Materials are available in carbon steel, alloy steel, and stainless steel to ASTM standards.
Selection notes
This plug valve is a lubricated and inverted pressure balance pattern, supplied for flanged and butt weld installation.
Sizes run NPS 1/2 to NPS 14, in Class 150, Class 300.
The body is offered in A216 WCB, A352 LCB, A217 WCI and A217 WC6, so the grade can be matched to the service rather than the other way round.
It is catalogued for Oil & Gas and Industrial Process.
Built to API 599, API 6D, ASME B16.10, API 598 and ASME B16.25 (butt welding end).
