Threaded Needle Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 1/8" to NPS 2"
- Pressure Class
- Up to PN250 / Class 1500
- End connection
- Threaded
- Operating temperature
- -60°C to 500°C
Standards
- Face to face
- EN 10226-1, ANSI-B16.11
- Other standards
- CLASS 150, CLASS 1500
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Stem
- Packing
- Handwheel
- Nut
- Packing Bush
- Packing Nut
- Washer
Dimensions per size(9 sizes)
| Size | Od (inch) | a (mm) | L (mm) | H (mm) | OD (mm) | Weight |
|---|---|---|---|---|---|---|
| DN4 | 1/8" | 11 | 50 | 85 | 60 | 0.04 kg |
| DN6 | 1/4" | 11 | 50 | 85 | 60 | 0.04 kg |
| DN10 | 3/8" | 12 | 55 | 95 | 60 | 0.5 kg |
| DN15 | 1/2" | 14 | 65 | 112 | 75 | 0.1 kg |
| DN20 | 3/4" | 17 | 75 | 122 | 75 | 1.05 kg |
| DN25 | 1" | 20 | 90 | 146 | 90 | 2.45 kg |
| DN32 | 1 1/4" | 22 | 95 | 173 | 100 | 3.2 kg |
| DN40 | 1 1/2" | 25 | 100 | 192 | 125 | 4.35 kg |
| DN50 | 2" | 28 | 112 | 216 | 125 | 7.3 kg |

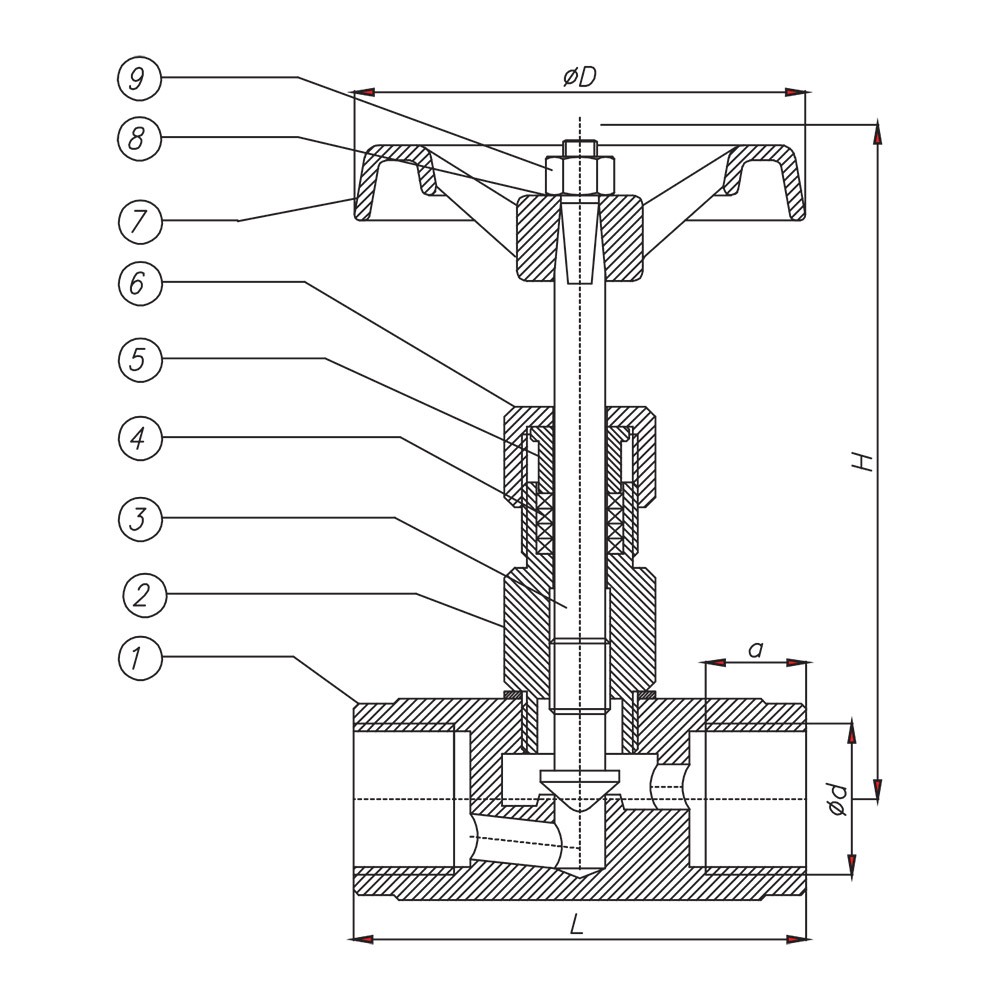

Technical drawings(1 page)
Actuation options
Description
Threaded needle valves available in size range 1/8" to 2", rated from PN 0-250 / CLASS 150 to CLASS 1500. Designed for operation between -60°C and +500°C. End connections conform to EN 10226-1 (BSP) and ANSI-B16.11 (NPT) threading standards.
Selection notes
This needle valve is supplied for threaded installation.
Sizes run NPS 1/8" to NPS 2", in Up to PN250 / Class 1500.
The body is offered in Brass, ASTM A105 and SS, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Working temperature is -60°C to 500°C.
Built to EN 10226-1, ANSI-B16.11, CLASS 150 and CLASS 1500.
