Bronze SDNR Globe Valve - BSPT
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15-DN50
- Pressure Class
- 16 Bar
- Standards
- BSPT
- End connection
- Threaded BSPT
- Operating temperature
- < 170 °C
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- packing
- handwheel
- nameplate
- nut 1
- nut 5

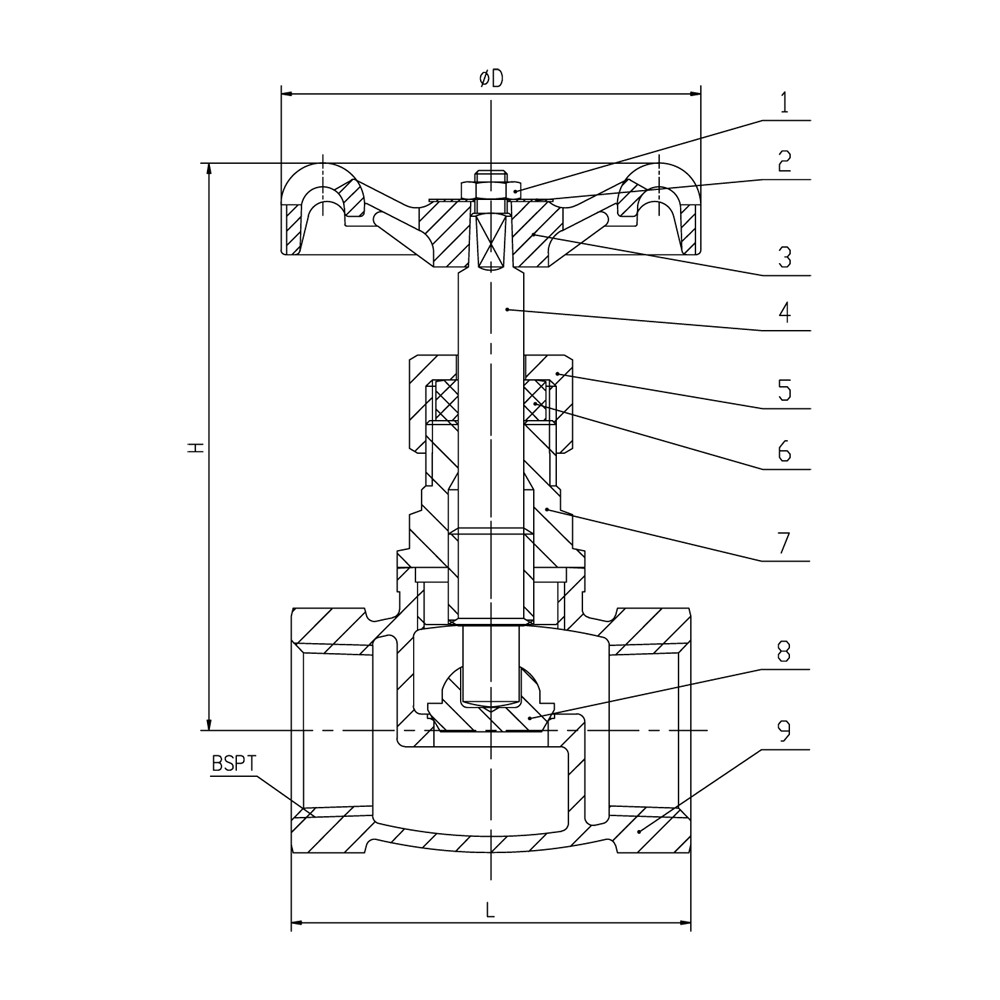

Dimensions per size(6 sizes)
| Size | L | D | H | Weight |
|---|---|---|---|---|
| DN15 | 49 mm | 52 mm | 71 mm | — |
| DN20 | 56 mm | 60 mm | 73 mm | — |
| DN25 | 66 mm | 65 mm | 87 mm | — |
| DN32 | 74 mm | 70 mm | 95 mm | — |
| DN40 | 85 mm | 78 mm | 110 mm | — |
| DN50 | 100 mm | 92 mm | 124 mm | — |
Operating media
Actuation options
Description
A bronze SDNR globe valve with BSPT threaded end connections, rated to 16 bar. Constructed with a Bronze Rg5 body, bonnet, and disc, with a PTFE packing and brass stem. Suitable for water, oil, and gas applications up to 170°C.
