Sampling Double Disc Gate Valve51 of 51 gate valves

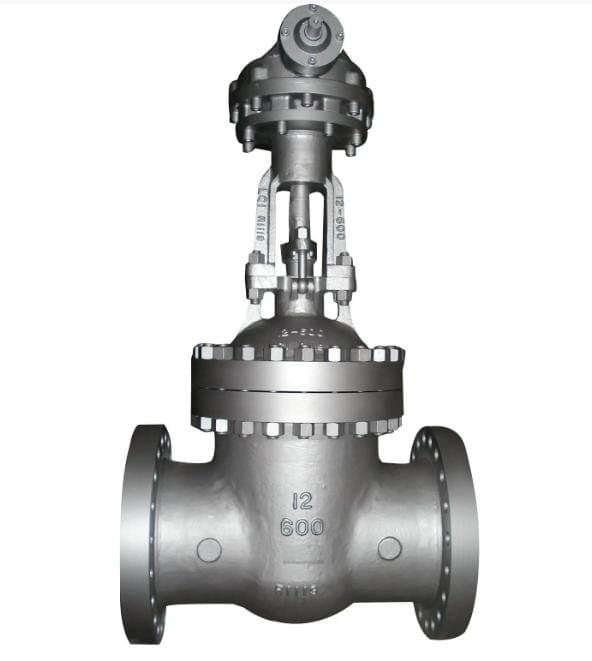

Gate Valve

High Pressure Gate Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
NPS 2" to NPS 18"
Pressure Class
Class 1500, Class 2500
End connection
Flanged · Butt weld
Operating temperature
0°C to 0°C

Standards

Design & manufacture
API 600
Inspection & test
API 598
Face to face
ASME B16.10
Flange & end dimension
ASME B16.25 (butt-weld end preparation)

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Stem
Packing
Gate
Sealing Surface

Actuation options

Manual handwheel

Features

  • Rational structural design with smooth bore and low flow resistance coefficient
  • Sealing surfaces manufactured from stainless steel and hard alloy for extended service life
  • Flexible graphite packing providing reliable stem sealing with light operating effort
  • Covers a broad range of body materials including carbon steel, low-temperature steel, alloy steel and stainless steel

Description

Flanged gate valve designed for high-pressure service in sizes NPS 2" to 18", rated to ASME Class 3500. Body and trim materials cover carbon steel, alloy steel and stainless steel grades; flexible graphite packing is used throughout. Design and testing conform to API 600 and API 598 respectively.

Selection notes

This gate valve is a high pressure pattern, supplied for flanged and butt weld installation.

Sizes run NPS 2" to NPS 18", in Class 1500, Class 2500.

The body is offered in WCB, WC1, WC6 and WC9, so the grade can be matched to the service rather than the other way round.

It is catalogued for Oil & Gas.

Working temperature is 0°C to 0°C.

Built to API 600, ASME B16.10, API 598 and ASME B16.25 (butt-weld end preparation).

Available pressure classes

Pressure classes this product is rated to.

Class 1500Class 2500
