Euro Flow Control
1 of 4 foot valvesFoot Valve Without Spring
Foot Valve

Foot Valve With Spring

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN600
Pressure Class
PN10, PN16
End connection
Flanged

Standards

Inspection & test
EN 12266, API 598
Flange & end dimension
EN 1092-2/B, ASME B16.5, DIN EN 1092 PN10, DIN EN 1092 PN16
Other standards
ASA Class 150

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Seat
Stem
Spring
Basket
Flange
Guide
Ring
Dimensions per size(14 sizes)
SizeL (mm)H (mm)Od (mm)S (mm)PN10 D (mm)PN10 k (mm)PN16 D (mm)PN16 k (mm)ASA150 D (mm)ASA150 k (mm)Weight
DN4085185711.51501101501101501106.2 kg
DN50100200811.5165125165125152.5120.78.8 kg
DN651202451011.5185145185145178139.711 kg
DN801402801111.5200160200160190.5152.414 kg
DN1001703201401.5220180220180229190.519.5 kg
DN1252004001611.525021025021025421630.5 kg
DN1502304501901.5285240285240279.5241.339.5 kg
DN2002885102352340295340295343298.564.5 kg
DN2503546002952395350405355406.5362110 kg
DN3003956503452445400460410483431.4156 kg
DN3504727354102505460520470533.5476.3250 kg
DN4005608604542565515580525597539.8342 kg
DN50067010205542.5670620715650699635590 kg
DN60071014006542.5780725840770813749.3630 kg

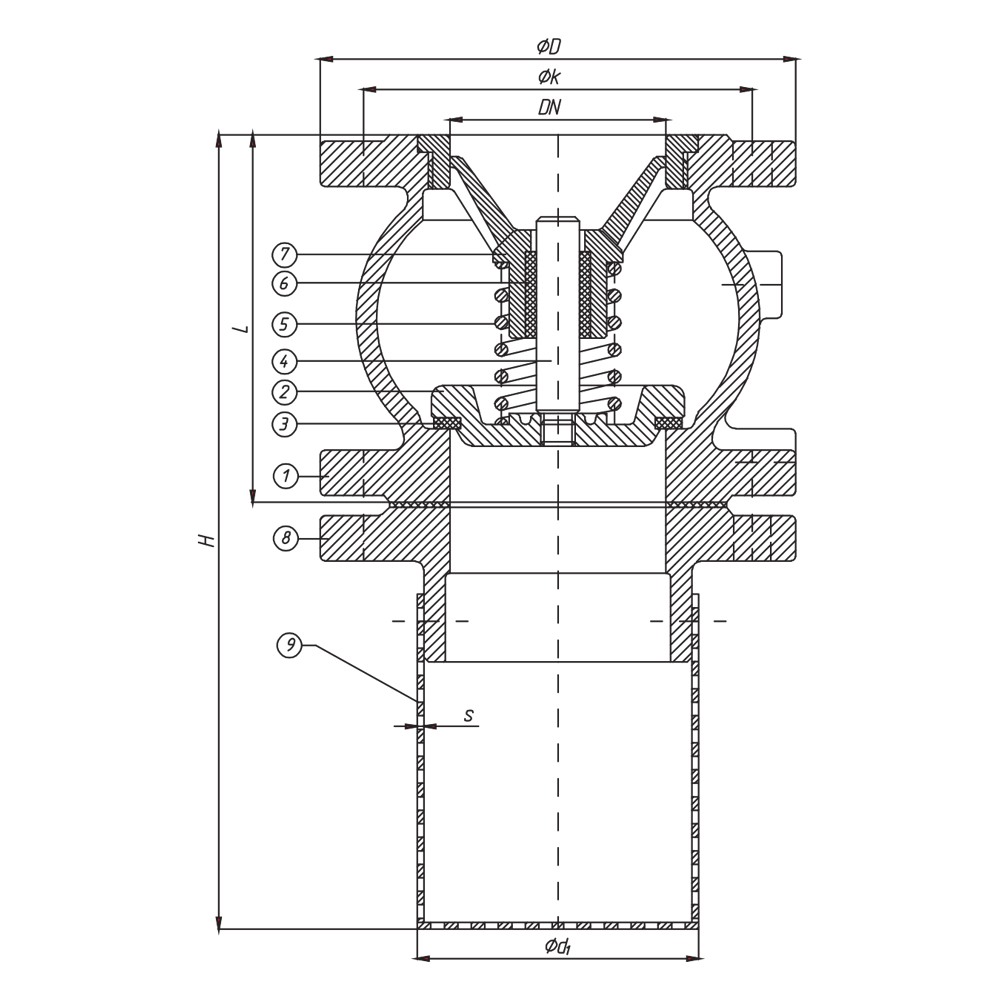

Technical drawings(1 page)

Operating media

Water

Features

  • Integral basket strainer at inlet
  • Spring-assisted disc closure
  • Suitable for use at suction pipe base
  • Available in multiple body and disc material combinations
  • Flanged ends compatible with EN 1092-2/B and ASME B16.5

Description

Spring-loaded foot valve (strainer type) designed for installation at the base of suction pipes. Available in flanged end connections conforming to EN 1092-2/B and ASME B16.5, with an integral basket strainer. Rated for PN 10-16 / Class 150 across a size range of DN40 to DN600.

Selection notes

This foot valve is a spring-loaded and with strainer basket pattern, supplied for flanged installation.

Sizes run DN40 to DN600, in PN10, PN16.

The body is offered in GGG25, GGG-40,3, G-SC25 and Bronze, so the grade can be matched to the service rather than the other way round.

Seat and trim options are NBR, EPDM, SS and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater and Industrial Process.

Built to EN 12266, API 598, EN 1092-2/B, ASME B16.5 and DIN EN 1092 PN10.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16

Used in

Water & WastewaterIndustrial Process
