Pressure Management Valve - Type III
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50-DN800
- Pressure Class
- PN10 / PN16 / PN25
- Standards
- EN 1074-5
- End connection
- EN 1092-2 flange
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- accessories
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | -10°C | 10 bar |
| PN16 | -10°C | 16 bar |
| PN25 | -10°C | 25 bar |
| PN10 | 80°C | 10 bar |
| PN16 | 80°C | 16 bar |
| PN25 | 80°C | 25 bar |

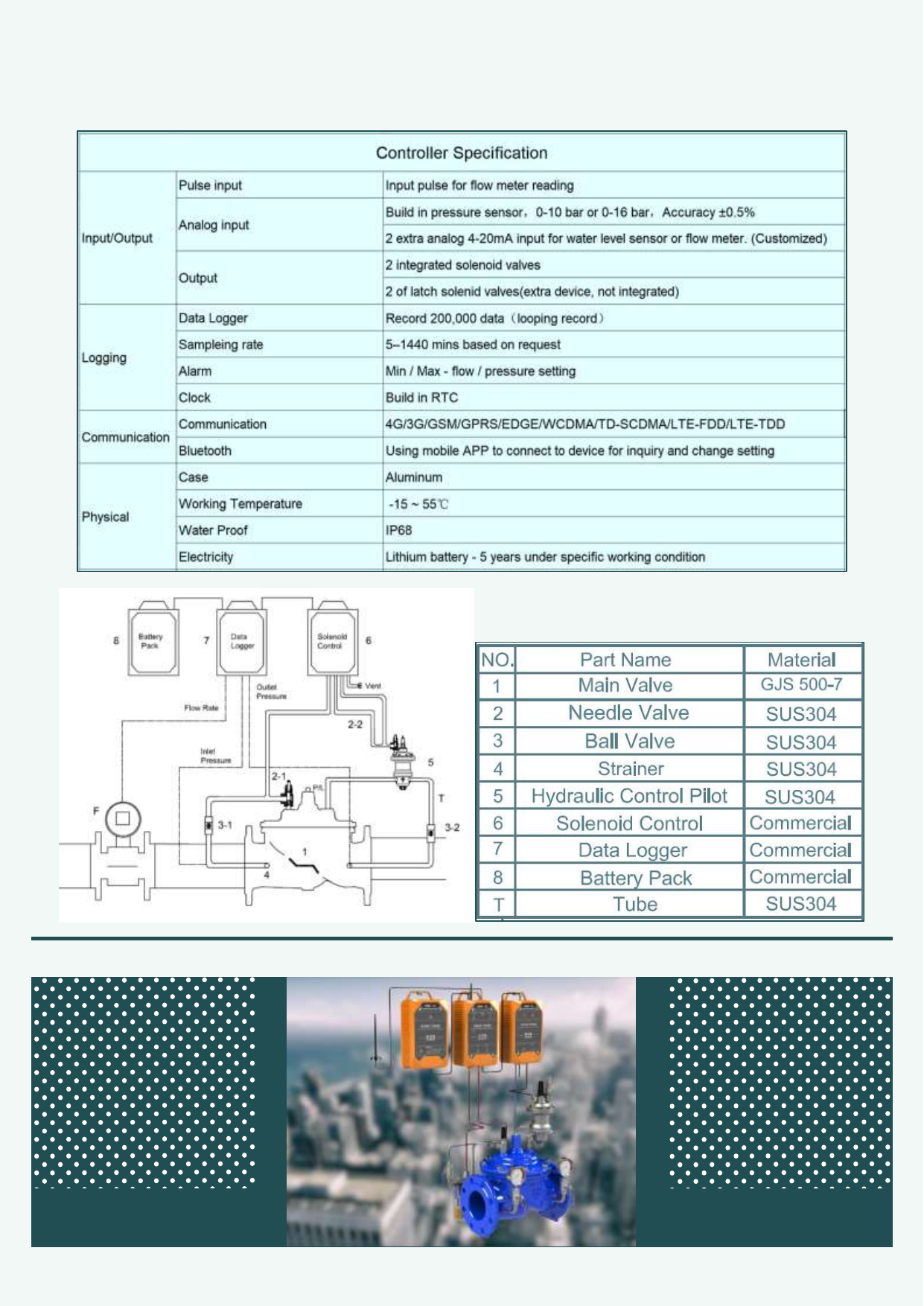

Technical drawings(12 pages)
Approvals
Features

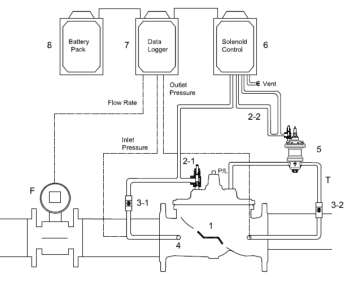

- The Type III pressure management valve combines time-based, flow-modulated and remotely adjustable pressure control in a single advanced pilot assembly
- Three control modes can be blended to optimise pressure according to the network's demand profile
- Compatible with SCADA set-point override via a 4-20mA input, allowing the control centre to adjust the pressure set point in real time in response to events or modelling outputs
Description
Advanced multi-variable pressure management for smart networks. The Type III pressure management valve combines time-based, flow-modulated and remotely adjustable pressure control in a single advanced pilot assembly. Three control modes can be blended to optimise pressure according to the network's demand profile. Compatible with SCADA set-point override via a 4-20mA input, allowing the control centre to adjust the pressure set point in real time in response to events or modelling outputs.
