Cock Valve
Sounding Cocks Valve 90° Stop Turning Lever
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN32 to DN65
- Pressure Class
- PN25
- End connection
- Threaded
Standards
- Design & manufacture
- DIN 86 120
- Flange & end dimension
- DIN 259, ISO R 228
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Gasket
- O-Ring
- Cock
- Dust Cap
- Handlelever
- Nut
- Test Valve
Dimensions per size(4 sizes)
| Size | L1 (mm) | L2 (mm) | H (mm) | Od (inch) | AA (mm) | L (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN32 | 120 | 135 | 85 | 1 1/4" | 55 | 190 | 3.5 kg |
| DN40 | 125 | 140 | 85 | 1 1/2" | 55 | 190 | 4 kg |
| DN50 | 125 | 140 | 85 | 2" | 70 | 190 | 4.5 kg |
| DN65 | 130 | 145 | 85 | 2 1/2" | 85 | 190 | 5 kg |

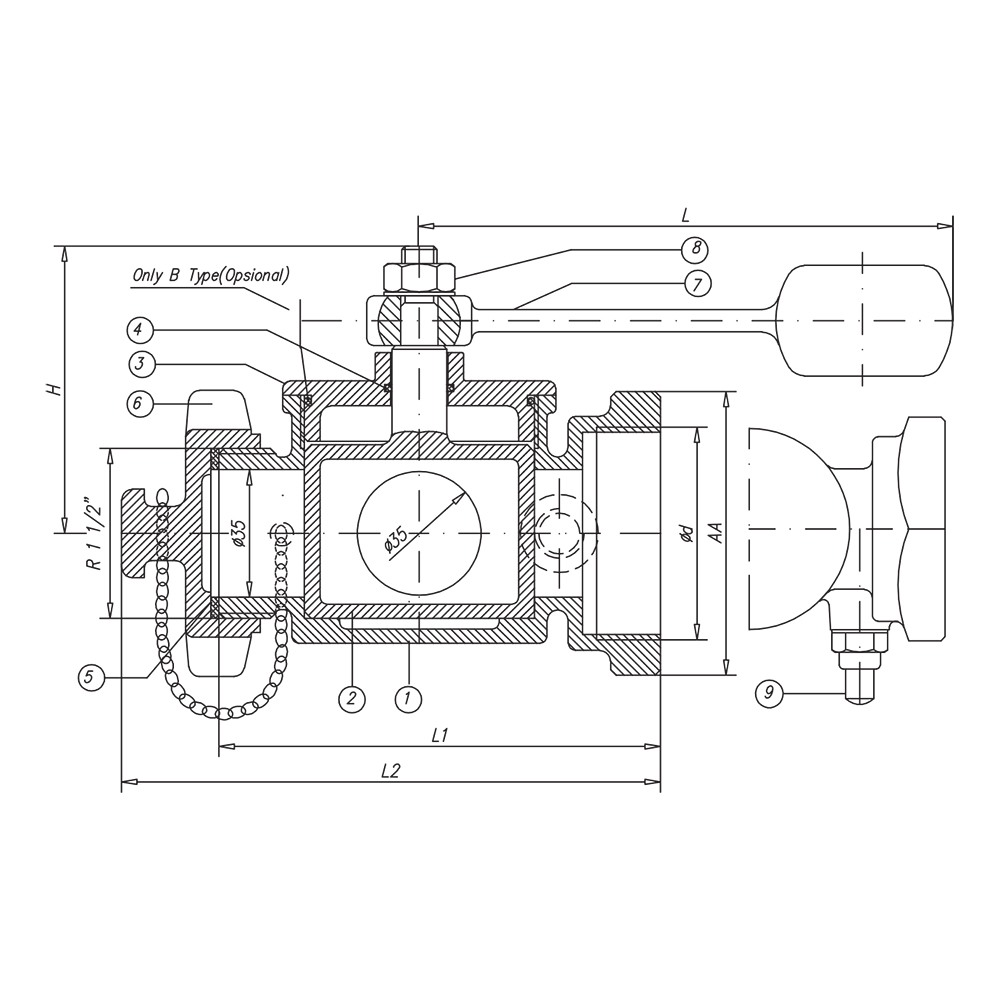

Technical drawings(1 page)
Operating media
Sounding / tank gauging applications
Actuation options
Manual lever
Features
- Full bore design
- 90° stop turning lever operation
- Threaded end connections
- Integrated test valve (item 9)
- Dust cap included
- Optional Type B configuration available
Description
A full bore threaded sounding cock valve with 90° stop turning lever operation. Designed to DIN 86 120 with threaded end connections per DIN 259 / ISO / R 228. Available in sizes DN32 to DN65 at PN 2.5 pressure rating.
Selection notes
This cock valve is a sounding cock and full bore pattern, supplied for threaded installation.
Sizes run DN32 to DN65, in PN25.
The body is G-CuSn 5 Zn Pb.
Stated service media include sounding / tank gauging applications.
It is catalogued for Marine & Offshore and HVAC.
Built to DIN 86 120, DIN 259 and ISO R 228.
