Stainless Steel Ball Valve Full Bore27 of 54 ball valvesBall Valve, Full Bore
Ball Valve

2-PCS Ball Valve, Full Bore

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN250
Pressure Class
PN10, PN16, PN25, PN40
End connection
Flanged

Standards

Design & manufacture
DIN 3357
Inspection & test
EN 12266
Face to face
EN 558 Serie 14, DIN 3202-F4, EN 558 Serie 15, DIN 3202-F5
Flange & end dimension
EN 1092-1
Mounting
ISO 5211

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Ball
Seat
Stem
Packing
Gasket
O-Ring
Gland
Lever
Lock
Nut
Screw
Screw Nut
Spring Washer
Thrust Gasket
Dimensions per size(52 sizes)
SizeD (mm)K (mm)n-dL (mm)C (mm)Weight
DN15 (PN10)95654-141151302.4 kg
DN15 (PN16)95654-141151302.4 kg
DN15 (PN25)95654-141151302.4 kg
DN15 (PN40)95654-141151302.4 kg
DN20 (PN10)105754-141201303.1 kg
DN20 (PN16)105754-141201303.1 kg
DN20 (PN25)105754-141201303.1 kg
DN20 (PN40)105754-141201303.1 kg
DN25 (PN10)115854-141251303.9 kg
DN25 (PN16)115854-141251303.9 kg
DN25 (PN25)115854-141251303.9 kg
DN25 (PN40)115854-141251303.9 kg
DN32 (PN10)1401004-181301705.4 kg
DN32 (PN16)1401004-181301705.4 kg
DN32 (PN25)1401004-181301705.4 kg
DN32 (PN40)1401004-181301705.4 kg
DN40 (PN10)1501104-181401706.3 kg
DN40 (PN16)1501104-181401706.3 kg
DN40 (PN25)1501104-181401706.3 kg
DN40 (PN40)1501104-181401706.3 kg
DN50 (PN10)1651254-181501958.3 kg
DN50 (PN16)1651254-181501958.3 kg
DN50 (PN25)1651254-181501958.3 kg
DN50 (PN40)1651254-181501958.3 kg
DN65 (PN10)1851454-1817019511.7 kg
DN65 (PN16)1851454-1817019511.7 kg
DN65 (PN25)1851454-1817019511.7 kg
DN65 (PN40)1851454-1817019511.7 kg
DN80 (PN10)2001608-1818024514.3 kg
DN80 (PN16)2001608-1818024514.3 kg
DN80 (PN25)2001608-1818024514.3 kg
DN80 (PN40)2001608-1818024514.3 kg
DN100 (PN10)2201808-1819027517.1 kg
DN100 (PN16)2201808-1819027517.1 kg
DN100 (PN25)2351908-2219027517.1 kg
DN100 (PN40)2351908-2219027517.1 kg
DN125 (PN10)2502108-2232529532.3 kg
DN125 (PN16)2502108-2232529532.3 kg
DN125 (PN25)2702208-2632529532.3 kg
DN125 (PN40)2702208-2632529532.3 kg
DN150 (PN10)2852408-2235053042.3 kg
DN150 (PN16)2852408-2235053042.3 kg
DN150 (PN25)3002508-2635053042.3 kg
DN150 (PN40)3002508-2635053042.3 kg
DN200 (PN10)34029512-2240062569.9 kg
DN200 (PN16)34029512-2240062569.9 kg
DN200 (PN25)36031012-2640062569.9 kg
DN200 (PN40)37532012-3040062569.9 kg
DN250 (PN10)39535012-22450—157 kg
DN250 (PN16)40535512-26450—157 kg
DN250 (PN25)42537012-30450—157 kg
DN250 (PN40)45038512-33450—157 kg
Operating torque(11 sizes)
Size
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN125
DN150

Wet opening torque, indicative. Size the actuator with margin and confirm at quotation.

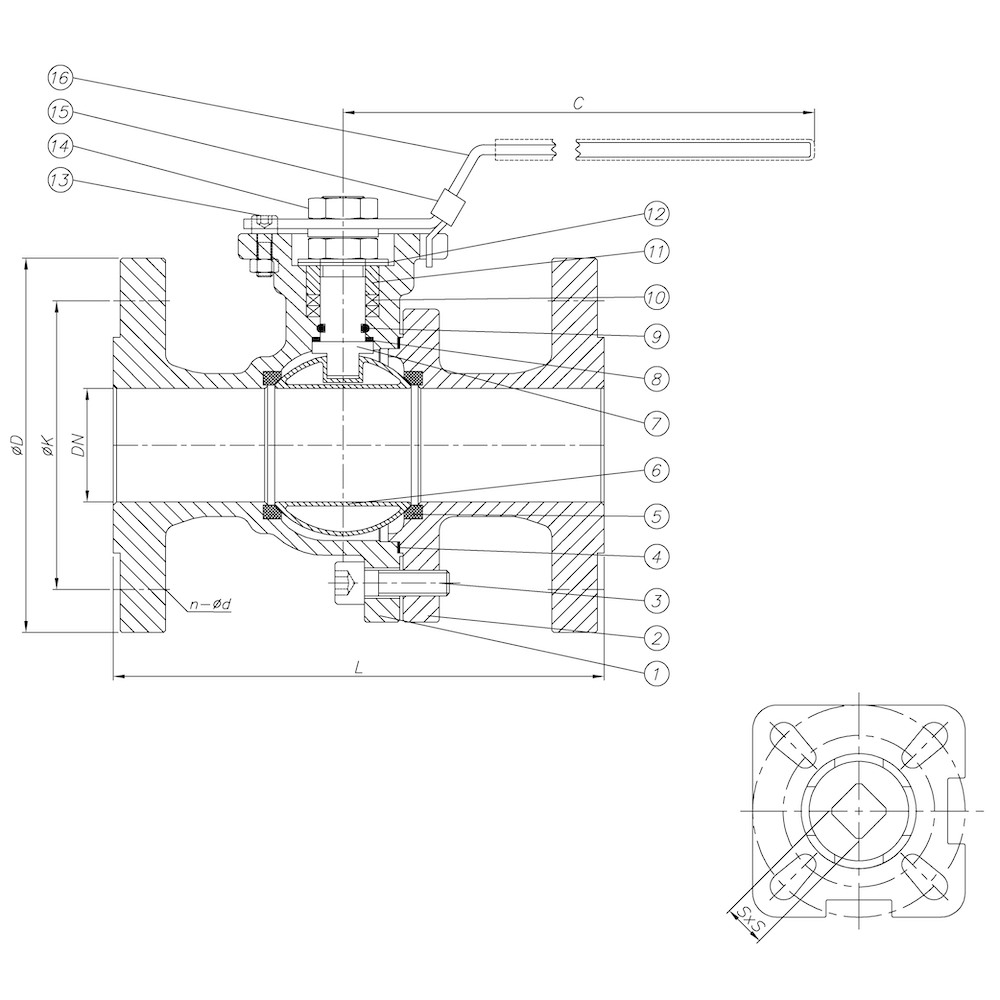

Technical drawings(1 page)

Actuation options

Manual leverPneumatic single-actingElectric 230V ACManual gearbox

Approvals

DIN 3357EN 558DIN 3202EN 1092EN 12266API 598ISO 5211DIN 3202-F4/F5

Features

  • Two-piece body construction
  • Full bore design
  • ISO 5211 top flange mounting pad for actuator fitment
  • Available with SxS (socket x socket) connection on smaller sizes
  • Dual ISO 5211 flange size options per nominal diameter

Description

A two-piece full bore flanged ball valve designed to DIN 3357, available in DN15 to DN250. Body and bonnet are offered in carbon steel (WCB) or stainless steel (SS 304 / SS 316), with PTFE seats and ball in SS 304 or SS 316. Pressure ratings cover PN10 through PN40 with flanged ends conforming to EN 1092-1.

Selection notes

This ball valve is a 2-piece and full bore pattern, supplied for flanged installation.

Sizes run DN15 to DN250, in PN10, PN16, PN25, PN40.

The body is offered in WCB, SS 304 and SS 316, so the grade can be matched to the service rather than the other way round.

Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to DIN 3357, EN 558 Serie 14, DIN 3202-F4, EN 558 Serie 15 and DIN 3202-F5.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25PN40

Used in

Industrial Process
