Diaphragm Type Fire Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN65 to DN80
- Pressure Class
- Class 150
- End connection
- Flanged
Standards
- Design & manufacture
- Manufacturer standard
- Inspection & test
- EN 12266, API 598
- Face to face
- DIN 86211
- Flange & end dimension
- ASME B16.5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Gasket
- Handwheel
- Diaphragm
- Bolt Nut
- Chain Rope
- Coupling Cover
- Coupling Seal
- Fixed Coupling
- Spring Pin
Dimensions per size(2 sizes)
| Size | L (mm) | L1 (mm) | H_close (mm) | H_open (mm) | G (inch) | d1 (mm) | C (mm) | OD (mm) | OK (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN65 | 190 | 270 | 155 | 190 | 2-1/2" | 85 | 120 | 178 | 139.7 | 12.6 kg |
| DN80 | 190 | 270 | 155 | 190 | 2-1/2" | 85 | 120 | 190.5 | 152.4 | 13 kg |

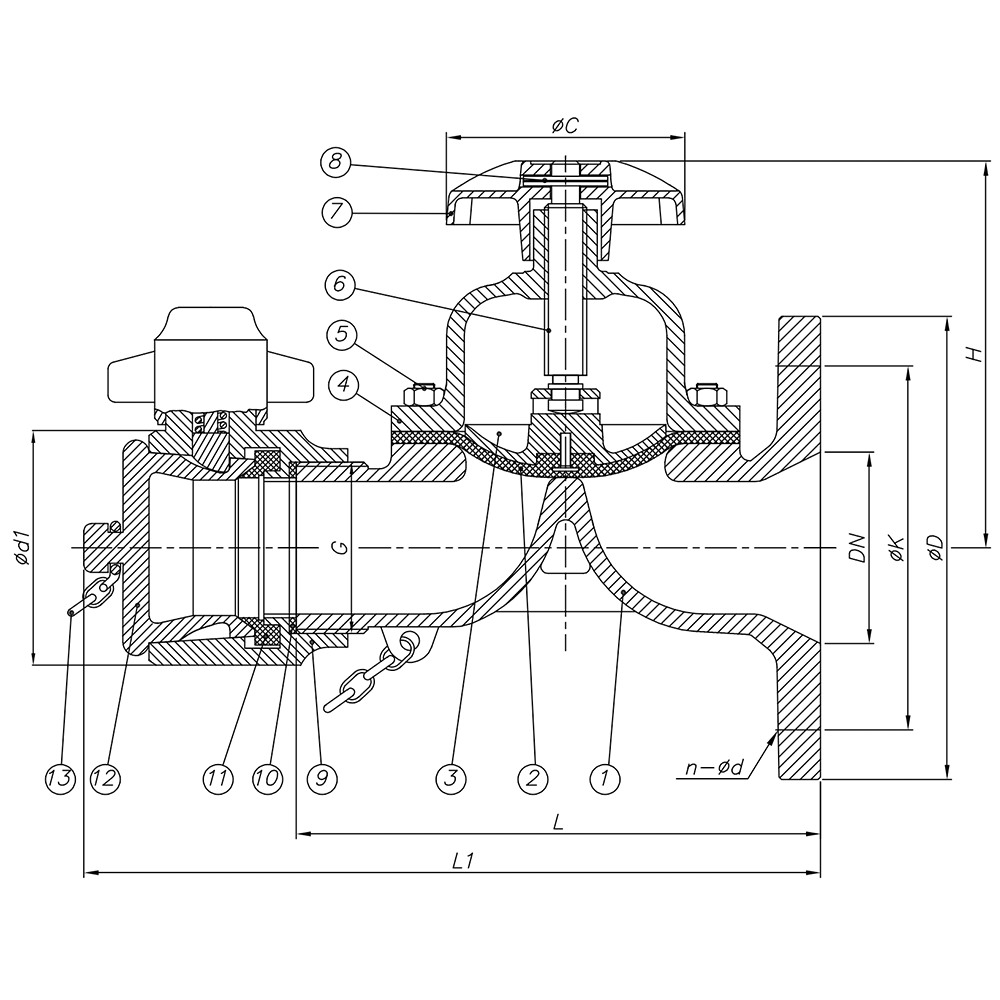

Technical drawings(1 page)
Actuation options
Features
- Diaphragm-type construction for fire-fighting service
- Coupling options: Storz, BS 336, Nor, Nakajima
- Chain/rope retention for coupling cover
- Multiple flange standards available (EN, JIS, VG) in addition to ASME B16.5
Description
A diaphragm type fire valve designed for fire-fighting applications, available in DN65 and DN80 sizes rated to Class 150. The valve features a flanged end connection to ASME B16.5 with additional flange options for EN, JIS, and VG standards. Coupling options include Storz, BS 336, Nor, and Nakajima types.
Selection notes
This diaphragm valve is a fire valve and fire hydrant pattern, supplied for flanged installation.
Sizes run DN65 to DN80, in Class 150.
The body is Bronze Rg5.
It is catalogued for Marine & Offshore and Fire Protection.
Built to Manufacturer standard, DIN 86211, EN 12266, API 598 and ASME B16.5.
