Tilting Type Check Valve29 of 59 check valvesAPI Swing Check Valve
Check Valve

Wafer Tilting Disc Check Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN1000
Pressure Class
PN10, PN16, PN25
End connection
Wafer
Operating temperature
-10°C to 120°C

Standards

Inspection & test
API 598, DIN EN 12266
Face to face
DIN EN 558-1-16
Flange & end dimension
DIN EN 1092

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Seat
Stem
Disc Seat
Plug
Dimensions per size(19 sizes)
SizeØd (mm)Ød1 (mm)ØA (mm)L (mm)H (mm)Weight
DN4034404533—0.8 kg
DN5044505443—1 kg
DN6558656446—2 kg
DN8072808564—3 kg
DN100901009564—4.5 kg
DN12511212511570—6.5 kg
DN15013515013576—7.5 kg
DN2001802002208915515 kg
DN25022525022011418226.5 kg
DN30027030025011421033.5 kg
DN35031535029512724054 kg
DN40036540034014027566 kg
DN45041045037015230092 kg
DN500460500405152325110 kg
DN600555600500178390178 kg
DN700650700616229460245 kg
DN800745800670241515385 kg
DN900835900750241562445 kg
DN10009301000760300625780 kg

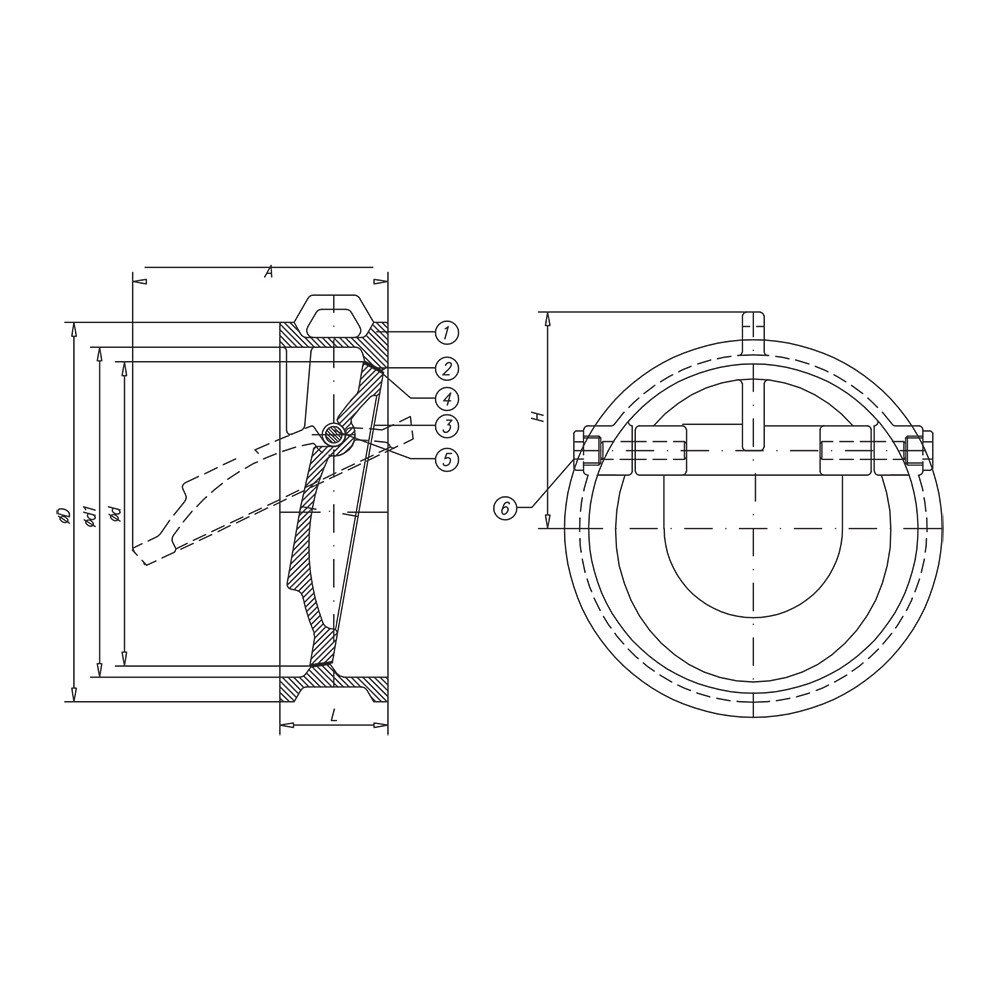

Technical drawings(1 page)

Description

A wafer-type tilting disc check valve designed for installation between flanges conforming to DIN EN 1092. Available in pressure ratings PN10, PN16, and PN25, with body materials including grey cast iron, cast steel, stainless steel, and bronze. Operating temperature range is -10°C to +120°C.

Selection notes

This check valve is a wafer type and tilting disc pattern, supplied for wafer installation.

Sizes run DN40 to DN1000, in PN10, PN16, PN25.

The body is offered in GG 25, GS-C 25, AISI 304 and AISI 316, so the grade can be matched to the service rather than the other way round.

Seat and trim options are Welded 13 Cr, Stellite 6 and Stellite 21. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Working temperature is -10°C to 120°C.

Built to DIN EN 558-1-16, API 598, DIN EN 12266 and DIN EN 1092.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25

Used in

Industrial Process
