Wafer Check Valve28 of 59 check valvesWafer Tilting Disc Check Valve
Check Valve

Tilting Type Check Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN100 to DN1400
Pressure Class
PN10, PN16, PN25, PN40
End connection
Flanged
Operating temperature
-10°C to 120°C

Standards

Design & manufacture
DIN EN 558-1-16
Inspection & test
DIN EN 12266, API 598
Face to face
DIN EN 558-14, BS 5155, DIN 3202 F4, DIN 3202/2-F4
Flange & end dimension
DIN EN 1092-1-2

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Stem
Bushing
O-Ring
Bolt
Cover Driven End
Key
Lever
Retaining Ring
Screw
Sealing Ring
Setscrew
Weight
Dimensions per size(68 sizes)
SizeD (mm)k (mm)boltsL_DIN3202F4 (mm)L_BS5155 (mm)e1 (mm)e2 (mm)h1 (mm)I1 (mm)I2 (mm)h2 (mm)Weight
DN100 (PN10)220180Ø18x8190127192160135200220—20 kg
DN100 (PN16)220180Ø18x8190127192160135200220—20 kg
DN100 (PN25)235190Ø22x8190127192160135200220—20 kg
DN100 (PN40)235190Ø22x8190127192160135200220—20 kg
DN125 (PN10)250210Ø22x820014021518315620025018928 kg
DN125 (PN16)250210Ø22x820014021518315620025018928 kg
DN125 (PN25)270220Ø26x820014021518315620025018928 kg
DN125 (PN40)270220Ø26x820014021518315620025018928 kg
DN150 (PN10)285240Ø22x1221014023820618020028518936 kg
DN150 (PN16)285240Ø22x1221014023820618020028518936 kg
DN150 (PN25)300250Ø26x1221014023820618020028518936 kg
DN150 (PN40)300250Ø30x1221014023820618020028518936 kg
DN200 (PN10)340295Ø22x1223015226323122020034018950 kg
DN200 (PN16)340295Ø22x1223015226323122020034018950 kg
DN200 (PN25)360310Ø26x1223015226323122020034018950 kg
DN200 (PN40)375320Ø33x1223015226323122020034018950 kg
DN250 (PN10)395350Ø26x1225016531327626530026028070 kg
DN250 (PN16)405355Ø26x1225016531327626530026028070 kg
DN250 (PN25)425370Ø30x1225016531327626530026028070 kg
DN250 (PN40)450385Ø33x1625016531327626530026028070 kg
DN300 (PN10)445400Ø26x16270178326289305300335372110 kg
DN300 (PN16)460410Ø26x16270178326289305300335372110 kg
DN300 (PN25)485430Ø30x16270178326289305300335372110 kg
DN300 (PN40)515450Ø33x16270178326289305300335372110 kg
DN350 (PN10)505460Ø26x16290190388346357400345405145 kg
DN350 (PN16)520470Ø30x16290190388346357400345405145 kg
DN350 (PN25)555490Ø33x16290190388346357400345405145 kg
DN350 (PN40)580510Ø36x16290190388346357400345405145 kg
DN400 (PN10)565515Ø26x20310216418376395400375460180 kg
DN400 (PN16)580525Ø30x16310216418376395400375460180 kg
DN400 (PN25)620550Ø35x16310216418376395400375460180 kg
DN400 (PN40)660585Ø39x16310216418376395400375460180 kg
DN450 (PN10)615565Ø26x20330222470420440450450460240 kg
DN450 (PN16)640585Ø30x20330222470420440450450460240 kg
DN450 (PN25)670600Ø36x20330222470420440450450460240 kg
DN450 (PN40)685610Ø36x20330222470420440450450460240 kg
DN500 (PN10)670620Ø26x20350229495453490500470500280 kg
DN500 (PN16)715650Ø30x20350229495453490500470500280 kg
DN500 (PN25)730660Ø36x20350229495453490500470500280 kg
DN500 (PN40)755720Ø42x20350229495453490500470500280 kg
DN600 (PN10)780725Ø30x20390267592540580600545555410 kg
DN600 (PN16)840800Ø33x20390267592540580600545555410 kg
DN600 (PN25)845770Ø39x20390267592540580600545555410 kg
DN600 (PN40)890795Ø48x20390267592540580600545555410 kg
DN700 (PN10)895840Ø30x24430292688623635700590642540 kg
DN700 (PN16)910950Ø33x24430292688623635700590642540 kg
DN700 (PN25)960875Ø42x24430292688623635700590642540 kg
DN700 (PN40)995900Ø48x24430292688623635700590642540 kg
DN800 (PN10)1015950Ø33x28470318725656713800660735680 kg
DN800 (PN16)10251050Ø36x28470318725656713800660735680 kg
DN800 (PN25)1085990Ø48x24470318725656713800660735680 kg
DN800 (PN40)11401030Ø56x24470318725656713800660735680 kg
DN900 (PN10)11151050Ø33x285103308257407959007208301050 kg
DN900 (PN16)11251170Ø36x285103308257407959007208301050 kg
DN900 (PN25)11851090Ø48x285103308257407959007208301050 kg
DN900 (PN40)12501140Ø56x245103308257407959007208301050 kg
DN1000 (PN10)12301160Ø36x2855041083276489010007709201250 kg
DN1000 (PN16)12551380Ø39x2855041083276489010007709201250 kg
DN1000 (PN25)13201210Ø56x2855041083276489010007709201250 kg
DN1000 (PN40)13601250Ø62x3255041083276489010007709201250 kg
DN1200 (PN10)14551380Ø41x3263047010009001042120096510872100 kg
DN1200 (PN16)14851590Ø42x2863047010009001042120096510872100 kg
DN1200 (PN25)15301420Ø57x3263047010009001042120096510872100 kg
DN1200 (PN40)15751460Ø62x3263047010009001042120096510872100 kg
DN1400 (PN10)16751590Ø44x36710—124611001200140096512803400 kg
DN1400 (PN16)16851590Ø50x36710—124611001200140096512803400 kg
DN1400 (PN25)17551640Ø62x36710—124611001200140096512803400 kg
DN1400 (PN40)17951680Ø62x36710—124611001200140096512803400 kg

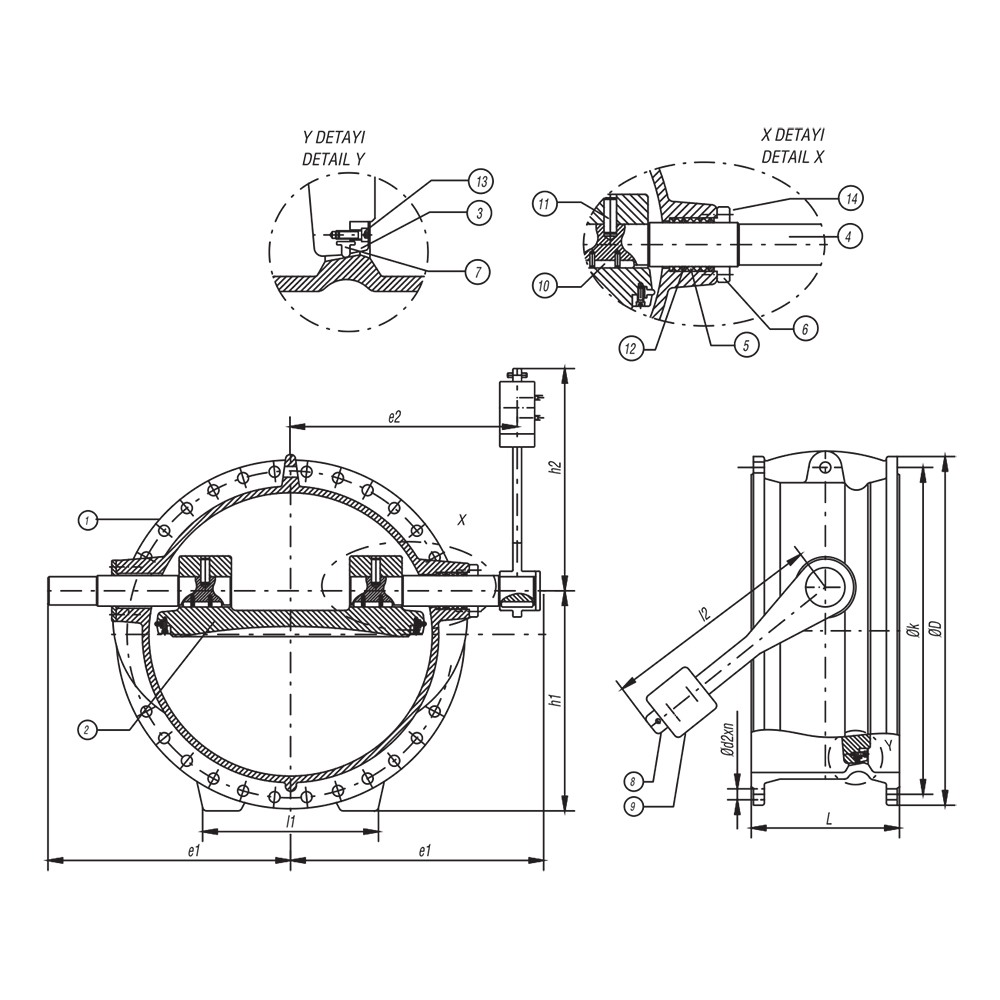

Technical drawings(1 page)

Features

  • Tilting disc design for check function
  • External lever and counterweight mechanism
  • Flanged end connections per DIN EN 1092
  • Available in ductile iron, cast steel, and stainless steel body materials
  • Bearing bush in Delrin or PTFE
  • EPDM / BUNA-N O-ring sealing
  • Size range DN100 to DN1400
  • Pressure ratings PN10, PN16, PN25, PN40

Description

Tilting disc check valve with flanged ends, available in pressure ratings PN10 through PN40. Body and disc constructed from GGG 40/50 or stainless steel variants. Operating temperature range -10 to +120°C, designed and tested to DIN EN standards.

Selection notes

This check valve is a tilting disc pattern, supplied for flanged installation.

Sizes run DN100 to DN1400, in PN10, PN16, PN25, PN40.

The body is offered in GGG 40, GGG 50, GSC25 and 304, so the grade can be matched to the service rather than the other way round.

It is catalogued for Industrial Process.

Working temperature is -10°C to 120°C.

Built to DIN EN 558-1-16, DIN EN 558-14, BS 5155, DIN EN 12266 and API 598.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25PN40

Used in

Industrial Process
