Single & Double Air Release Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN250
- Pressure Class
- PN16, PN25
- End connection
- Flanged
Standards
- Inspection & test
- EN 12266
- Face to face
- EN 1092-2
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Ball
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Cover
- Mid Cover
- Nozzle
- Packing Nut
- Top Cover
Dimensions per size(11 sizes)
| Size | B (mm) | H (mm) | OD (mm) | Ok (mm) | PN25 kg (kg) | d1 (mm) | L (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN50 | 160 | 230 | 165 | 125 | 9 | — | — | 8 kg |
| DN80 | 250 | 290 | 200 | 160 | 19 | — | — | 17 kg |
| DN100 | 270 | 330 | 220 | 180 | 20 | — | — | 18 kg |
| DN150 | 310 | 435 | 285 | 240 | 55 | — | — | 50 kg |
| DN200 | 310 | 440 | 340 | 295 | 61 | — | — | 55 kg |
| DN50 | 160 | 320 | 165 | 125 | 25.5 | 200 | 400 | 23 kg |
| DN80 | 250 | 415 | 200 | 160 | 69 | 250 | 650 | 62.5 kg |
| DN100 | 270 | 470 | 220 | 180 | 70 | 250 | 680 | 63.7 kg |
| DN150 | 310 | 570 | 285 | 240 | 130 | 400 | 760 | 130 kg |
| DN200 | 380 | 675 | 340 | 295 | 264 | 400 | 910 | 240 kg |
| DN250 | 380 | 675 | 405 | 355 | 278 | 500 | 910 | 253 kg |

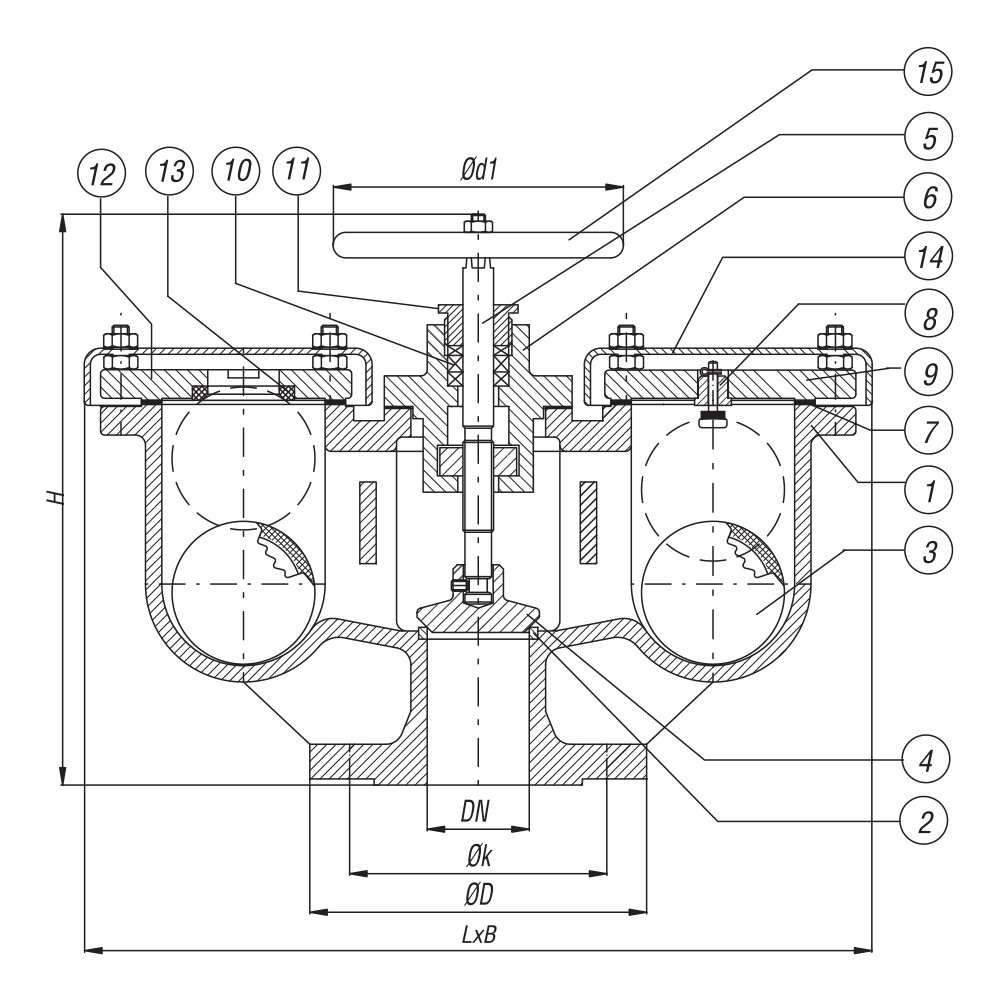

Technical drawings(1 page)
Operating media
Description
Single and double air release valves (air vent type) with flanged ends to EN 1092-2, available in single-ball and double-ball configurations. Designed for pressure ratings PN 16-25 across size ranges DN50 - DN200 (single) and DN50 - DN250 (double). Body and cover in grey/ductile cast iron with EPDM or Klingerit sealing elements.
Selection notes
This air release valve is a single, double and air vent pattern, supplied for flanged installation.
Sizes run DN50 to DN250, in PN16, PN25.
The body is offered in GG 25 and GGG-40, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Ms 58, Bronze and SS. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water and air.
It is catalogued for Water & Wastewater and Industrial Process.
Built to EN 1092-2 and EN 12266.
Available pressure classes
Pressure classes this product is rated to.
