P10B Float Pilot - Medium Pressure

Name: P10B Float Pilot - Medium Pressure
Brand: Euro Flow Control
SKU: EFC-531

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Pressure Class: 16 bar (maximum)
End connection: Threaded

Standards

Materials: AISI 304 (ASTM A276)
Other standards: A2 (ISO 3506, stainless steel fasteners), NBR (O-rings), EPDM (disc seal)

Configure your variant(manually adjust box on the right if you require a different spec)

Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Arm
Fasteners
Float
O Rings
Plate
Rod
Roller
Screw
Stop Collar
Weight

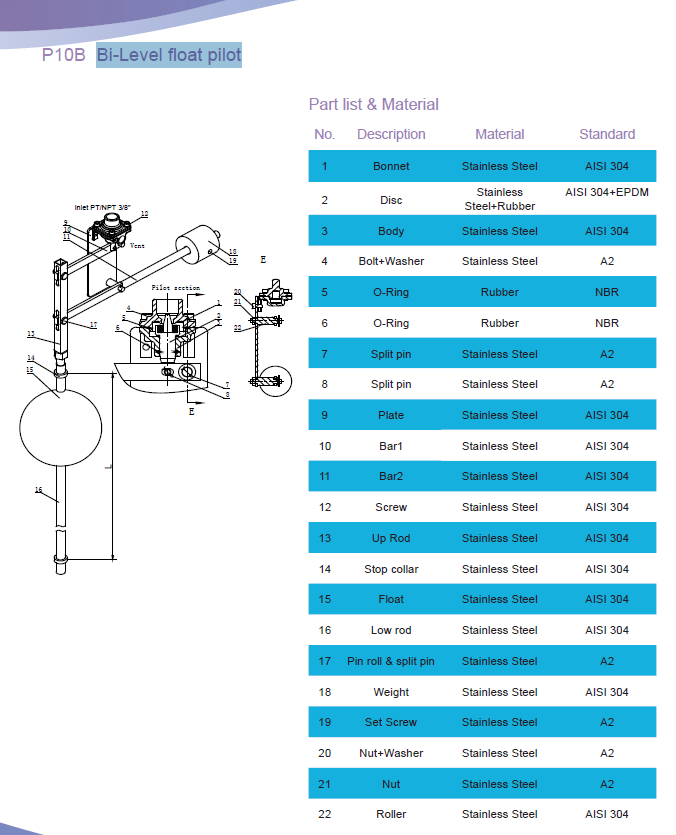

Technical drawings(1 page)

Typical applications

Service reservoirs
Break-pressure tanks
Medium-pressure level control

Approvals

ISO 9001

Features

The P10B float pilot is the medium-pressure variant of the P10 series, suitable for service reservoirs and tanks operating at higher supply pressures than the P10A can accommodate
The reinforced pilot body and balanced float design maintain accurate level control at supply pressures up to 16 bar

Description

The P10B float pilot is the medium-pressure variant of the P10 series, suitable for service reservoirs and tanks operating at higher supply pressures than the P10A can accommodate. The reinforced pilot body and balanced float design maintain accurate level control at supply pressures up to 16 bar.
