30° Oblique Type Fire Valve - SB
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN65
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Design & manufacture
- BS 5041, DIN 86211
- Inspection & test
- EN 12266
- Face to face
- Manufacturer standard
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Packing
- Gasket
- Handwheel
- Blind Coupling
- Bolt
- Chain Rope
- Fixed Coupling
- Gland
- Gland Nut
- Seal 13
- Seal
Dimensions per size(3 sizes)
| Size | L (mm) | L1 (mm) | H_close (mm) | H_open (mm) | G | d1 (mm) | C (mm) | OD (mm) | OK (mm) | Og (mm) | b (mm) | f (mm) | n_Od | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 85 | 151 | 200 | 210 | 1-1/2" | 98 | 140 | 150 | 110 | 84 | 14 | 2 | 4-18 | 6.4 kg |
| DN50 | 96 | 159 | 205 | 220 | 2" | 98 | 140 | 165 | 125 | 99 | 16 | 2 | 4-18 | 7.7 kg |
| DN65 | 116 | 180 | 235 | 255 | 2-1/2" | 126 | 150 | 185 | 145 | 118 | 16 | 2 | 4-18 | 11.4 kg |

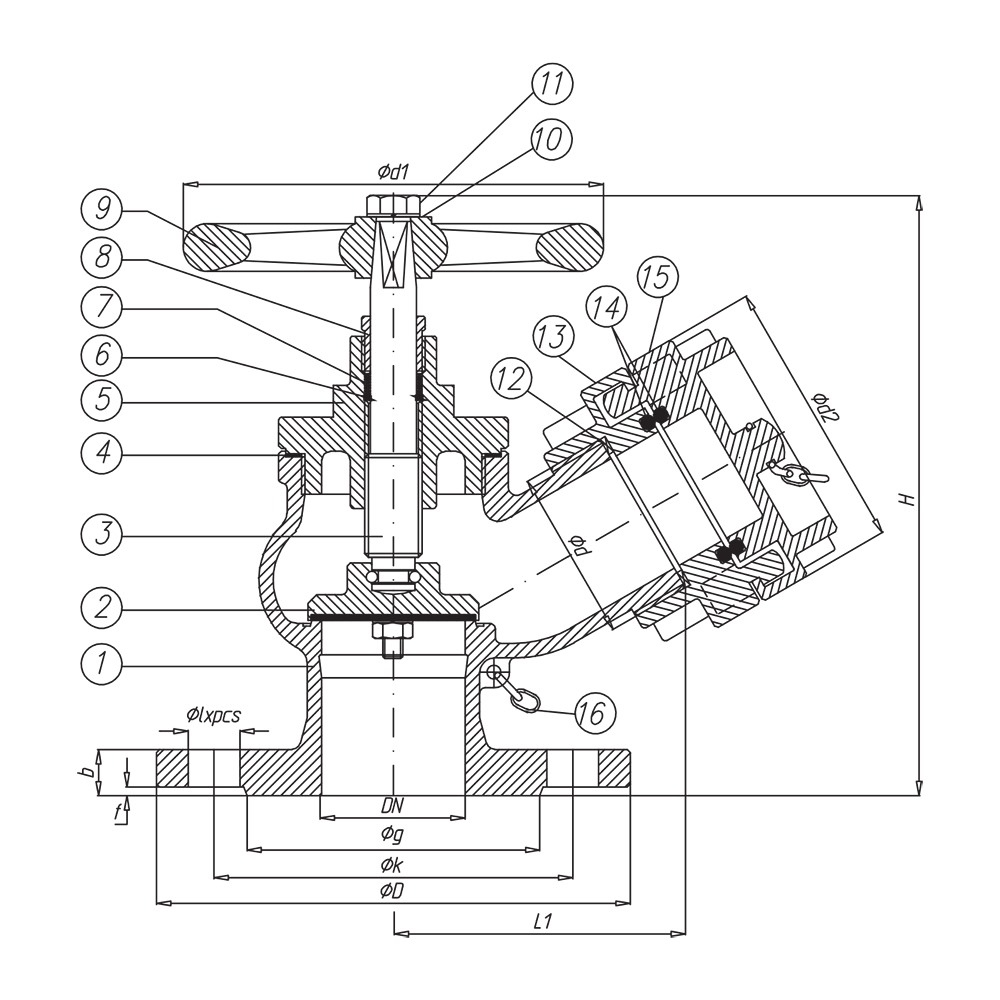

Technical drawings(1 page)
Actuation options
Features
- 30° oblique body configuration
- Screwed bonnet design
- Coupling options: Storz, BS 336, Nor, Nakajima
- Fixed and blind coupling accessories
- Chain/rope retention for blind coupling
Description
A 30° oblique-pattern fire valve with screwed bonnet, designed to BS 5041 and DIN 86211. Available in DN40 to DN65 with flanged end connections to EN 1092-3/B and PN16 pressure rating. Supplied with coupling options including Storz, BS 336, Nor, and Nakajima.
Selection notes
This fire valve is a oblique type, 30° angle type and fire hydrant valve pattern, supplied for flanged installation.
Sizes run DN40 to DN65, in PN16.
The body is offered in Bronze Rg5, CuSn10 and GS-C25, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater, Marine & Offshore, Fire Protection and Industrial Process.
Built to BS 5041, DIN 86211, Manufacturer standard, EN 12266 and Screwed Bonnet.
