Ball Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN300
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 120°C
Standards
- Face to face
- DIN 3202-F6
- Flange & end dimension
- DIN 2401-2, DIN 2501, TS 810
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Ball
- Gasket
- Bolt
Dimensions per size(10 sizes)
| Size | L (mm) | H (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|
| DN40 | 180 | 100 | 150 | 110 | 8 kg |
| DN50 | 200 | 110 | 165 | 125 | 9 kg |
| DN65 | 240 | 130 | 185 | 145 | 12 kg |
| DN80 | 260 | 145 | 200 | 160 | 14 kg |
| DN100 | 300 | 170 | 220 | 180 | 22 kg |
| DN125 | 350 | 195 | 250 | 210 | 30 kg |
| DN150 | 400 | 205 | 285 | 240 | 49 kg |
| DN200 | 500 | 260 | 340 | 295 | 98 kg |
| DN250 | 600 | 390 | 395 | 350 | 125 kg |
| DN300 | 700 | 500 | 445 | 400 | 240 kg |

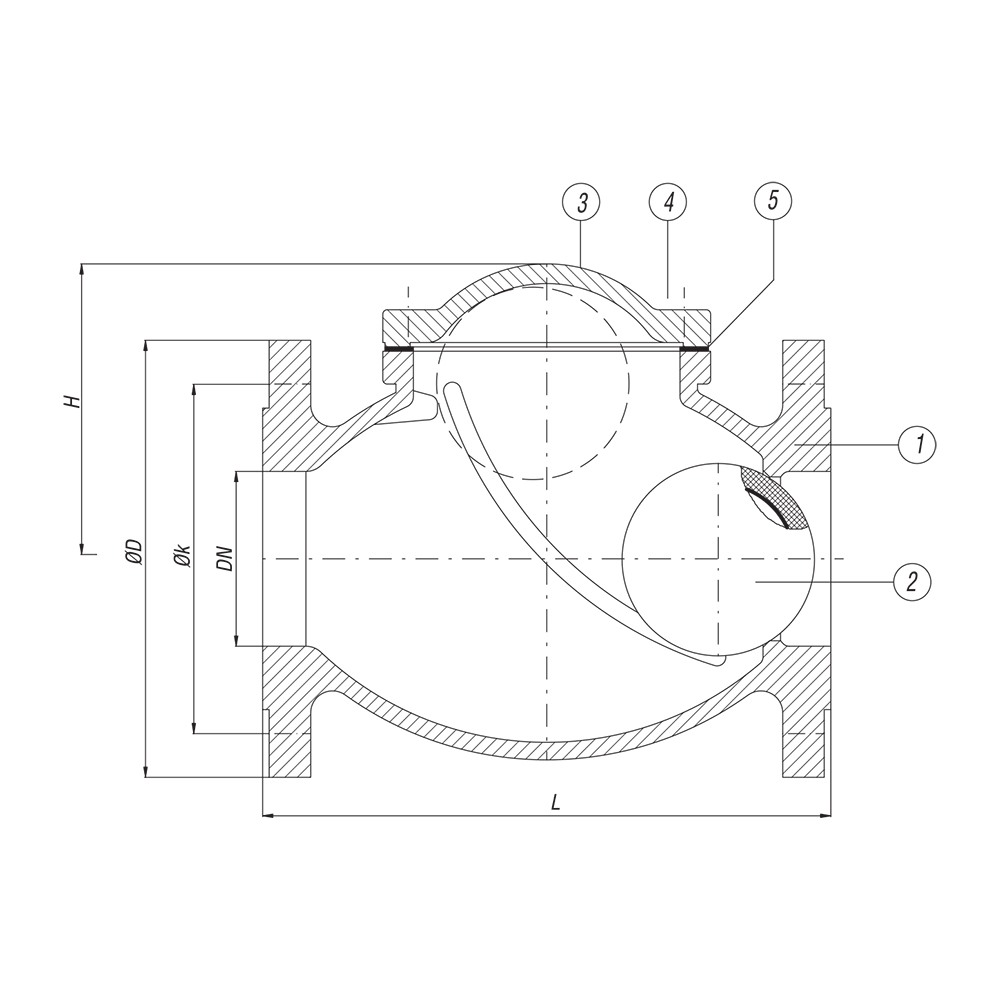

Technical drawings(1 page)
Description
A flanged ball check valve available in DN40 to DN300, rated PN10-16. The body and bonnet are manufactured from grey or ductile cast iron, with an NBR-coated cast iron or steel ball. Dimensions conform to DIN 3202-F6 and flanges to DIN 2501/TS 810.
Selection notes
This check valve is a ball pattern, supplied for flanged installation.
Sizes run DN40 to DN300, in PN10, PN16.
The body is offered in GG 25, GGG 40 and GGG 50, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 120°C.
Built to DIN 3202-F6, DIN 2401-2, DIN 2501 and TS 810.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
