Termodynamic Steam Trap

Name: Termodynamic Steam Trap
Brand: Euro Flow Control
SKU: EFC-186
Availability: InStock

Model: VTDK-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 186

Specifications

Confirmed at quote

Size Range: DN15-DN25
Pressure Class: PN16
Standards: DIN 3357, DIN EN 1092, ISO 228/1
End connection: Threaded (ISO 228/1)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15 DN20 DN25

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
seat
other.cover gasket

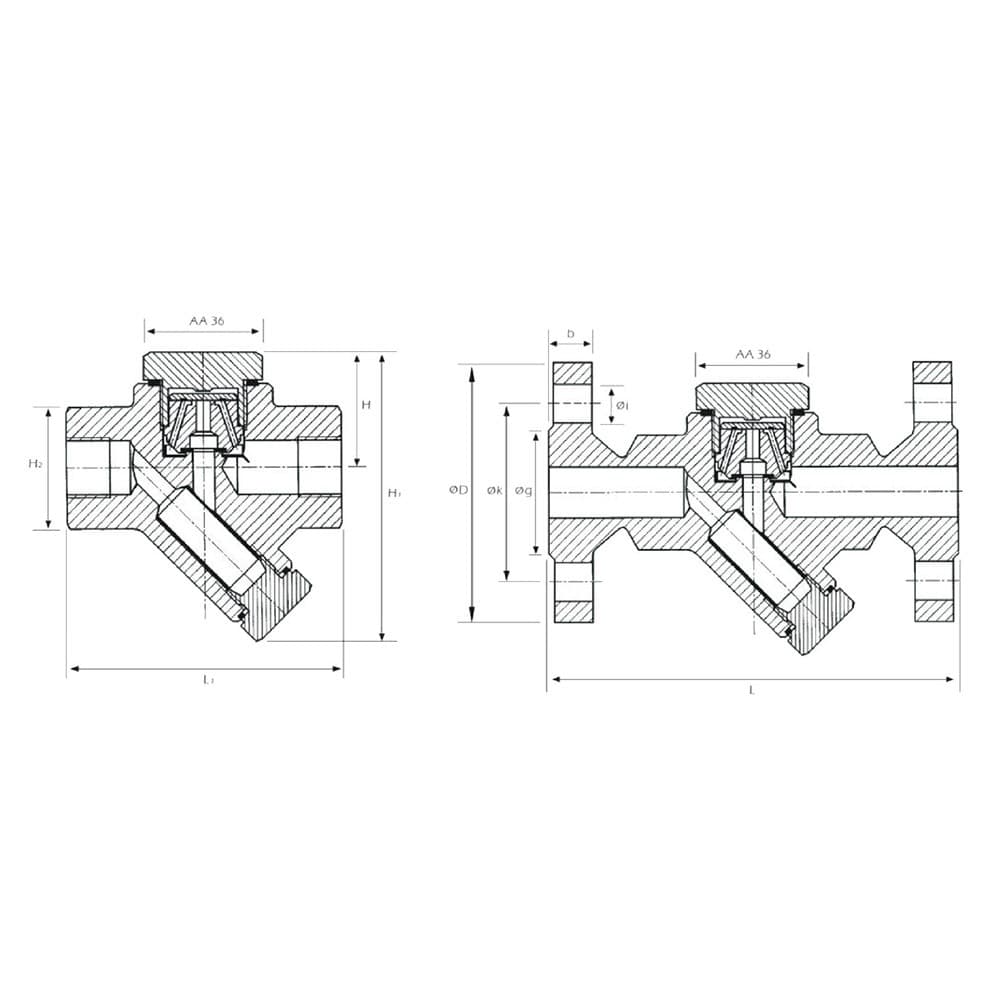

Dimensions per size(3 sizes)

Size	L-L1	H-H1-H2	D	b	k	g	i	Weight
DN15	150-95 mm	40-100-42 mm	95 mm	16 mm	65 mm	45 mm	14 mm	—
DN20	150-95 mm	40-100-42 mm	105 mm	18 mm	75 mm	58 mm	14 mm	—
DN25	160-95 mm	40-100-42 mm	115 mm	18 mm	85 mm	68 mm	14 mm	—

Description

A thermodynamic steam trap with threaded end connections rated at PN16. The body is constructed from forged steel and internal components including the disc and seat are stainless steel. Available in DN15, DN20, and DN25 sizes conforming to ISO 228/1 dimensional standard.
