Threaded Needle Valves
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- 1/8"-2"
- Pressure Class
- PN 0/CLASS 1500
- Standards
- EN 10226-1, ANSI-B16.11, CLASS 150, CLASS 1500
- End connection
- Threaded EN 10226-1 / NPT Threaded ANSI-B16.11
- Operating temperature
- Min. -60°C Max. +500°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- stem
- packing
- handwheel
- other.nut
- other.packing bush
- other.packing nut
- other.washer

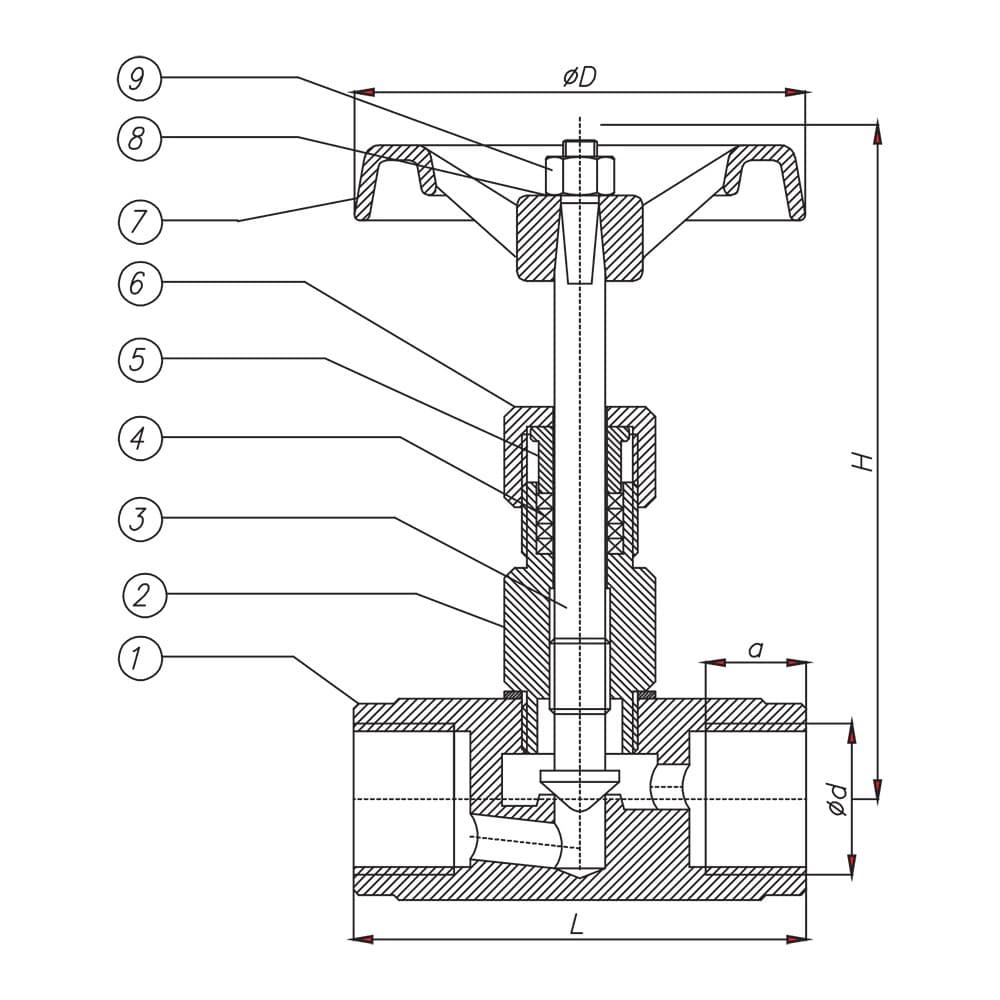

Dimensions per size(9 sizes)
| Size | Od | a | L | H | OD | Weight |
|---|---|---|---|---|---|---|
| DN4 | 1/8" inch | 11 mm | 50 mm | 85 mm | 60 mm | 0.04 kg |
| DN6 | 1/4" inch | 11 mm | 50 mm | 85 mm | 60 mm | 0.04 kg |
| DN10 | 3/8" inch | 12 mm | 55 mm | 95 mm | 60 mm | 0.5 kg |
| DN15 | 1/2" inch | 14 mm | 65 mm | 112 mm | 75 mm | 0.1 kg |
| DN20 | 3/4" inch | 17 mm | 75 mm | 122 mm | 75 mm | 1.05 kg |
| DN25 | 1" inch | 20 mm | 90 mm | 146 mm | 90 mm | 2.45 kg |
| DN32 | 1 1/4" inch | 22 mm | 95 mm | 173 mm | 100 mm | 3.2 kg |
| DN40 | 1 1/2" inch | 25 mm | 100 mm | 192 mm | 125 mm | 4.35 kg |
| DN50 | 2" inch | 28 mm | 112 mm | 216 mm | 125 mm | 7.3 kg |
Actuation options
Description
Threaded needle valves available in size range 1/8" to 2", rated from PN 0-250 / CLASS 150 to CLASS 1500. Designed for operation between -60°C and +500°C. End connections conform to EN 10226-1 (BSP) and ANSI-B16.11 (NPT) threading standards.
Smart find
Searches our product catalogue using your spec. Drop a PDF — or multiple PDFs at once — paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.Related Others
